Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | A6824 |
| Part Number | 9199-00090 |
| Manufacturer | Emerson |
| Product Series | CSI 6500 / AMS Machinery Health Monitor |
| Product Type | Modbus Communication Module |
| Primary Function | Machinery monitoring data communication gateway |
| Rack Format | 6 HP plug-in module |
| Communication Protocol | Modbus RTU / Modbus TCP |
| Serial Interface | RS-485 communication support |
| Rack Compatibility | CSI 6500 / A6000 monitoring racks |
| Mounting | 19-inch rack system |
| Data Source | CSI 6500 monitoring modules |
| External Connection | DCS, SCADA, plant monitoring systems |
| Typical Applications | Turbines, compressors, pumps, rotating machinery |
| Operating Role | Monitoring data aggregation and transmission |
Application Scenarios & Pain Points
A turbine or compressor can continue running while operators lose access to machinery condition data. That situation creates a maintenance blind spot—especially during abnormal vibration events or equipment degradation.
Typical applications:
- Power Generation: Used with turbine monitoring systems to transfer vibration, speed, and mechanical condition information into plant control networks.
- Oil & Gas Facilities: Supports compressor and pump protection systems where continuous machinery health data is required.
- Petrochemical Plants: Provides communication between CSI 6500 monitoring racks and supervisory systems.
- Heavy Industrial Equipment: Applied on rotating assets requiring centralized condition monitoring.
Field note: A refinery experienced missing machinery health values on the control room interface while local rack indicators remained normal. Investigation found the communication path had failed rather than the protection modules themselves. Replacing the A6824 module and verifying Modbus addressing restored remote monitoring.

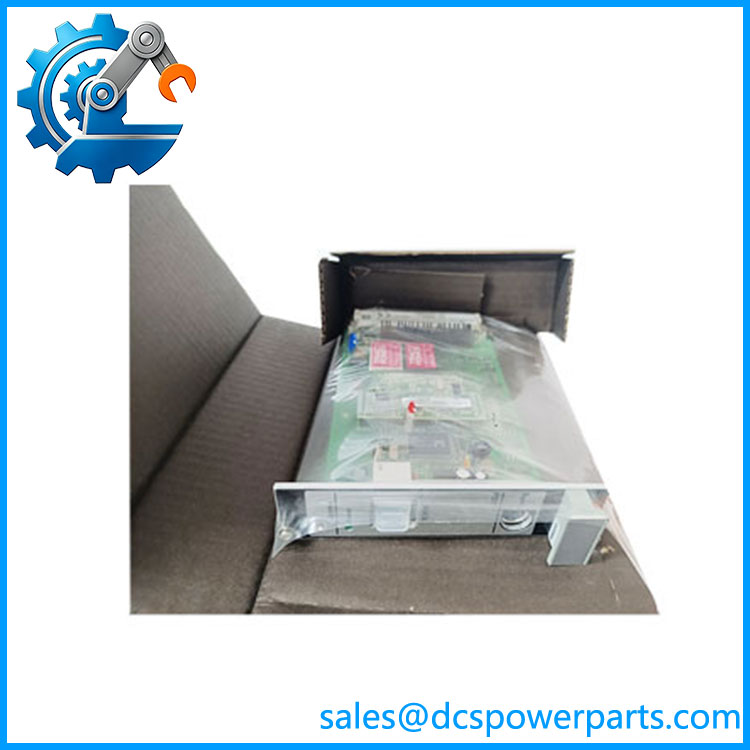

A6824 9199-00090
Related Products
- Emerson A6824R 9199-00098 — Redundant-capable version of the A6824 communication module. Used where communication availability requirements justify a redundant arrangement.
- Emerson A6560 9199-00031 — Machinery Health processor module used for processing monitoring signals before communication transfer.
- Emerson A6510 — Machinery Health signal input module that acquires vibration-related monitoring data for CSI 6500 systems.
- Emerson A6110 9199-00001 — Shaft relative vibration monitoring module for turbine and rotating equipment protection applications.
- Emerson A6120 9199-00002 — Seismic vibration monitoring module for casing vibration measurement.
- Emerson A6210 9199-00003 — Thrust position and differential expansion monitoring module for axial movement protection.
- Emerson A6312 9199-00025 — Speed and key-phase monitoring module used for rotating speed measurement.
- Emerson A6740 9199-00035 — Relay output module providing alarm and trip relay interface functions.
The Engineer’s Guide: Field Pitfalls to Avoid
⚠️ Incorrect Modbus Mapping After Replacement
A new communication module may appear online while transmitting incorrect register data.
How to avoid: Compare Modbus register maps, slave address settings, baud rate, parity, and existing DCS database configuration.
⚠️ Firmware and Rack Configuration Differences
A replacement A6824 may not communicate correctly if paired with incompatible CSI 6500 hardware revisions.
How to avoid: Record module firmware, rack type, installed monitoring modules, and communication settings before removal.
⚠️ Wrong Module Slot Installation
Rack modules may fit physically but require specific slot assignments.
How to avoid: Confirm the original chassis layout and verify backplane connectors are clean with no oxidation or damaged contacts.
Frequently Asked Questions (FAQ)
What is the main function of the Emerson A6824 9199-00090?
The A6824 is a Modbus communication module for CSI 6500 Machinery Health Monitor systems. It collects monitoring data from installed rack modules and transfers information to external control or monitoring systems.
Is the a vibration monitoring module?
No. The does not directly connect to vibration sensors. Sensor signals are processed by dedicated monitoring modules, while the handles communication output.
Can the replace an A6824R module?
Not directly. The A6824R includes redundancy-related features, while the standard is intended for non-redundant configurations. System architecture must be checked before substitution.
Which systems use the Emerson ?
The module is primarily used in Emerson CSI 6500 and related AMS Machinery Health Monitor rack systems.
Why does the DCS stop receiving machinery data after replacement?
Possible causes include:
- Incorrect Modbus address
- Wrong baud rate or serial settings
- Ethernet configuration mismatch
- Incorrect register mapping
- Firmware compatibility issues
What should be checked before purchasing an 9199-00090?
Recommended checks:
- Exact part number
- CSI 6500 rack model
- Existing communication method
- Modbus configuration
- Firmware revision
- Installed monitoring modules
Is a refurbished Emerson suitable for machinery monitoring service?
A tested refurbished unit can be suitable when it passes communication testing, rack interface checks, Modbus verification, and compatibility review with the installed CSI 6500 system.
