Pacific Scientific 6410-001-N-N-N | 75 VDC Stepper Drive | Motion Control Replacement
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 6410-001-N-N-N |
| Manufacturer | Pacific Scientific |
| Product Family | 6410 Stepper Drive |
| Drive Type | Two-phase bipolar chopper |
| Motor Type | Two-phase stepper motor |
| DC Bus Voltage | 24–75 VDC |
| RMS Phase Current | 5 A |
| Peak Phase Current | 7.1 A |
| Maximum Step Input Frequency | Up to 2.0 MHz |
| Minimum Step Pulse | 250 ns |
| Chopper Frequency | 20 kHz |
| Direction Setup Time | 50 µs |
| Heat Sink | None supplied |
| Cover | None supplied |
| Connector Kit | None supplied |
| Dimensions | Approx. 1.56 × 4.13 × 3.25 in. |
| Weight | Approx. 1 lb |
The 6410-001-N-N-N uses a bipolar chopper architecture and provides selectable motor phase-current settings. Available technical records also identify Idle Current Reduction and Digital Electronic Damping functions, along with a step-input filter intended to reject short noise pulses.
One procurement database incorrectly lists the drive as a 100 VDC unit. That conflicts with the more detailed 6410-series data showing a 24–75 VDC operating range, so the 100 VDC figure should not be used for engineering selection.
Product Introduction
The Pacific Scientific 6410-001-N-N-N is a 6410 Series stepper motor drive intended to convert step-and-direction commands into controlled winding current for two-phase stepper motors. Its 24–75 VDC bus and 5 A RMS phase rating place it in the low-voltage industrial motion-control category rather than conventional AC servo-drive equipment.
The drive is particularly relevant to legacy machinery where the original motion controller, motor, and drive parameters were designed as a matched system. The standard N-N-N configuration does not include a cover, heat sink, or connector kit, so mechanical mounting and thermal management need to be considered when replacing a failed unit.

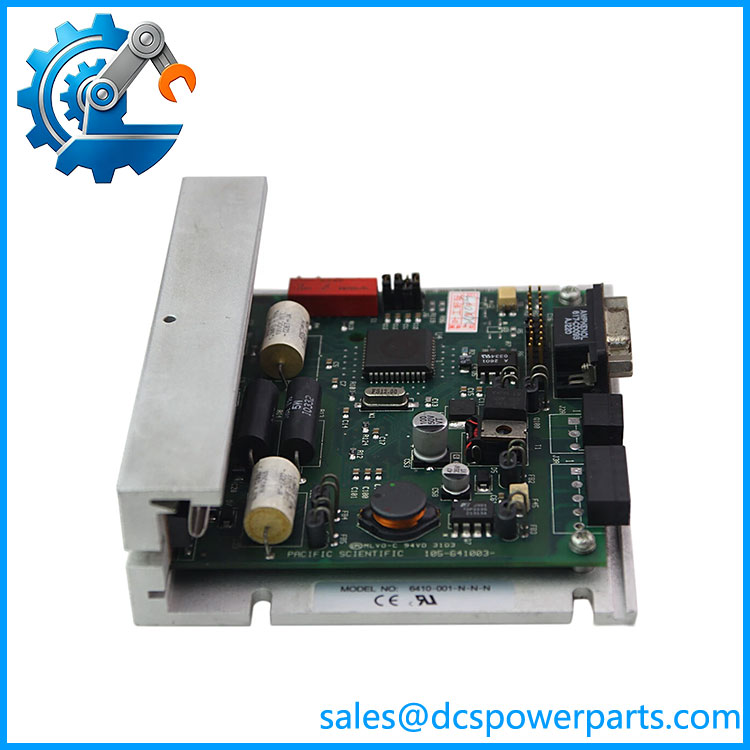

6410-001-N-N-N
Application Scenarios & Field Pitfalls — Engineer’s Perspective
Engineering Pain Point
A stepper drive can appear functional while producing poor positioning because of incorrect current settings, inadequate DC-bus regulation, motor winding mismatch, or thermal limitations. Replacing the drive with a similar-looking stepper controller without matching these parameters can introduce missed steps or excessive motor heating.
Typical Applications
- Packaging machinery — indexing, feed mechanisms, and synchronized positioning axes.
- Robotics and automation equipment — compact stepper-controlled positioning mechanisms.
- Labeling machinery — controlled feed and indexing applications.
- Material-handling equipment — conveyor indexing and small positioning axes.
- Legacy 6000 Series motion systems — replacement of an installed 6410 drive where the original motor and controller remain in service.
Technical Pitfalls to Avoid
- Do not substitute by voltage alone. The 24–75 VDC bus rating is only one part of the selection. Motor phase current, winding configuration, step resolution, acceleration profile, and controller pulse characteristics must also match.
- Account for thermal installation. The standard N-N-N configuration does not include a heat sink. Available 6410-series information gives a maximum chassis temperature around 60°C and recommends appropriate heat-sinking or cooling-plate arrangements for thermal control.
- Do not confuse the part with a PLC or process controller. A few current listings incorrectly describe 6410-001-N-N-N as an advanced process-control module with Modbus or DeviceNet. That description conflicts with multiple independent records identifying it as a Pacific Scientific 6410 stepper drive.
- Check the complete suffix. The 6410 family has numerous configurations such as 6410-001-C-N-K, 6410-001-N-N-K, and 6410-031-N-N-N. The letters identify configuration options, so a physically similar 6410 is not automatically equivalent.
Related Products
- 6410-001-N-N-K — Same 6410-001 power-level family with a different connector-kit configuration.
- 6410-001-C-N-K — 6410-001 variant with different configuration options; verify cover, heat-sink, and connector requirements.
- 6410-001-C-N-N — Alternate 6410-001 configuration without the same option combination.
- 6410-031-N-N-N — Related 6410-series stepper drive with a different drive configuration.
- 6415-001-C-N-K — Related Pacific Scientific stepper-drive family for applications requiring a different 6415 configuration.
- 6440-001-K-N — Another Pacific Scientific 6000-series motion-control drive configuration.
- 6445-001-K-N — Related 6000-series stepper-drive model.
- 6435-001-K-N — Additional Pacific Scientific motion-control drive in the same broader product family.
Procurement Note
For replacement purchasing, specify the complete Pacific Scientific 6410-001-N-N-N number rather than ordering simply by “6410 stepper drive.” Confirm the motor’s rated phase current, winding arrangement, required step resolution, controller pulse output, DC-bus voltage, and thermal mounting arrangement.
For a used or surplus unit, inspect the power terminals, control connector area, PCB condition, mounting surfaces, and evidence of thermal stress. A bench power-up alone does not establish compatibility with the original motor or prove that the drive can handle the application’s acceleration and duty cycle.
