GE 531X121PCRALG1 Product Description
Product Overview
GE 531X121PCRALG1 is a Power Connection Board (Power Connect Card) for the GE 531X / DC300 drive family. It is used to provide the electrical power-connection interface within compatible GE drive systems. Multiple industrial automation references identify the part specifically as a DC300 Power Connection Board.
The 531X121PCRALG1 is a legacy GE drive-control component and is commonly encountered in maintenance and retrofit applications involving older DC300 / 531X series drives.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | General Electric (GE) |
| Part Number | 531X121PCRALG1 |
| Series | 531X Boards |
| Product Type | Power Connection Board / Power Connect Card |
| Drive Family | GE DC300 / 531X |
| Board Function | Power connection/interface |
| Voltage Range | 190–500 VAC |
| Revision / Configuration | G1 |
| Application | Industrial AC/DC drive systems |
| Installation | Internal drive assembly |
| Status | Legacy / obsolete drive hardware |
The 531X121PCRALG1 is explicitly identified as a Power Connection Board, and technical listings specify a 190–500 V operating range for the G1 version.
Main Features
Power Connection Interface
The primary function of the 531X121PCRALG1 is to provide the power connection interface within compatible GE drive equipment. It forms part of the drive’s internal electrical architecture rather than functioning as a standalone PLC or analog I/O module.

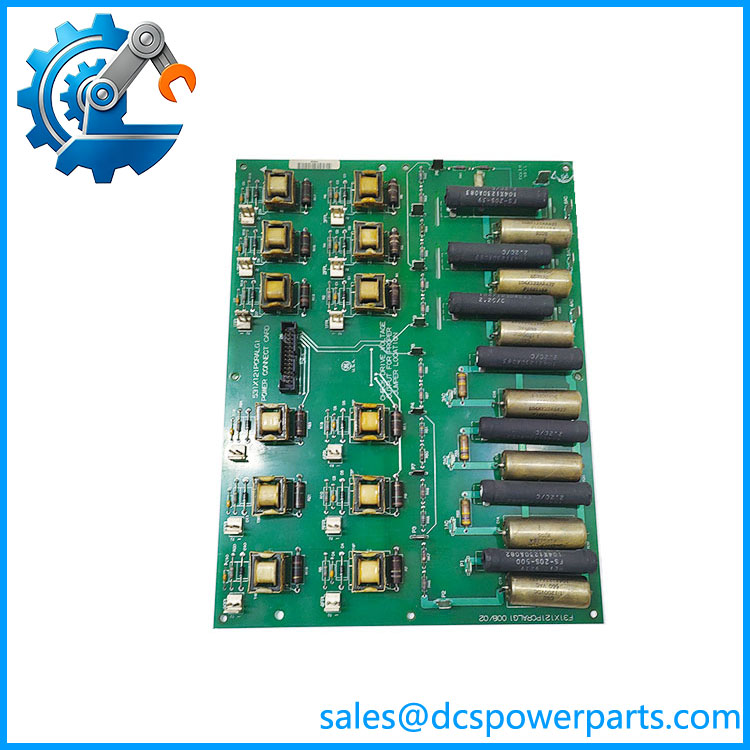

531X121PCRALG1
DC300 Drive Compatibility
The board is associated with the GE DC300 drive family. One product reference describes it directly as “POWER CONNECT CARD DC300.”
This makes the board particularly relevant for maintenance of legacy GE drive installations where replacing the complete drive is undesirable or unnecessary.
190–500 V Configuration
The G1 configuration is identified with a 190–500 V voltage range. This parameter is particularly important when selecting a replacement because other 531X power-connection-board variants may have different electrical configurations.
Service and Replacement
The 531X121PCRALG1 is used as a replacement/renewal component for compatible original equipment power-connection boards. Technical references describe drive diagnostic functions that can assist in identifying defective or deteriorating components before replacement.
Application Fields
Industrial Motor Drives
The board can be used in legacy GE drive systems controlling industrial motors, pumps, fans, conveyors and other motor-driven machinery.
Manufacturing Equipment
Older manufacturing lines using GE DC300 drives may require the 531X121PCRALG1 for drive maintenance and continued operation.
Process Industries
The board can be found in drive applications used for pumps, blowers, compressors and material-handling equipment in process plants.
Legacy Automation Systems
Because the 531X/DC300 platform is a mature product family, the 531X121PCRALG1 is particularly useful for maintenance, repair and retrofit of existing installations.
Related GE 531X Products
- 531X121PCRAE — Power Connection Card family.
- 531X121PCRAG — GE Power Connect Card.
- 531X121PCRAH — VA-4 Power Connect Card.
- 531X121PCRAK — VA-4 Power Connect Card.
- 531X121PCRAL — GE Power Connect Card family.
- 531X111PSHA series — GE MFC/power-supply boards.
- 531X124MSDA — GE MFC suppression unit.
- 531X132APGAC — GE application card.
