Description

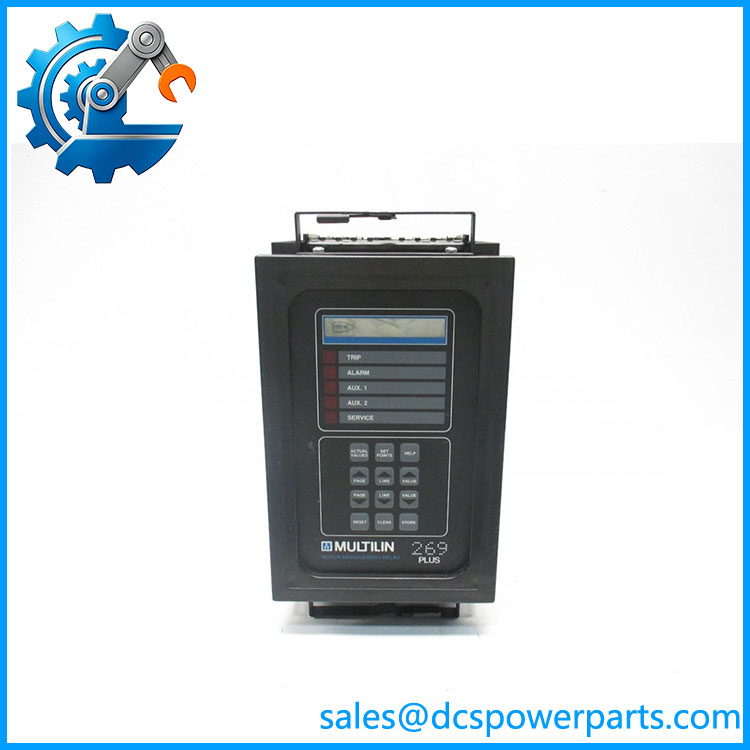

GE Multilin 269PLUS-D/O-111-100P-HI Product Description
Product Overview
GE Multilin 269PLUS-D/O-111-100P-HI is a microprocessor-based motor protection and management relay designed for comprehensive protection, monitoring, and control of three-phase AC motors in industrial applications. As part of the GE Multilin 269 Plus Motor Management Relay family, the GE Multilin 269PLUS-D/O-111-100P-HI integrates advanced thermal modeling, current protection, motor condition monitoring, and control functions to safeguard critical motor-driven equipment. It is widely applied in industrial facilities where reliable motor operation and reduced unplanned downtime are essential.
The 269PLUS-D/O-111-100P-HI GE Multilin relay continuously monitors motor electrical and thermal conditions, including overload status, phase current imbalance, ground fault conditions, locked rotor events, and winding temperature. Through intelligent protection algorithms, the relay evaluates operating conditions and initiates alarm or trip actions before abnormal conditions cause severe motor damage. The device supports RTD temperature monitoring and provides detailed operational information for maintenance and diagnostic purposes.
Designed for integration into industrial power distribution and automation systems, GE Multilin 269PLUS-D/O-111-100P-HI provides reliable protection for motors used in pumps, compressors, fans, conveyors, and other rotating machinery. Its panel-mounted drawout design simplifies installation and maintenance, making it a practical solution for upgrading and maintaining existing motor protection systems in power plants, oil and gas facilities, chemical plants, and manufacturing environments.
Technical Specifications
| Parameter | Description |
|---|---|
| Product Model | 269PLUS-D/O-111-100P-HI |
| Manufacturer | GE Multilin (General Electric) |
| Product Type | Motor Protection / Motor Management Relay |
| Product Series | GE Multilin 269 Plus Motor Protection System |
| Application | Three-Phase AC Motor Protection |
| Protection Functions | Overload, Overcurrent, Phase Loss, Phase Imbalance, Ground Fault, Locked Rotor |
| Thermal Protection | Motor Thermal Model with RTD Temperature Monitoring |
| CT Input Rating | Up to 100 A (configuration dependent) |
| Control Power Supply | 90–300 VDC / 70–265 VAC, 50/60 Hz |
| Communication Interface | RS-485 Modbus RTU (optional communication expansion) |
| Relay Outputs | Trip, Alarm, Auxiliary Control Outputs |
| RTD Inputs | Supports Copper, Nickel, Platinum RTD Sensors |
| Display Interface | Front Panel LED/LCD Operator Interface |
| Installation Method | Panel Mount Drawout Design |
| Operating Temperature | -25°C to +60°C |
| Humidity | Up to 95% RH, non-condensing |
| Protection Application | Industrial Motor Management and Protection |
Main Features and Advantages
Comprehensive Motor Protection Functions
The GE Multilin 269PLUS-D/O-111-100P-HI provides complete protection for medium and low-voltage industrial motors. It combines electrical protection and thermal monitoring functions in a single intelligent relay, allowing operators to protect motors against overload, excessive current, phase abnormalities, and mechanical stress conditions. This reduces the risk of motor failure and improves equipment availability.
Advanced Thermal Modeling and Temperature Monitoring
The 269PLUS-D/O-111-100P-HI GE Multilin uses motor thermal modeling technology to calculate motor heating conditions based on operating current and temperature inputs. With RTD support, the relay can directly monitor stator winding and bearing temperatures, providing accurate protection against overheating and improving preventive maintenance capabilities.
269PLUS-DO-111-100P-HI
Intelligent Fault Detection and Diagnostics
The relay continuously analyzes motor operating parameters and identifies abnormal conditions such as locked rotor, excessive starting current, phase imbalance, and ground faults. The built-in diagnostic capability helps maintenance personnel quickly locate problems, reduce troubleshooting time, and improve plant operational efficiency.
Flexible Communication and Automation Integration
The GE Multilin 269PLUS-D/O-111-100P-HI supports integration with industrial control systems through communication interfaces such as RS-485 Modbus RTU. It can exchange operating data, alarm information, and protection status with PLC, DCS, and SCADA systems, enabling centralized motor monitoring and management.
Convenient Installation and Maintenance
The drawout panel design of the 269PLUS-D/O-111-100P-HI allows easier replacement and servicing without extensive system modification. This design reduces maintenance time and supports efficient lifecycle management of installed motor protection equipment.
Application Fields
GE Multilin 269PLUS-D/O-111-100P-HI is widely used in industrial motor protection applications across power generation, oil and gas, chemical processing, metallurgy, mining, and manufacturing industries. In power plants, it provides protection and monitoring for critical motors driving pumps, cooling systems, fans, and auxiliary equipment, helping maintain stable operation of plant infrastructure.
In oil and gas and petrochemical facilities, the 269PLUS-D/O-111-100P-HI GE Multilin is commonly applied to protect motors used in compressors, pumps, blowers, and process equipment. These applications require reliable protection against overloads, overheating, and electrical faults because unexpected motor failure can interrupt production processes.
In chemical plants, water treatment facilities, and industrial manufacturing lines, the relay supports continuous monitoring of motor operating conditions and improves equipment reliability. It enables maintenance teams to implement condition-based maintenance strategies by providing valuable information about motor temperature, current loading, and fault events.
For automation environments using PLC, DCS, and SCADA platforms, GE Multilin 269PLUS-D/O-111-100P-HI provides an effective motor management solution by combining protection, measurement, communication, and control functions in one compact device.
