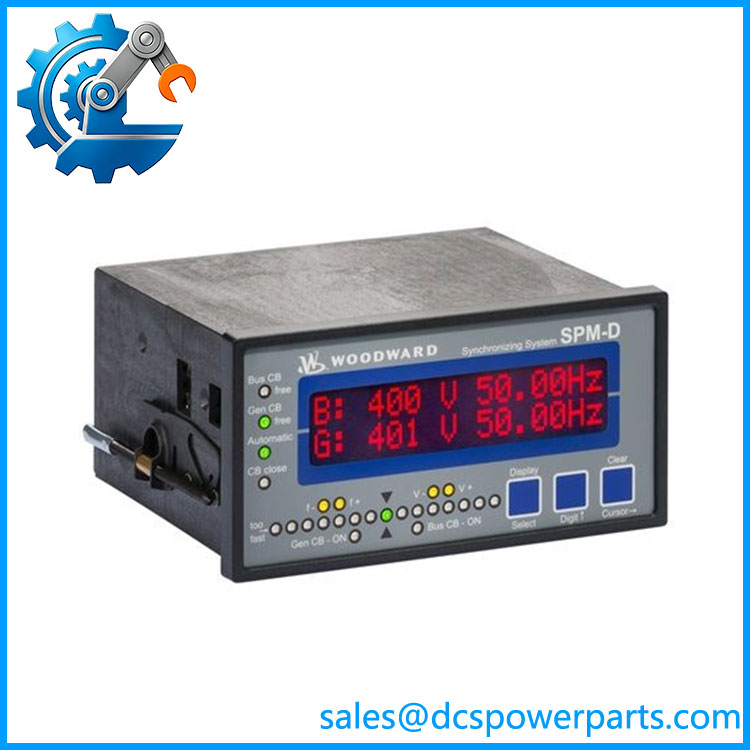

Woodward 8440-2173 | SPM-D2-10B/PSY5-FU-D-W Synchronizer
Product Introduction
Generator paralleling problems often appear at the breaker rather than inside the engine controller: phase relationship, voltage difference, frequency slip, breaker timing, or an incorrect synchronization sequence can prevent a generator from being safely connected to a live bus. The Woodward 8440-2173 addresses this part of the control architecture as an SPM-D2 synchronizer configured for PSY5 operation and a wide-range auxiliary supply. Woodward identifies it specifically as SPM-D2-10B/PSY5-FU-D-W.
The wide-range supply version accepts 90–250 VAC or 120–375 VDC, making the 8440-2173 useful where the control-panel auxiliary supply differs from a conventional 24 VDC installation. Woodward also documents the SPM-D2 PSY version for applications requiring two parameter sets, allowing different generator/breaker synchronization conditions to be handled within the same synchronizer architecture.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 8440-2173 |
| Woodward Designation | SPM-D2-10B/PSY5-FU-D-W |
| Manufacturer | Woodward |
| Product Type | Automatic generator synchronizer / paralleling controller |
| Product Family | SPM-D2 |
| Application | Generator synchronization and circuit-breaker paralleling |
| Auxiliary Supply | 90–250 VAC |
| DC Supply Range | 120–375 VDC |
| Configuration | PSY5 / FU-D / W |
| Parameter Sets | Two parameter sets in the PSY configuration |
| Control Architecture | Microprocessor-based synchronizing controller |
| Mounting | Panel-mounted controller format |
| Documentation | Woodward Product Specification 37622; Manual 37616 |
Woodward’s own technical support specifically identifies 8440-2173 as the wide-range version of the PSY5-FU-D synchronizer. The corresponding 24 VDC version is 8440-2170, so these two part numbers should not be treated as interchangeable simply because their functional descriptions are similar.
8440-2173
Major Features and Engineering Advantages
1. Wide-range auxiliary power
The 8440-2173 is intended for control systems where the available auxiliary supply may be either AC or DC. Its documented range of 90–250 VAC / 120–375 VDC is a major configuration distinction from the 24 VDC -10B/PSY5-FU-D, part number 8440-2170.
For retrofit work, this matters more than the nominal product family. An engineer replacing an older synchronizer should check the actual panel supply before selecting between 8440-2170 and 8440-2173.
2. Automatic generator synchronization
The family is designed to supervise synchronization before a generator circuit breaker is closed. In practical terms, the controller must establish the required relationship between generator and bus voltage, frequency, and phase before issuing the breaker-closing command.
This makes the unit part of the generator protection and paralleling sequence rather than simply an indication device.
3. PSY configuration with parameter-set functionality
Woodward identifies the PSY versions as supporting two parameter sets. Its technical-support documentation describes a use case in which one can be used to parallel two independent circuit breakers by selecting parameter set A or B. Parameter set B can be activated through discrete input 6.
That feature can be useful in generator systems where the same synchronizer must accommodate different breaker characteristics or synchronization conditions.
4. Useful for legacy SPM-D replacement projects
Woodward’s documentation provides a direct part-number mapping from older SPM-D products. For 8440-2173, the documented predecessor is 8440-1873, identified as SPM-D10B/PSY5-FU-D-W.
This is valuable during maintenance planning, but a predecessor number should not automatically be interpreted as a plug-and-play replacement. Wiring, configuration parameters, firmware, sensing ranges, and commissioning procedures still need to be checked against the existing installation.
Application Scenarios & Field Pain Points
Generator Set Paralleling
The primary application is synchronization before closing a generator circuit breaker onto a live bus. This is common in standby generation, prime-power installations, marine power systems, and industrial generating plants.
Multi-Generator Power Systems
Where several generator sets operate in parallel, synchronizer configuration becomes closely tied to breaker timing and the overall power-management sequence. Incorrect parameterization can produce nuisance synchronization failures even when the hardware itself is healthy.
Retrofit of Older SPM-D Systems
The 8440-2173 provides a documented migration path from SPM-D10B/-W, 8440-1873, to the corresponding version.
Industrial and Marine Switchgear
The unit can be integrated into generator switchboards where automatic synchronization is required before breaker closure. During replacement, engineers should compare the existing voltage-sensing arrangement and breaker-control wiring rather than selecting solely by the old part number.
Field note: The most common procurement mistake here is treating every unit as the same device. The part numbers encode meaningful functional differences. 8440-2173 is not simply a generic ; it is specifically the -W wide-range version.
Related Products
- 8440-2170 — -10B/, the corresponding 24 VDC power-supply version.
- 8440-1873 B/, documented predecessor to 8440-2173.
- 8440-2164 — -1040B, 400 VAC sensing configuration.
- 8440-2166 — -1010B, 110 VAC sensing configuration.
- 8440-2171 — -1040B/X with analog speed/voltage bias.
- 8440-2172 — -1010B/XN with analog speed/voltage bias and wide-range supply.
- 8440-2174 — -1010B/N wide-range supply configuration.
- 8440-2175 — -1040B/N wide-range supply configuration.
- 8440-2190 — -1040B/XN with analog speed/voltage bias and wide-range supply.
These part numbers belong to different configurations; the sensing arrangement, power supply, and analog-bias options should be matched to the existing application before substitution.
Engineer’s Guide — Field Pitfalls to Avoid
1. Do not confuse 8440-2173 with 8440-2170.
Both use the -10B/ architecture, but 8440-2173 is the wide-range supply version while 8440-2170 is the 24 VDC version. Verify the panel’s actual auxiliary supply before ordering.
2. Check the complete designation, not just “.”
The family contains multiple voltage-sensing and functional configurations. A unit with a similar appearance can still be unsuitable for a particular switchgear application.
3. Verify the predecessor configuration.
For a replacement of 8440-1873, Woodward maps the olB/ to 8440-2173. That is useful evidence, but installation drawings and parameter files should still be checked before commissioning.
4. Preserve the synchronization parameters.
Do not assume the replacement will automatically reproduce the original breaker timing, voltage difference, frequency difference, slip settings, or discrete-input logic. Record the existing configuration before removing the old synchronizer.
5. Verify the nameplate and revision.
Legacy equipment can exist in different production states. For a critical replacement, request a clear nameplate photograph and confirm the complete part number, hardware revision, and configuration before accepting the unit.
6. Do not rely on generic reseller specifications.
Some secondary listings attribute additional temperature, protection, accuracy, communication, and dimensional specifications to 8440-2173. Unless those values can be tied to Woodward’s applicable Product Specification 37622 or Manual 37616, they should be treated as secondary information rather than design-basis data.
FAQ
What is Woodward 8440-2173?
Woodward 8440-2173 is the FU-D-W automatic synchronizer configured with a wide-range auxiliary power supply. Woodward places it in the synchronizer family used for generator paralleling.
What is the power supply range of 8440-2173?
The documented wide-range auxiliary supply is 90–250 VAC or 120–375 VDC. This is the key electrical distinction from tVDC /, part number 8440-2170.
Is 8440-2173 a generator controller?
It is more accurately described as a generator synchronizer/paralleling controller. Its job is associated with synchronization and breaker-paralleling functions rather than replacing a complete engine or generator management controller.
What is the predecessor of 8440-2173?
Woodward’s part-number mapping identifies 8440-1873B/, as the predecessor to /.
Can 8440-2170 replace 8440-2173?
Do not assume that. The two are closely related configurations, but 8440-2170 uses a 24 VDC supply while 8440-2173 uses the wide-range 90–250 VAC / 120–375 VDC supply. The correct selection depends on the installed control-panel power architecture.
What should be verified before purchasing a replacement?
At minimum, verify the complete Woodward part number, nameplate revision, supply voltage, voltage-sensing configuration, existing synchronization parameters, breaker-control wiring, and required parameter-set functionality. For an installed generator system, matching the part number alone is not sufficient evidence of commissioning compatibility.
Is 8440-2173 still documented by Woodward?
Yes. Woodward’s current Industrial Turbine Products Catalog lists 8440-2173FU-D-W and references Product Specification 37622 and Manual 37616.
