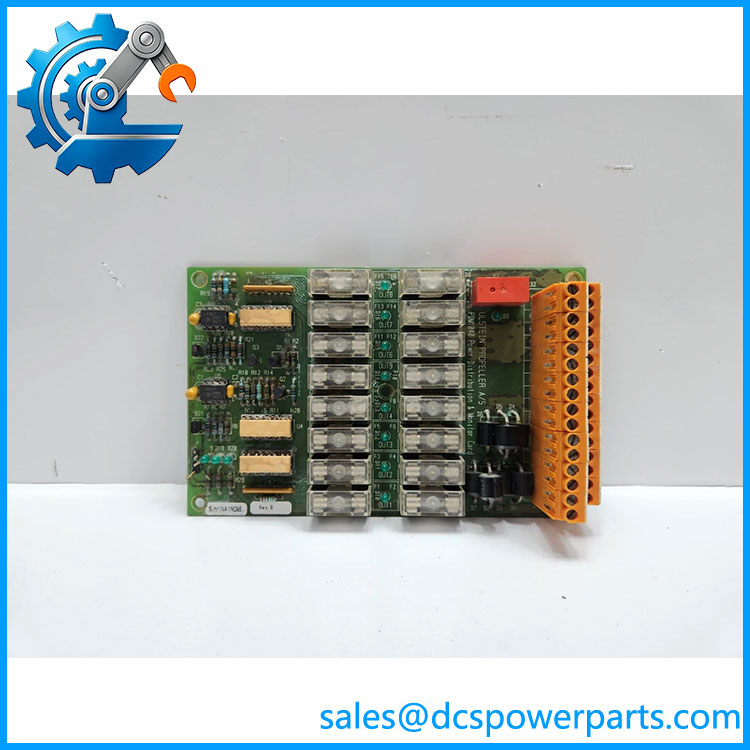

ULSTEIN Propeller PDM1040 Power Distribution & Monitor Card
Product Introduction
In a marine propulsion control cabinet, a power-distribution board is rarely just a passive connection point. It sits within a system where loss of a control supply, abnormal distribution condition, or incorrect card revision can affect the availability of propulsion-related equipment. The ULSTEIN PDM1040 is identified in marine automation records as a Power Distribution & Monitor Card, used within ULSTEIN Propeller control-system architecture.
The part is also associated with Rolls-Royce Marine and the designation RRPDM1040B. One technical spare-parts record identifies manufacturer part number 10423 Rev.19.01.02, while other records identify PDM1040 and RRPDM1040B as corresponding designations. For replacement work, the revision marking matters: do not assume every PDM1040 card is electrically interchangeable without checking the installed system documentation.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Model | PDM1040 |
| Brand | ULSTEIN Propeller |
| Associated Manufacturer | Rolls-Royce Marine |
| Product Type | Power Distribution & Monitor Card |
| Manufacturer Part Number | 10423 |
| Related Part Number | RRPDM1040B |
| Primary Function | Power distribution and monitoring |
| System Application | Marine propulsion / vessel automation |
| Equipment Category | Marine control electronics |
| Construction | PCB/card assembly |
| Revision Example | 10423 Rev.19.01.02 documented in one spare-parts record |
| Installation | Installed within the associated marine control-system architecture |
| Condition | Must be confirmed for the individual unit |
The available documentation is considerably stronger on identity and application than on detailed electrical ratings. I would not publish unsupported values for supply voltage, current capacity, monitored channels, connector pinout, temperature range, or communication protocol. Those parameters should come from the vessel-specific ULSTEIN documentation or the card’s engineering drawing rather than from generic reseller descriptions.
PDM1040
Application Scenarios & Pain Points
The practical procurement problem with the PDM1040 is identification. Marine automation systems often contain several visually similar interface and distribution cards, and the card designation alone may not tell you whether a particular revision matches the installed cabinet.
Typical applications include:
- Marine propulsion control: Power distribution and monitoring within ULSTEIN Propeller propulsion-control architecture.
- Vessel automation: Supporting electrical distribution and status monitoring within marine control equipment.
- Propeller control systems: Used as part of the electronic architecture surrounding marine propeller-control equipment.
- Legacy marine-system maintenance: Replacement of an installed when an original card becomes unavailable or fails.
Marine spare-parts records consistently classify the as a power distribution/monitoring card rather than as a general-purpose PLC I/O module.
Field note: If the failed card comes from an operating vessel, photograph both sides of the PCB before removal. Connector labels, PCB revision, component population, and handwritten maintenance markings can become important when matching a replacement.
Related Products
- ULSTEIN / 10423 — the primary identification for this power distribution and monitoring card.
- Rolls-Royce Marine RRPDM1040B — related designation associated with the assembly.
- ULSTEIN DIO1037A — digital I/O interface card used in related marine automation architectures.
- ULSTEIN PFI1038 — pulse/frequency interface card associated with the same broader control-system environment.
- ULSTEIN PIB1039A — propeller pitch indication board.
- ULSTEIN LSI1031B — lamp and switch interface card appearing in ULSTEIN marine control equipment.
- ULSTEIN 5880-PC1011 — PCB module found in ULSTEIN marine engine-control equipment.
- ULSTEIN 5880-PC1015 — another PCB module used in the marine automation product family.
These related designations are useful for system-level identification, but they are not interchangeable substitutes for . Each serves a different control or interface function.
Engineer’s Guide — Field Pitfalls to Avoid
1. Do not confuse with a generic power-supply module
The is documented specifically as a Power Distribution & Monitor Card.
Avoidance: Confirm the card’s role in the cabinet schematic before replacing it with another distribution or power-monitoring board.
2. Check the 10423 identification
One marine spare-parts record identifies the manufacturer part number as 10423, with a specific revision marking.
Avoidance: Record the complete PCB marking, including revision, before approving a replacement.
3. Do not assume RRPDM1040B means a different functional card
and RRPDM1040B are associated with the same ULSTEIN/Rolls-Royce Marine card in multiple records.
Avoidance: Compare the physical PCB, part number, revision, and system documentation rather than relying only on a shortened commercial description.
4. Do not publish or rely on unverified electrical ratings
Available commercial records provide the product identity and application but do not establish a reliable complete electrical specification.
Avoidance: Before energizing a replacement, verify supply voltage, fuse/protection arrangement, connector pinout, current ratings, and monitored circuits against the vessel’s technical documentation.
5. Watch for revision differences
A card marked may appear identical to another unit while having a different PCB revision or component population.
Avoidance: Compare the revision marking and, where possible, the engineering drawing or approved spare-parts list for the specific vessel.
6. Preserve the original wiring information
Marine control cabinets can have dense multi-pin connectors and system-specific wiring.
Avoidance: Photograph connectors and cable labels before removing the failed card. Record connector positions and cabinet location rather than relying on memory.
FAQ
What is ULSTEIN ?
The is a Power Distribution & Monitor Card used in ULSTEIN Propeller marine control-system equipment.
What is the manufacturer part number for ?
A marine spare-parts record identifies 10423 as the manufacturer part number and gives an example marking of 10423 Rev.19.01.02.
Is associated with Rolls-Royce Marine?
Yes. Current marine parts records identify the card under ULSTEIN Propeller / Rolls-Royce Marine, and is used as a related designation.
Is a PLC I/O module?
Not in the conventional sense. It is identified as a power distribution and monitoring card for marine control equipment. It should not be treated as a standard digital or analog PLC I/O module.
What systems use the ?
Available records associate it with ULSTEIN Propeller marine automation and propulsion-control systems.
Can any replace an installed ?
Not automatically. The safest approach is to match , 10423, PCB revision, connector arrangement, and vessel/system application. If the installed card has an additional revision or assembly number, that information should be included in the procurement specification.
What should I verify before purchasing ?
Request clear photographs of the front and rear of the card, nameplate/label, PCB revision, connector markings, and any additional assembly number. For marine automation equipment, those details are often more useful than a generic product description when determining whether a replacement is actually suitable.
