Description
Product Overview
TRICONEX 4352AN is a Tricon Communication Module (TCM) used to provide communication between a Tricon safety controller and external systems or other Tricon systems. It is a communications component rather than a main processor or I/O card. In a typical Tricon architecture, the main processor executes the safety application while the 4352AN handles defined external communication functions, allowing process data, diagnostics, configuration-related information, and other permitted system information to move between the safety controller and external equipment.
The TRICONEX 4352AN is particularly associated with the Tricon V10 platform. The Tricon V10 safety evaluation states that the 4352AN TCM replaced three earlier communication modules used in the V9.5.3 system. This makes the exact model important when maintaining an older installation: a generic Tricon communication card is not necessarily a valid substitute.
Available technical records describe the 4352AN as supporting fiber Ethernet and serial interfaces, with implementations including TriStation and Modbus communication. One detailed listing specifies two 100Base-FX fiber ports and four serial ports, while other records describe different port arrangements. Because hardware options and revisions can differ, the physical connectors on the installed module should be checked before procurement.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | TRICONEX / Invensys / Schneider Electric |
| Model | 4352AN |
| Product Type | Tricon Communication Module (TCM) |
| System | Tricon V10 Safety System |
| Primary Function | External and system-to-system communications |
| Communication Media | Fiber Ethernet / serial, depending on configuration |
| Ethernet | 100 Mbps fiber Ethernet reported for specific 4352AN configurations |
| Serial Interfaces | RS-232/RS-485 reported for specific configurations |
| Protocols | TriStation, Modbus and other Tricon communication services, configuration-dependent |
| Installation | Tricon chassis |
| System Architecture | Tricon fault-tolerant safety platform |
| Status Indication | Module diagnostic/status LEDs |
| Lifecycle | Legacy / installed-base support |
Important: Do not publish the port count or connector type as universal for every 4352AN without checking the exact hardware revision. One technical listing specifies 4 × RS-232/RS-485 and 2 × 100Base-FX fiber ports, while other records describe different physical interfaces.
Main Features and Advantages
Dedicated Tricon Communication Function
The 4352AN provides the communication layer between the Tricon safety controller and external equipment. This can include operator systems, engineering stations, DCS interfaces, sequence-of-events equipment, and other permitted systems.
It should not be confused with a Tricon main processor. The processor executes the safety application; the TCM provides communication services.
Tricon V10 Integration
The 4352AN is specifically documented as the TCM for the Tricon V10 architecture. The safety evaluation identifies it as the replacement for three earlier V9 communication modules.
This is important when upgrading or maintaining a legacy Tricon system because communication-module compatibility is affected by system generation, firmware, configuration software, and the communication architecture.
Fiber-Optic Communication
Specific 4352AN configurations use fiber-optic Ethernet. This provides electrical isolation between the Tricon system and the connected network and is useful where communication equipment is distributed across plant areas.
Multiple Communication Functions
Depending on the installed configuration, the module can support external communications and peer/system communication functions. Available records cite TriStation, Modbus/TCP, TCP/IP-related functions, and peer-to-peer services.
Diagnostic Monitoring
The module provides status and fault indications that help maintenance personnel determine whether the communication hardware is operating correctly. A communication failure should still be diagnosed across the complete path rather than assuming the TCM is defective.

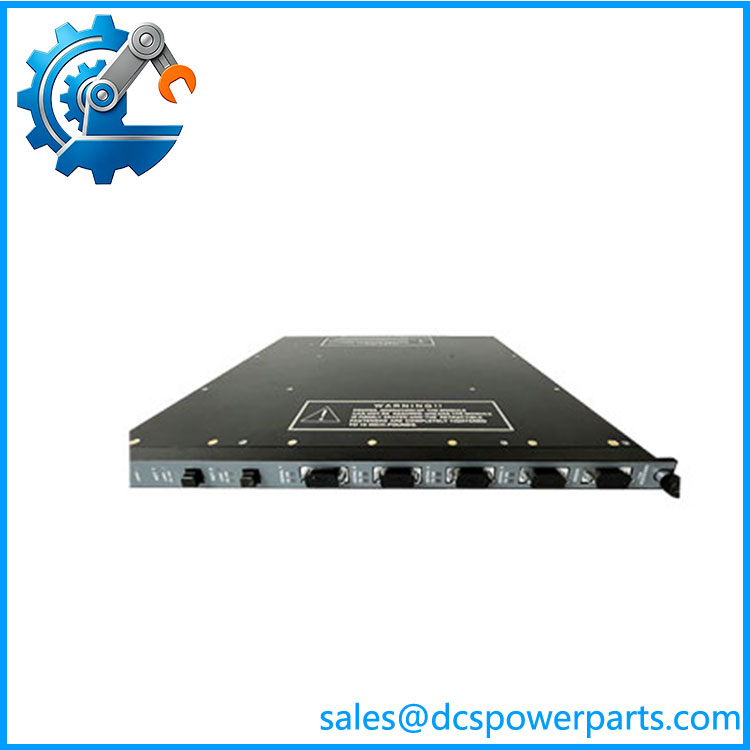

4352AN
Application Scenarios
Safety Instrumented Systems
The 4352AN is used as part of Tricon safety-system communication architecture in applications where the control system must exchange selected information with external plant systems.
Typical industries include:
- Oil and gas
- Refining
- Petrochemical
- Chemical processing
- Power generation
- Pharmaceutical processing
DCS Integration
A Tricon safety controller can exchange selected process and diagnostic information with a plant DCS through supported communication interfaces and protocols.
Engineering Workstations
Communication with Tricon engineering/configuration environments is another important function of the TCM architecture.
Peer Tricon Communication
The Tricon communication architecture also supports communication between safety-system controllers where the specific system configuration permits it.
Related Tricon Components
- 3008N — Tricon V10 Main Processor Module; executes the control application and is not interchangeable with 4352AN.
- 4351A — Main Processor associated with other Tricon/Trident architectures; not a replacement for the 4352AN.
- 3721N — Tricon analog input module; an I/O card rather than a communication module.
- 8310N / 8310N2 — Tricon power modules.
- 4200N / 4201N — Tricon fiber-optic communication cable components identified in Tricon V10 documentation.
Engineer’s Guide: Field Pitfalls
⚠️ Do Not Confuse 4352AN With 3008N
This is one of the most important distinctions.
4352AN = Communication Module
3008N = Main Processor Module
They perform completely different functions and occupy different logical roles in the Tricon architecture.
⚠️ Verify the Physical Communication Ports
Before purchasing a replacement, photograph the rear/front connector arrangement and compare it with the replacement.
A source describing one 4352AN configuration specifies:
- 2 × 100Base-FX fiber ports
- 4 × serial ports
- 62.5/125 μm fiber
but other listings describe different port configurations.
Do not assume every unit marketed as “4352AN” has identical external interfaces.
⚠️ Check Firmware and System Version
The 4352AN is closely tied to the Tricon V10 communication architecture. Firmware, TriStation software, configuration, and communication protocol settings should be checked before swapping a module.
⚠️ Preserve Communication Configuration
Before removing a failed TCM, record:
- IP configuration where applicable
- Communication protocol
- Peer configuration
- Modbus settings
- Serial parameters
- Fiber connection assignment
- System/Tricon software version
- Module revision
A hardware replacement can be electrically correct but still fail to communicate because the system configuration has not been restored correctly.
⚠️ Do Not Diagnose a Network Fault by Replacing the TCM Immediately
Check the complete path:
Tricon → TCM → fiber/serial connection → network equipment → DCS/engineering station
A bad fiber, connector, transceiver, network switch, configuration parameter, or external device can create the same symptom as a failed communication module.
Frequently Asked Questions
What is TRICONEX 4352AN?
4352AN is a Tricon Communication Module (TCM) used in the Tricon V10 safety-system architecture.
Is 4352AN a Tricon processor?
No. It is a communication module. The main processor performs the application execution and safety-control functions.
What system is 4352AN used with?
The strongest documentation associates the 4352AN with Tricon V10.
Does 4352AN support Ethernet?
Yes, specific 4352AN configurations support fiber Ethernet. Available records describe 100Base-FX interfaces.
Does 4352AN support Modbus?
Available technical records identify Modbus support, including Modbus/TCP in applicable configurations. The exact protocol availability should be checked against the installed system configuration.
What should I request when purchasing a replacement?
For a used or refurbished TRICONEX 4352AN, request:
- Clear front and rear photographs.
- Exact 4352AN model marking.
- Complete part number, serial number, and revision.
- Connector/port configuration.
- Firmware information.
- Fiber and serial communication test results.
- LED/diagnostic test results.
- Confirmation of Tricon V10 compatibility.
- Test report.
- Warranty information.
Recommended procurement description:
TRICONEX 4352AN Tricon Communication Module (TCM), Tricon V10 Safety System; verify complete part number, hardware revision, communication-port configuration, firmware compatibility, and existing system configuration before replacement.
