Description

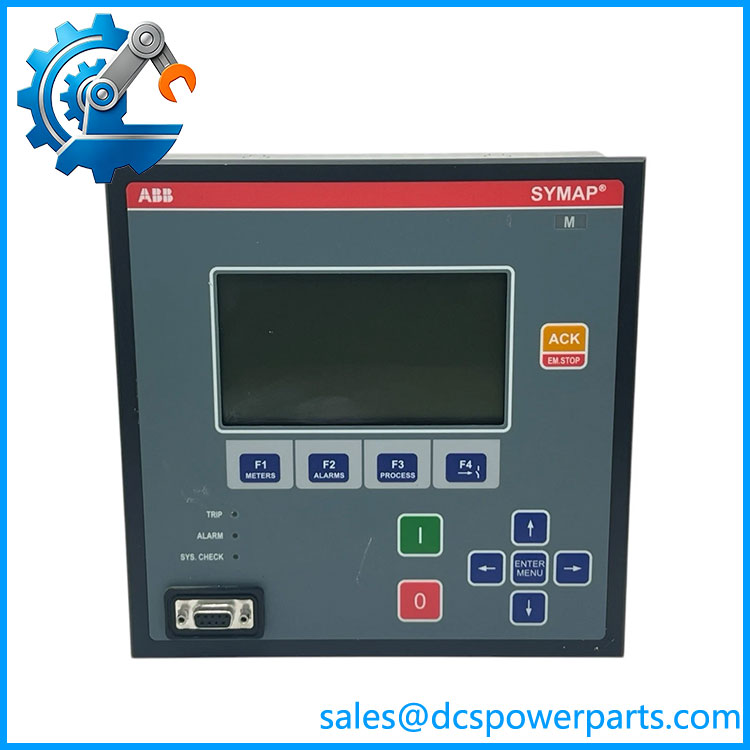

Stucke Elektronik SYMAP-M

Product Introduction

Motor protection becomes considerably more complicated once the application involves high starting current, long acceleration time, repeated starts, or a motor that cannot tolerate a simple thermal overload relay. Stucke SYMAP-M is the motor-protection variant of the SYMAP digital protection platform, combining electrical protection, measurement, control logic, HMI functions, and switchgear control in one device. Stucke identifies SYMAP®M specifically for motor protection applications in low- and medium-voltage systems.

For retrofit projects, Stucke SYMAP-M is more than a protection relay replacement. Its programmable logic can handle customized interlocks and control sequences, while the SYMAP platform supports communication with higher-level power-management or supervisory systems. The exact hardware build matters: communication ports, analog inputs, extension boards, CT/PT arrangements, and protection functions depend on the configured device. Do not purchase by the SYMAP-M designation alone when replacing an installed relay.

Key Technical Specifications

The manufacturer states that the SYMAP platform has 17 CT/PT measurement inputs for protection functions, including feeder current, ground current, feeder voltage, two busbar voltage groups, and ground voltage. Communication options include RS-232, RS-422/485, PROFIBUS DP, Modbus RTU/TCP, IEC 60870-5-103, IEC 61850, and CAN bus.

The current manufacturer technical data lists the SYMAP Y housing at approximately 192 × 192 × 103 mm, with supported power-supply ranges of 12–36 VDC, 36–72 VDC, 80–300 VDC, or 60–230 VAC and power consumption below 30 W. These figures are platform-level specifications, so the installed unit’s nameplate and order-code configuration should take precedence.

SYMAP-M

Application Scenarios & Pain Points

Large Pump and Process Motor Protection

Pumps can produce deceptively difficult protection problems. A simple overload trip may not distinguish between a prolonged acceleration, mechanical blockage, dry-running condition, or a genuine electrical fault. SYMAP-M provides motor-oriented functions such as thermal protection, undercurrent, locked-rotor protection, and start-inhibit logic, allowing the protection scheme to reflect the motor’s actual operating sequence.

Fans With Long Acceleration Times

High-inertia fans can remain at elevated current for a substantial portion of their acceleration cycle. The motor-protection scheme therefore needs to distinguish legitimate starting current from an abnormal locked-rotor or incomplete-start condition. SYMAP-M supports functions aimed specifically at these starting conditions.

Compressors

Compressors often require carefully controlled starting and restart sequences. SYMAP-M can combine motor protection with programmable interlocks and control logic, reducing the amount of external relay logic required in the motor-control scheme. The exact logic, however, is configuration-dependent and should be recovered from the original application documentation rather than assumed from the model name.

Marine and Offshore Switchgear

The SYMAP platform has a significant marine/offshore application history and carries type approvals associated with major classification societies. Its communication architecture also allows integration into power-management and supervisory systems.

Major Features and Engineering Advantages

Motor-Specific Protection Rather Than Basic Overload Monitoring

The SYMAP-M configuration is intended to address the operating conditions that cause real motor failures. Stucke lists thermal overload, locked-rotor, undercurrent, instantaneous overcurrent, phase unbalance/phase loss, start inhibit, and incomplete-sequence protection among the relevant motor-protection functions.

Integrated Logic

The SYMAP platform contains programmable logic functions that can be used for interlocking and control sequences. This is useful when the motor bay has permissives, breaker interlocks, start restrictions, or process-specific logic that would otherwise require additional control hardware.

Direct Switchgear Integration

Rear terminal plugs provide the field connection interface, while CT circuits incorporate automatic linking when the CT terminal plugs are disconnected. That detail matters during maintenance because opening a CT secondary circuit can create a serious safety problem.

Extensive Communication Options

Depending on the installed configuration, SYMAP supports traditional serial communications as well as PROFIBUS DP, Modbus RTU/TCP, IEC 60870-5-103, IEC 61850, and CAN bus. This makes the platform suitable for integration with plant power-management, switchgear control, or supervisory systems.

Event and Fault Information

SYMAP records event information with timestamps and provides a graphic HMI for measurements, alarms, process information, and breaker control. The documented platform supports up to five breaker controls and stores up to 5,000 general events.

Related Products

• SYMAP-EC — Engine-control variant rather than dedicated motor protection.
• SYMAP-ECG — Engine control combined with generator protection.
• SYMAP-G — Generator protection variant.
• SYMAP-F — Feeder protection variant.
• SYMAP-T — Transformer protection variant.
• SYMAP-LD — Line differential protection variant.
• SYMAP-BC — Broader multifunction protection architecture for power-management applications.
• SYMAP-BCG — Protection and power-management configuration.
• CMA 216 — Optional SYMAP extension board providing additional digital I/O.
• CMA 238 — Optional analog-input extension board.
• CMA 215 — High-current relay extension option.

These are members of the SYMAP platform, but they are not interchangeable merely because the enclosure or HMI appears similar. The manufacturer specifically uses different SYMAP variants for motor, feeder, generator, transformer, line-differential, and power-management applications.

Engineer’s Guide — Field Pitfalls to Avoid

1. Do not buy on “SYMAP-M” alone.
The platform supports multiple hardware and software configurations. Communication interfaces, extension boards, measurement arrangements, and protection functions can vary. The original order code is far more useful than the family name when matching a replacement. Stucke provides an Order Code Generator specifically for identifying existing configurations.

2. Check the CT arrangement before wiring.
The SYMAP platform has dedicated CT inputs for feeder and ground-current measurement. CT ratio, polarity, secondary rating, and grounding arrangement must match the protection calculation. A physically identical relay with a different configured measurement scheme is not a safe substitute.

3. Do not assume every communication interface is installed.
SYMAP supports a broad set of interfaces, but the availability of PROFIBUS, Modbus TCP, IEC 61850, fiber interfaces, or other options depends on the particular configuration. Confirm the rear connectors and configuration documentation before planning a network replacement.

4. Preserve the motor protection settings.
Thermal model parameters, locked-rotor thresholds, start-inhibit logic, current ratios, trip delays, and other settings should be documented before removing the original unit. A replacement relay that powers up correctly can still be incorrectly configured for the motor.

5. Treat temperature-monitoring options separately.
Stucke identifies analog inputs for optional temperature monitoring. Do not assume that a SYMAP-M already contains the required RTD/temperature interface simply because the application uses bearing or winding temperature protection. Confirm the installed hardware and wiring.

6. Verify the exact power-supply version.
Current SYMAP documentation lists several possible supply ranges for the SYMAP Y platform. Do not apply a generic “24 VDC” assumption to an unidentified unit. Read the nameplate and compare the exact hardware/order code before energization.

FAQ

Is SYMAP-M a PLC module?

No. SYMAP-M is a motor-protection relay and control device, although the SYMAP platform contains integrated programmable logic functions. It can perform interlocks and control sequences, but it should not automatically be treated as a conventional PLC CPU or remote I/O module.

What motors can SYMAP-M protect?

The SYMAP platform is used for motor protection in low- and medium-voltage applications, including industrial motors and large auxiliary drives. Typical applications include pumps, fans, compressors, conveyors, and other critical motor-driven equipment.

What motor protection functions are associated with SYMAP-M?

Depending on configuration, the motor-protection functions include ANSI 37 undercurrent, 46 phase unbalance/phase loss, 49 thermal overload, 50 instantaneous overcurrent, 51LR locked rotor, 66 start inhibit, and 48 incomplete sequence/long-start protection.

Can SYMAP-M communicate with a PLC or DCS?

Yes, depending on the installed communication configuration. The SYMAP platform supports interfaces and protocols including RS-232, RS-422/485, PROFIBUS DP, Modbus RTU/TCP, IEC 60870-5-103, IEC 61850, and CAN bus. Confirm the exact communication hardware before specifying the integration method.

Can an older SYMAP-M be replaced by another SYMAP-M?

Potentially, but the model designation alone is insufficient for a responsible replacement decision. Compare the complete order code, power supply, CT/PT configuration, I/O hardware, communication interfaces, extension boards, firmware, and stored protection/control parameters.

Is SYMAP-M suitable for a retrofit?

Yes, it can be technically suitable where the existing motor-protection architecture matches its measurement, I/O, communication, and control requirements. For a legacy installation, the critical task is not simply finding another unit marked SYMAP-M; it is reproducing the original protection philosophy and field interface accurately.

What should procurement verify before purchasing a SYMAP-M?

At minimum, obtain a clear photo of the nameplate and terminal area, the complete order/configuration code, firmware information, supply voltage, CT/PT ratings, installed extension boards, communication interfaces, and available parameter backup. For used or surplus equipment, verify the actual inventory condition rather than relying on a generic catalog description.
