Description
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Product Family | Modicon Quantum |
| Model | 140CPU5150 |
| Product Type | PLC CPU / Processor Module |
| Hardware Platform | Quantum 140 Series |
| CPU Function | Application program execution |
| Rack Architecture | Quantum backplane |
| I/O Architecture | Quantum local and remote I/O |
| Programming Environment | Schneider Quantum programming environment |
| Communication | Quantum communication architecture; exact interfaces depend on installed communication modules |
| Memory | Model/firmware dependent |
| Firmware | Version-dependent |
| Mounting | Quantum rack |
| Application | Industrial PLC / process control |
| Lifecycle | Legacy / mature product |
Specification caution: Publicly indexed sources for the 140CPU5150 are surprisingly limited and frequently mix it with other Quantum CPUs such as the 140CPU65150. I would not publish a specific memory capacity, scan time, communication-port count, or firmware limit for the 140CPU5150 without the original Schneider hardware manual or the CPU’s nameplate/version data. The available trade record itself distinguishes the 140CPU5150 from the newer 140CPU65150.
Product Introduction

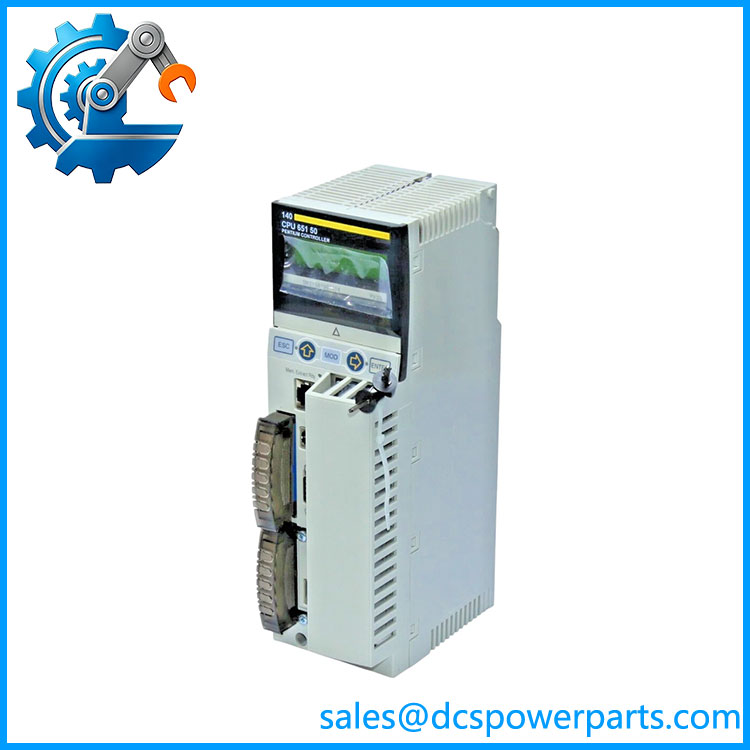

The Schneider Electric 140CPU5150 is a processor module from the Modicon Quantum PLC family. It serves as the central execution unit of a Quantum control system, running the user application and coordinating data exchange with I/O and communication modules installed in the Quantum architecture.
The Schneider 140CPU5150 Quantum CPU is designed for control applications where deterministic PLC execution and integration with Quantum rack-based I/O are required. The CPU is responsible for executing the control program, processing input data, updating outputs, and coordinating system-level operations. Its actual communication capability depends heavily on the modules installed around it rather than simply on the CPU part number.
140CPU65150
The Modicon Quantum 140CPU5150 belongs to a legacy platform that remains relevant in installed plants because many Quantum systems were designed for long service lives. A replacement therefore has to be evaluated as part of the existing control architecture. Matching the mechanical form factor is not enough; the application program, firmware compatibility, rack configuration, I/O mapping, communication modules, and retained memory configuration can all affect commissioning.
One point worth emphasizing for procurement is the distinction between 140CPU5150 and 140CPU65150. Current trade records show both numbers in circulation, and some secondary listings incorrectly combine the two model numbers in a single description.
Main Features & Field Considerations
Central PLC processing
The 140CPU5150 provides the processing function for the Quantum controller. A CPU fault can consequently affect the entire PLC rack rather than a single I/O point.
Quantum rack integration
The CPU should be evaluated together with the installed Quantum power supply, rack, I/O modules, communication modules, and remote I/O configuration.
Legacy application compatibility
For an existing installation, the stored application and firmware are often as important as the physical CPU. Before replacement, record the running firmware version and obtain a verified backup of the PLC application.
Communication architecture
Do not assume that the CPU alone provides every network interface required by the plant. Communication modules may provide Ethernet, Modbus, Modbus Plus, or other network functions depending on the specific Quantum installation.
Replacement checks
Before replacing a 140CPU5150, verify:
- Exact CPU model: 140CPU5150
- Hardware revision
- Firmware version
- Application-program backup
- Rack type
- Power-supply module
- Installed Quantum I/O
- Remote I/O configuration
- Communication modules
- Network addressing
- Retained registers and configuration data
Typical Applications
The 140CPU5150 is suited to legacy Quantum installations used for:
- Process-control systems
- Manufacturing automation
- Water and wastewater control
- Power and utility automation
- Material-handling systems
- Machine-control applications
- Distributed industrial PLC architectures
Procurement Note
For Schneider Electric 140CPU5150, use the complete CPU part number when sourcing the replacement. Do not accept a listing that casually substitutes 140CPU65150 for 140CPU5150; these are separate model numbers, and current secondary-market records demonstrate that the two are sometimes incorrectly conflated.
For an operating Quantum system, I would verify CPU revision + firmware + application backup + communication architecture before installing the replacement. Those four checks reduce considerably more commissioning risk than simply matching the front-panel appearance.
