Description
Product Overview
GE Multilin PQMII-T20 is an advanced power quality meter designed for comprehensive electrical system monitoring, energy measurement, and power quality analysis in industrial and commercial power distribution applications. It belongs to the GE Multilin PQM II Power Quality Meter family and is engineered to provide accurate measurement of electrical parameters including voltage, current, power, energy, demand, power factor, harmonics, and disturbance events. The PQMII-T20 configuration includes the T20 transducer option, providing four isolated analog outputs (0–20 mA / 4–20 mA) and additional analog measurement capabilities for integration with PLC, DCS, SCADA, and energy management systems.
GE Multilin PQMII-T20 functions as an intelligent electrical monitoring device that combines digital metering, power quality analysis, communication, and control functions into a compact panel-mounted instrument. It is designed to continuously monitor three-phase electrical networks and provide operators with real-time information about system performance, energy consumption, and abnormal operating conditions. The meter supports Modbus RTU communication through RS-485 interfaces, allowing direct connection to industrial automation systems and supervisory platforms.
GE Multilin PQMII-T20 is widely used in industrial plants, power distribution systems, manufacturing facilities, and infrastructure projects where electrical reliability and energy efficiency are critical. With optional power analysis functions, the PQM II platform can perform harmonic analysis up to the 63rd harmonic, waveform capture, event recording, and voltage disturbance monitoring. The combination of accurate measurement, communication flexibility, and advanced diagnostics makes PQMII-T20 an effective solution for preventing power quality issues and improving electrical system management.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | PQMII-T20 |
| Manufacturer | GE Multilin (GE Grid Solutions) |
| Product Type | Digital Power Quality Meter |
| Series | Multilin PQM II |
| Main Function | Power monitoring, energy metering, power quality analysis |
| Measurement Parameters | Voltage, current, frequency, kW, kvar, kVA, PF, energy |
| Current Input | 1 A / 5 A CT secondary input |
| Voltage Input | Direct VT/PT or line voltage measurement |
| Analog Output | 4 isolated analog outputs, 0–20 mA / 4–20 mA |
| Analog Input | 4–20 mA input channel |
| Communication Interface | RS-232 and RS-485 serial communication |
| Communication Protocol | Modbus RTU |
| RS-485 Network Capability | Up to 32 devices on one communication bus |
| Power Supply | 70–265 VAC / 90–300 VDC |
| Power Consumption | Approx. 10 VA typical, 20 VA maximum |
| Display Type | Front panel digital display |
| Operating Temperature | -10°C to +60°C |
| Humidity | Up to 95% RH non-condensing |
| Protection Rating | IP40 front panel / IP20 rear |
| Mounting Type | Panel mounting |

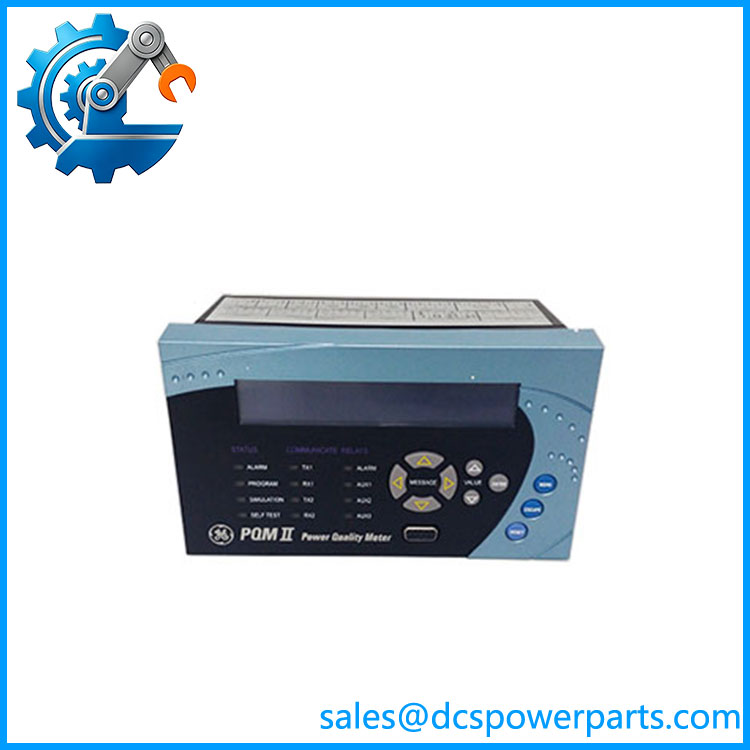

PQMII-T20
Main Features and Advantages
GE Multilin PQMII-T20 provides a complete electrical monitoring solution for industrial power systems by combining high-accuracy metering, power quality diagnostics, communication functions, and analog signal conversion capabilities. Unlike basic energy meters, PQMII-T20 is designed for applications where operators require not only energy consumption data but also detailed information about electrical system health.
Advanced measurement capability is one of the major advantages of PQMII-T20. The meter continuously monitors three-phase voltage and current parameters and calculates active power, reactive power, apparent power, energy consumption, demand values, power factor, and frequency. This allows plant engineers to analyze electrical loading conditions, identify inefficient operation, and optimize energy usage.
The integrated T20 transducer option significantly improves system integration flexibility. GE Multilin PQMII-T20 provides four isolated analog outputs that can be assigned to measured electrical parameters, allowing direct connection to PLC analog input modules, distributed control systems, data acquisition equipment, and industrial recorders. The isolated output design improves signal reliability and reduces interference in electrically noisy environments.
Power quality analysis capability is another important strength of PQMII-T20. When equipped with the power analysis option, the PQM II platform can perform harmonic analysis up to the 63rd harmonic, total harmonic distortion (THD) measurement, waveform capture, event recording, and voltage disturbance monitoring. These functions help identify problems caused by nonlinear loads, variable frequency drives, switching equipment, and unstable grid conditions.
Communication flexibility makes GE Multilin PQMII-T20 suitable for modern automation environments. Through RS-485 Modbus RTU communication, the meter can exchange measurement data with PLC systems, SCADA platforms, energy management software, and industrial monitoring networks. The additional RS-232 interface provides convenient local configuration and maintenance access.
The compact panel-mounted design of PQMII-T20 simplifies installation in electrical switchgear, motor control centers, and industrial control cabinets. Its rugged construction and wide power supply range allow reliable operation in demanding industrial environments.
Another key advantage of GE Multilin PQMII-T20 is its contribution to predictive maintenance strategies. By continuously monitoring voltage disturbances, harmonic distortion, current imbalance, and abnormal operating conditions, the meter helps maintenance teams detect electrical problems before they cause equipment failures or production interruptions.
With accurate measurement, advanced diagnostics, flexible communication, and industrial reliability, PQMII-T20 provides a comprehensive platform for power monitoring and electrical system optimization.
Applications
GE Multilin PQMII-T20 is widely applied in industrial electrical systems where accurate power monitoring and power quality management are required. In manufacturing plants, the meter is installed in switchboards, motor control centers, and distribution panels to monitor electrical loads, production equipment power consumption, and abnormal electrical conditions.
In power generation facilities, GE Multilin PQMII-T20 supports auxiliary power monitoring, generator output analysis, and distribution system supervision. Its ability to capture electrical disturbances and analyze power quality helps operators maintain stable plant operation.
The oil and gas industry uses PQMII-T20 in compressor stations, pumping facilities, and process plants where electrical equipment reliability is essential. Monitoring voltage stability, current loading, and harmonic distortion helps protect motors, drives, and sensitive control equipment.
In chemical, pharmaceutical, and process industries, PQMII-T20 assists with energy management and equipment protection by providing detailed electrical performance information. The analog outputs allow integration with existing DCS and PLC systems for centralized monitoring.
Commercial buildings, data centers, and infrastructure facilities also benefit from GE Multilin PQMII-T20 for energy consumption analysis, electrical distribution monitoring, and power quality improvement projects.
Typical application areas include:
- Industrial power distribution systems
- Motor control centers (MCC)
- Manufacturing facilities
- Power generation auxiliary systems
- Oil and gas installations
- Chemical processing plants
- Energy management systems
- SCADA monitoring systems
- Electrical switchgear monitoring
