Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | PM803F |
| Order Number | 3BDH000530R1 |
| Manufacturer | ABB |
| Product Family | AC 800F / Freelance DCS |
| Product Type | Base Unit / Central Processing Unit |
| Processor | 32-bit RISC processor |
| Memory | 16 MB battery-buffered RAM |
| Operating System | Loaded during software installation |
| Required Software | Freelance V7.1SP2a or higher |
| Power Supply | 24 VDC system supply |
| Power Consumption | Approx. 7.8 W maximum depending on CPU load |
| Expansion Capability | Supports communication and fieldbus modules |
| Redundancy Support | Supports AC 800F controller redundancy configurations |
| Installation | AC 800F controller rack |
| Dimensions | 239 × 202 × 164 mm |
| Weight | Approx. 1.6 kg |
Application Scenarios & Pain Points
A DCS controller sits at the center of every control loop. When that controller base unit becomes unstable, operators may see scattered symptoms: lost communication, unexpected restarts, or incomplete process data.
Typical applications:
- Chemical Processing: Used as the central controller for batch control, continuous processes, and distributed field instrumentation.
- Power Generation: Supports auxiliary systems, balance-of-plant control, and process monitoring applications where AC 800F architecture is installed.
- Water Treatment: Handles pump sequencing, valve control, and instrumentation management through connected fieldbus modules.
- Manufacturing Facilities: Provides PLC-style process control functions while integrating with Freelance engineering environments.
Field note: A wastewater facility experienced intermittent controller resets after years of operation. The application program was intact, but the processor hardware showed unstable memory retention. Replacing the PM803F and reloading the approved configuration restored normal operation.

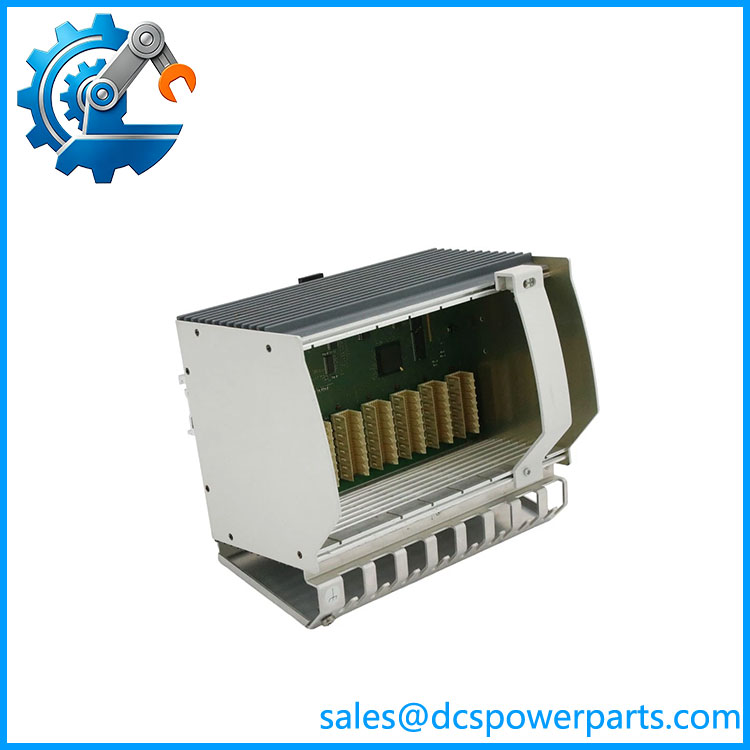

PM803F 3BDH000530R1
Related Products
- ABB PM802F — Earlier AC 800F processor base unit. Used in legacy Freelance systems, but PM803F offers updated performance and compatibility.
- ABB PM802F-ETH — AC 800F processor variant with Ethernet communication capability. Suitable for installations requiring integrated network communication.
- ABB FI830F — PROFIBUS fieldbus interface module. Used with AC 800F systems for PROFIBUS DP device communication.
- ABB FI840F — Foundation Fieldbus interface module. Supports field device communication in process automation applications.
- ABB EI813F — Ethernet communication interface module for AC 800F controller architectures.
- ABB SD812F — AC 800F power supply module. Provides system power for controller hardware.
- ABB CI830 — PROFIBUS communication interface module used for ABB automation network integration.
- ABB Freelance Engineering Software — Configuration and programming environment required for PM803F application development and maintenance.
The Engineer’s Guide: Field Pitfalls to Avoid
⚠️ Software Version Mismatch
The PM803F requires compatible Freelance engineering software. A controller can physically start but fail during application loading if the software environment is incorrect.
How to avoid: Verify Freelance version, controller firmware, and application backup before replacement.
⚠️ Battery-Buffered RAM Data Loss
The battery maintains stored data when the controller is powered down. An aging battery may create unexpected configuration loss.
How to avoid: Check battery condition during preventive maintenance and preserve application files externally.
⚠️ Incorrect Module Configuration
The PM803F is only the processing foundation. Communication and fieldbus modules must match the existing project configuration.
How to avoid: Record the complete AC 800F rack layout, module order, and communication settings before removing the unit.
Frequently Asked Questions (FAQ)
What is the ABB 3BDH000530R1 used for?
The is the central processor base unit for ABB AC 800F Freelance DCS systems. It executes control applications and manages communication with connected fieldbus modules.
Is the a complete DCS controller?
No. The is the CPU base unit. A complete AC 800F controller requires additional modules such as power supply, communication interfaces, and fieldbus interfaces.
Can replace PM802F directly?
The can replace PM802F in many AC 800F applications, but the engineering software version, application configuration, and installed modules must be checked first.
Does the include an operating system?
No. The operating system is loaded during software installation. The installed Freelance engineering environment must support the controller version.
Why does a replacement fail to start the application?
Common causes include:
- Incorrect Freelance software version
- Missing application download
- Configuration mismatch
- Battery-backed memory issues
- Incorrect module arrangement
What should be checked before purchasing a 3BDH000530R1?
Verify:
- Complete part number
- AC 800F rack configuration
- Freelance software version
- Existing fieldbus modules
- Application backup
- Controller redundancy requirements
Is a refurbished ABB suitable for DCS operation?
A tested refurbished unit can be suitable when processor operation, memory retention, communication interfaces, hardware condition, and application compatibility are verified before installation.
