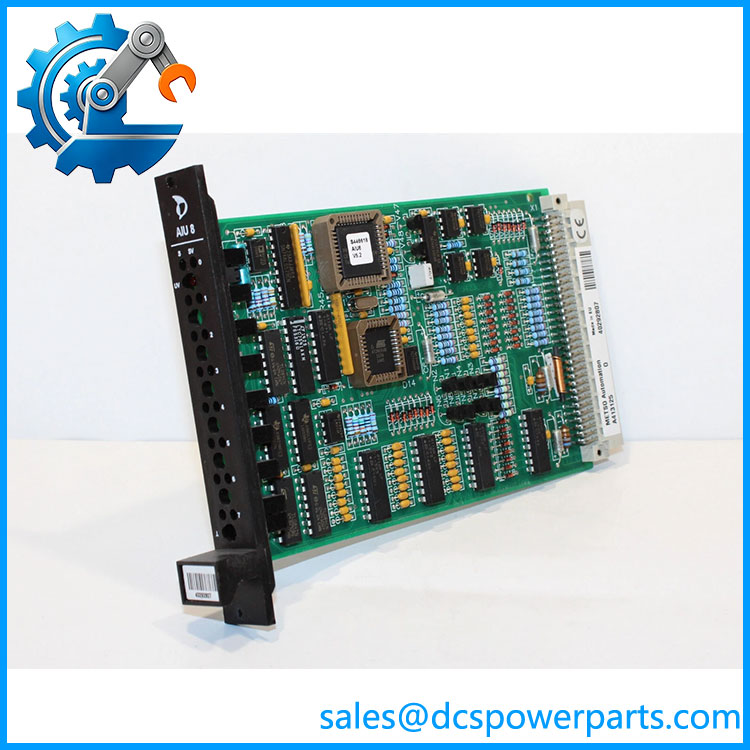

Metso Automation A413125 AIU-8 Analog Input Module
Product Overview
The Metso Automation A413125 is an AIU-8 analog input module used in legacy Metso/Valmet automation systems. Its job is straightforward but critical: acquire analog process signals and make those measurements available to the DCS control architecture. Available product records consistently identify A413125 as an eight-channel analog input board, with the description “AIU 8 DCS” and a 24 VDC, approximately 30 mA module supply requirement. Historical repair documentation also identifies the part as an AIU-8 module rather than a processor, communication card, or power supply.
The Metso Automation A413125 should therefore be treated as a legacy DCS I/O component rather than a generic analog input card. It belongs to the Metso/Valmet automation hardware lineage and is associated in current component records with the AIU-8 designation. Some secondary sources claim specific input ranges such as 4–20 mA or 1–5 V, while another source incorrectly describes the same part as an analog output module. Those claims conflict, so they should not be used as design specifications without checking the actual system documentation or module revision. The safest engineering identification is A413125 AIU-8, 8-channel analog input module.
For maintenance teams keeping an older Metso/Valmet DCS running, the Metso Automation A413125 can become a difficult spare because the hardware is discontinued and revision differences may matter. A replacement should be matched not only by the part number but also by PCB revision, rack position, associated termination hardware, DCS generation, and the actual field-signal configuration. A visually similar analog board is not an acceptable substitute merely because it has eight channels.
Product Introduction
When an older DCS begins reporting bad process values on several loops, the problem is not necessarily in the transmitters. The Metso Automation occupies the analog acquisition layer between field instrumentation and the control system, making the module a logical point of investigation when multiple analog channels show abnormal behavior.
For a legacy DCS system upgrade or emergency I/O replacement, the AIU-8 provides eight analog input channels in one compact board. The critical issue is matching the original Metso/Valmet I/O architecture and signal configuration rather than assuming generic analog-input compatibility.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | |
| Manufacturer / Brand | Metso Automation / Valmet Automation |
| Product Type | Analog Input Module |
| Module Designation | |
| Number of Analog Inputs | 8 |
| Application | DCS analog signal acquisition |
| Module Supply Voltage | 24 VDC |
| Module Supply Current | Approximately 30 mA |
| Installation | Compatible legacy Metso/Valmet DCS I/O architecture |
| Hardware Form | PCB / plug-in I/O module |
| Status | Discontinued / legacy |
Important specification limitation: Publicly available records do not provide sufficiently reliable primary documentation for the exact input signal ranges, input impedance, ADC resolution, conversion accuracy, isolation architecture, environmental rating, or channel-by-channel configuration of every revision. Those values should be taken from the original Metso/Valmet system documentation or the installed module’s technical documentation rather than guessed from modern AIU products.
Major Features / Practical Advantages
Eight-Channel Analog Acquisition
The defining characteristic of the is its eight-channel configuration. This gives one module responsibility for multiple analog process measurements within the DCS I/O architecture. Historical component records specifically identify the part as an “ module,” and current automation records continue to associate with the designation.
In practical troubleshooting, this channel density matters. If several signals connected to the same module exhibit abnormal values while field transmitters and loop power remain healthy, the and its associated termination/wiring should be investigated before replacing individual field instruments.
A413125
Dedicated DCS I/O Function
The is an I/O acquisition board, not a standalone controller. Its role is to receive analog process information and pass that data into the host automation system. It does not execute the plant’s main control strategy in the manner of a DCS processor.
This distinction is important when building a replacement BOM. A processor failure and an failure have very different consequences and require different spare strategies.
Legacy Metso / Valmet Compatibility
The part sits within the older Metso/Valmet automation ecosystem. Historical records identify Metso Automation and Valmet Automation in connection with the same designation, reflecting the product lineage rather than two unrelated manufacturers.
A maintenance engineer should therefore identify the complete host DCS architecture before ordering. Rack, backplane, termination assembly, engineering database, and module revision can all affect whether an apparently identical spare can be commissioned successfully.
24 VDC Module Supply
Available product records specify 24 VDC and approximately 30 mA for the .
That figure should not be confused with field-loop power. The module’s own supply requirement is different from the excitation or loop power required by connected transmitters. When troubleshooting an analog loop, measure the field circuit independently instead of assuming that the ‘s 24 VDC supply rating represents the transmitter supply.
Revision Control Matters
At least one historical unit is specifically identified as , while other market records reference different revision numbers.
That is a useful procurement clue. Do not discard the revision information from the original board photograph. A replacement with the same base part number but a different hardware revision may require confirmation against the installed DCS documentation.
Avoid Conflicting Signal Specifications
There is conflicting secondary information online about the exact signal type supported by . One source describes it correctly at a high level as an eight-channel analog input module, while another claims a 4-channel analog output configuration.
For engineering purposes, the identification and eight analog-input designation have substantially stronger support than the conflicting analog-output claim. Specific current/voltage ranges should still be verified from the actual Metso/Valmet documentation for the installed revision.
Related Products
- Metso Automation A413095 — Related legacy Metso/Valmet automation component; confirm its actual I/O function before considering substitution.
- Metso Automation A413135 — Related A-series DCS hardware; not automatically interchangeable with the .
- Metso Automation A413150 — Another legacy Metso Automation spare; system and hardware revision must be checked.
- Metso Automation A413182 — Related legacy automation board used within the same broad product lineage.
- Metso Automation A413325 — Legacy Metso/Valmet automation component; verify rack and I/O function before substitution.
- Metso/Valmet — Functional family designation associated directly with .
- Metso/Valmet AIU-series modules — Related analog I/O hardware; channel count and signal type vary by model.
- Metso/Valmet DCS I/O assemblies — Associated field-I/O hardware requiring matching rack and termination architecture.
FAQ
What is the Metso Automation ?
The is an analog input module associated with legacy Metso/Valmet DCS hardware. Available records identify it as an eight-channel analog input board.
How many analog inputs does have?
The designation and available component records identify 8 analog input channels.
Is a DCS CPU?
No. It is an analog I/O module, not the main DCS processor. Its function is field-signal acquisition.
What power does require?
Available records specify 24 VDC with approximately 30 mA module current consumption.
What exact analog signal range does support?
This is one specification I would not infer from the part number alone. Some secondary sources claim 4–20 mA, 1–5 V, or other ranges, but the available records are inconsistent. Verify the signal range against the original Metso/Valmet documentation, engineering database, or the actual module revision before wiring a replacement.
Can I hot-swap the ?
Do not assume unrestricted hot swapping. This is a legacy DCS I/O board, and removing it can interrupt multiple process measurements. Follow the plant’s approved DCS maintenance or I/O replacement procedure, including any required controller redundancy or maintenance bypass steps.
Does support firmware v3.1?
The part number does not establish a firmware version. For this type of legacy I/O board, the more useful identification data are the hardware revision, complete board marking, host DCS platform, rack position, and associated termination hardware.
Is interchangeable with another 8-channel analog input card?
Not simply because another card also has eight analog inputs. The electrical interface, backplane, signal conditioning, termination, engineering database, and DCS generation must match. An eight-channel modern AI module is not automatically a functional replacement.
How should I verify a replacement ?
Photograph the complete original board before removal. Record the part number, revision, serial number if present, terminal/connector arrangement, rack position, and field-channel assignments. For a refurbished spare, request evidence that all eight channels have been electrically tested rather than accepting a visual inspection alone.
Procurement Note
For Metso Automation procurement, verify the following before issuing a purchase order:
- Full part number:
- Functional designation:
- Eight-channel analog input configuration
- Manufacturer lineage: Metso Automation / Valmet Automation
- PCB hardware revision
- Host DCS model and generation
- Rack/backplane compatibility
- Associated termination hardware
- Actual field-signal type and range
- Condition: new surplus, unused, refurbished, or previously installed
- Electrical test evidence for refurbished units
- Engineering database/channel configuration before commissioning
The part is reported as discontinued by the manufacturer, so legacy-spare procurement requires more qualification than buying a current-generation DCS I/O module.
One final caution: several online listings contain technically inconsistent descriptions of . I would use “Metso/Valmet , 8-channel analog input module” as the controlled product description and avoid publishing unsupported claims about resolution, accuracy, isolation, or exact input ranges until the specific revision documentation is available. That approach is considerably safer for an industrial automation product page and for engineers using the page to qualify a replacement.
