Description
Product Overview
GE IS420UCSBH1A is a UCSB (Universal Control System Board) controller module designed for the GE Mark VIe Control System platform. It is a high-performance embedded controller used in gas turbine, steam turbine, generator excitation, and industrial process control applications. As a core processing unit within the Mark VIe architecture, IS420UCSBH1A executes application-specific control logic, manages communication with distributed I/O modules, and provides deterministic real-time control performance for critical industrial equipment.
GE IS420UCSBH1A belongs to the GE Speedtronic Mark VIe family and is commonly applied in Mark VIe, EX2100e excitation control, and LS2100e static starter systems. Unlike traditional PLC CPUs that directly host extensive I/O interfaces, the UCSB controller operates as an independent computing module that executes control algorithms while communicating with field I/O through high-speed Ethernet-based IONet networks. This architecture improves system flexibility, scalability, and availability.
GE IS420UCSBH1A integrates an Intel EP80579 600 MHz processor, ECC-protected DDR2 memory, QNX Neutrino real-time operating system, onboard flash storage, and multiple Ethernet communication interfaces. Designed for continuous industrial operation, IS420UCSBH1A provides deterministic execution, reliable synchronization, and advanced communication capabilities required by modern turbine and process automation systems. Its fanless design, single-module structure, and industrial certifications make it suitable for harsh environments where reliability and long service life are essential.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IS420UCSBH1A |
| Manufacturer | GE (General Electric / GE Digital) |
| Product Type | UCSB Controller Module |
| Series | Mark VIe Control System |
| Functional Acronym | UCSB |
| Processor | Intel EP80579 600 MHz |
| Memory | 256 MB DDR2 SDRAM with ECC |
| Storage | 2 GB NAND Flash |
| Operating System | QNX Neutrino Real-Time Operating System |
| Power Supply | 18–30 VDC (24/28 VDC nominal) |
| Maximum Current | 1.5 ADC |
| Typical Power Consumption | Approximately 15 W |
| Communication Interface | Ethernet, IONet interfaces, serial communication |
| IONet Interface | Multiple 10/100Base-TX Ethernet ports |
| Time Synchronization | IEEE 1588 Precision Time Protocol |
| Mounting Type | Control panel / industrial chassis mounting |
| Operating Temperature | -22°F to 149°F (-30°C to 65°C approximately) |
| Environmental Certification | UL E207685, ATEX Zone 2 Group IIC |
| Design Features | Fanless, battery-free, single-module architecture |

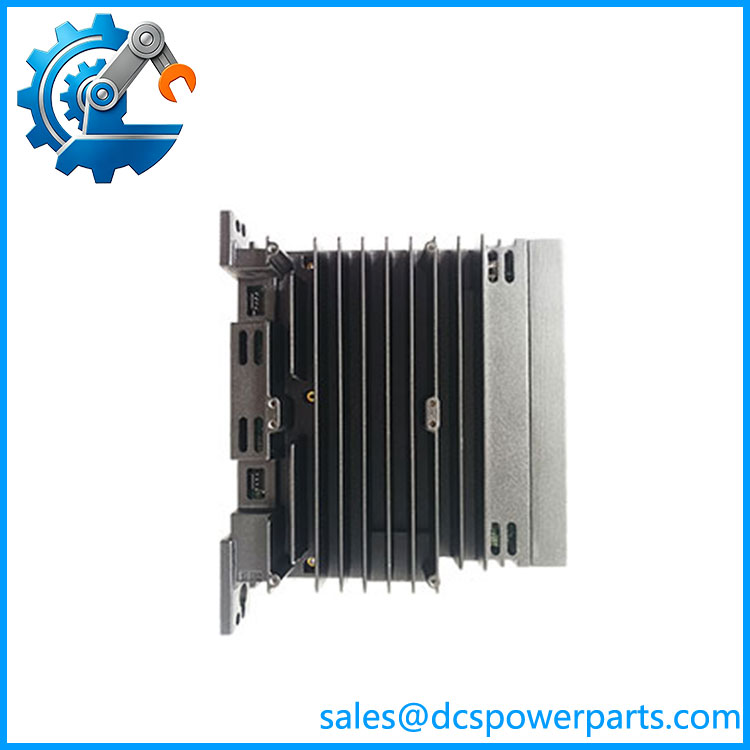

IS420UCSBH1A
Main Features and Advantages
GE IS420UCSBH1A provides a powerful and reliable controller solution for advanced industrial control systems. Its embedded computer architecture allows it to execute complex control strategies independently, providing high-speed processing capability and deterministic response required for turbine and energy applications.
High-performance real-time control capability is one of the primary advantages of IS420UCSBH1A. The integrated Intel EP80579 processor combined with ECC-protected memory enables stable execution of control algorithms, sequencing logic, protection functions, and monitoring tasks. This architecture ensures fast response times for dynamic industrial processes where precise control performance is critical.
GE IS420UCSBH1A uses the QNX Neutrino real-time operating system, which is specifically designed for industrial embedded applications requiring high reliability and predictable task execution. The real-time operating environment improves system stability and allows the controller to manage multiple control functions simultaneously.
Advanced communication capability is another major strength of IS420UCSBH1A. Through integrated Ethernet and IONet communication interfaces, the controller exchanges process data with Mark VIe I/O modules, operator interfaces, engineering tools, and supervisory systems. The use of IEEE 1588 time synchronization technology enables accurate event recording and coordinated operation among multiple control components.
The fanless and battery-free design of GE IS420UCSBH1A improves long-term reliability by eliminating common failure points associated with cooling fans and battery-backed memory. This design reduces maintenance requirements and increases system availability in continuous-operation environments.
GE IS420UCSBH1A also supports highly reliable control architectures. It can participate in redundant control configurations where availability and fault tolerance are required. The modular design allows engineers to integrate the controller into existing Mark VIe systems while maintaining compatibility with established GE turbine control solutions.
The compact industrial design of IS420UCSBH1A makes it suitable for space-constrained control cabinets. Its wide operating temperature range and hazardous area certifications allow deployment in demanding environments such as power plants, oil and gas facilities, and industrial processing installations.
With advanced processing capability, deterministic control performance, flexible communication, and proven GE Speedtronic technology, IS420UCSBH1A provides a dependable controller platform for mission-critical automation applications.
Applications
GE IS420UCSBH1A is primarily used in GE Mark VIe turbine control systems and other industrial automation environments requiring high-speed, reliable embedded control. In gas turbine applications, the controller performs critical control functions including turbine sequencing, speed regulation, temperature management, fuel control coordination, and operational monitoring.
In steam power generation facilities, GE IS420UCSBH1A provides the computing platform for turbine control systems, auxiliary equipment coordination, and plant automation functions. Its real-time processing capability allows operators to maintain stable operation while continuously monitoring equipment performance.
The oil and gas industry widely uses IS420UCSBH1A in compressor stations, gas turbine packages, and mechanical drive applications. These environments require highly reliable controllers capable of operating continuously under demanding conditions. The controller supports precise management of rotating equipment and integration with plant-wide automation systems.
GE IS420UCSBH1A is also applied in generator excitation systems using EX2100e platforms. In these systems, the controller manages excitation control logic, communication, and monitoring functions to maintain generator voltage stability and power system performance.
Industrial facilities such as chemical plants, refineries, steel mills, and large manufacturing sites utilize IS420UCSBH1A as part of advanced process control architectures. Its Ethernet communication capability allows integration with supervisory systems, engineering workstations, and distributed control networks.
Typical application areas include:
- Gas turbine control systems
- Steam turbine automation
- Generator excitation systems
- Power plant DCS applications
- Oil and gas compressor control
- Industrial process automation
- Energy infrastructure control systems
- Turbomachinery monitoring platforms
