HMS describes AB7652-F specifically as an Anybus X-gateway PROFINET IO Slave – PROFIBUS DP-V0 Slave. The gateway transfers cyclic I/O data between the two networks without requiring a dedicated PLC card slot.

Product Introduction

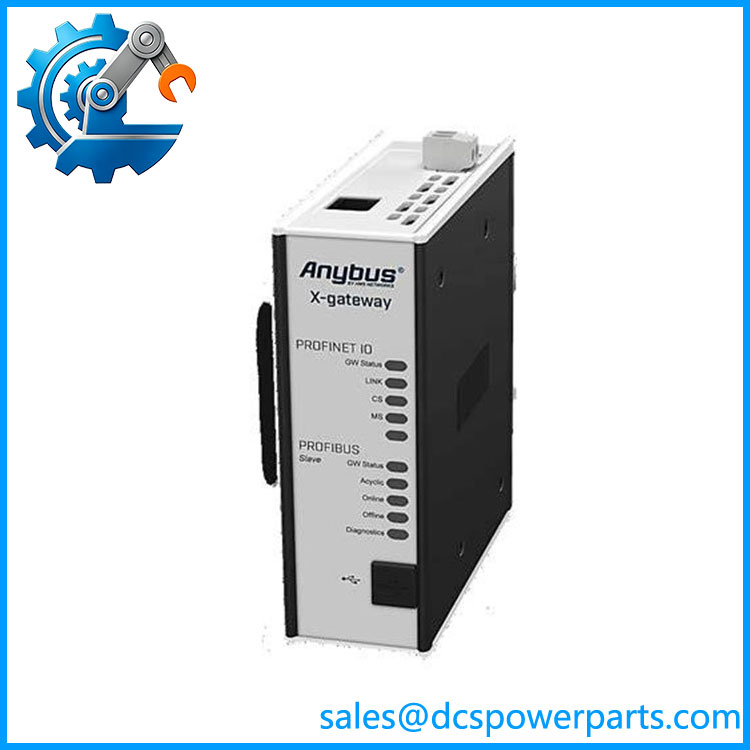

The HMS Networks AB7652-F is an Anybus X-gateway designed for installations where a PROFINET IO system must exchange I/O data with a PROFIBUS DP-V0 control system. Both network interfaces operate as slaves: the PROFINET side appears as an IO device to its PROFINET controller, while the PROFIBUS side appears as a DP slave to the PROFIBUS master.

This architecture makes the AB7652-F useful for integrating legacy PROFIBUS equipment into newer PROFINET-based control systems without replacing every field device. Configuration is performed with Anybus Configuration Manager rather than by writing application logic into the gateway. HMS documentation also identifies ABC4023-A as the successor product, so lifecycle compatibility needs to be considered when planning a replacement.

AB7652-F

Application Scenarios & Field Pitfalls — The Engineer’s Perspective

Engineering Pain Point

The difficult part of replacing an AB7652-F is usually not the physical network connection. It is preserving the I/O data mapping and master/slave configuration on both networks. A gateway can have correct power, Ethernet link, and PROFIBUS activity while the PLC still receives incorrect or incomplete process data if the configured data lengths, byte order, module mapping, or GSD configuration do not match the original installation.

Typical Applications

• PROFINET-to-PROFIBUS migration — retain existing PROFIBUS DP field equipment while the supervisory or controller network moves to PROFINET.
• Legacy machine integration — connect an established PROFIBUS control segment to a newer PROFINET controller.
• Remote I/O integration — exchange cyclic I/O data between PROFINET and PROFIBUS-based I/O architectures.
• PLC modernization — avoid replacing every field-side PROFIBUS device when only the controller-side network is being upgraded.

Technical Pitfalls to Avoid

1. Remember that both sides are slave interfaces.
   The does not function as a PROFINET controller or PROFIBUS master. The external PLC/controller must provide the corresponding master/controller functions. HMS explicitly identifies both interfaces as slave roles.
2. Preserve the original GSD configuration.
   A PROFIBUS master normally needs the appropriate device description and module configuration. HMS support documentation confirms that a GSD file is used when configuring in Siemens Step 7 environments.
3. Check cyclic data size on both sides.
   The gateway transfers process data between networks, but the PLC configuration must match the configured input/output data areas. Do not assume that physically identical field devices automatically produce identical PLC addresses after a gateway replacement.
4. Check PROFIBUS addressing and termination.
   The is a PROFIBUS DP slave, so its address must be unique on the DP segment. Cable shielding, termination, segment length, and connector condition remain external network responsibilities.
5. Do not confuse protocol conversion with data-format conversion.
   The gateway transfers cyclic I/O data between the networks. If the application depends on a particular word order, byte order, scaling convention, or application-specific interpretation, verify the actual configured data mapping before commissioning.
6. Verify the configuration backup.
   The gateway itself may be easy to replace physically, but recreating its configuration without the original project can take considerably longer. Preserve the Anybus configuration and the PLC-side hardware configuration before removing a functioning unit.
7. Account for lifecycle status.
   HMS currently identifies as a legacy product with a replacement available. DigiKey also lists as obsolete, while HMS documentation identifies ABC4023-A as the successor. A successor should not be treated as a blind drop-in replacement; validate its network configuration and I/O mapping first.
