HIMA H51q-HRS B5233-2 997205233 | SIL 3 Safety Instrumented System Central Rack Module

Description

Key Technical Specifications

Product Introduction

HIMA H51q-HRS B5233-2 997205233 Product Introduction

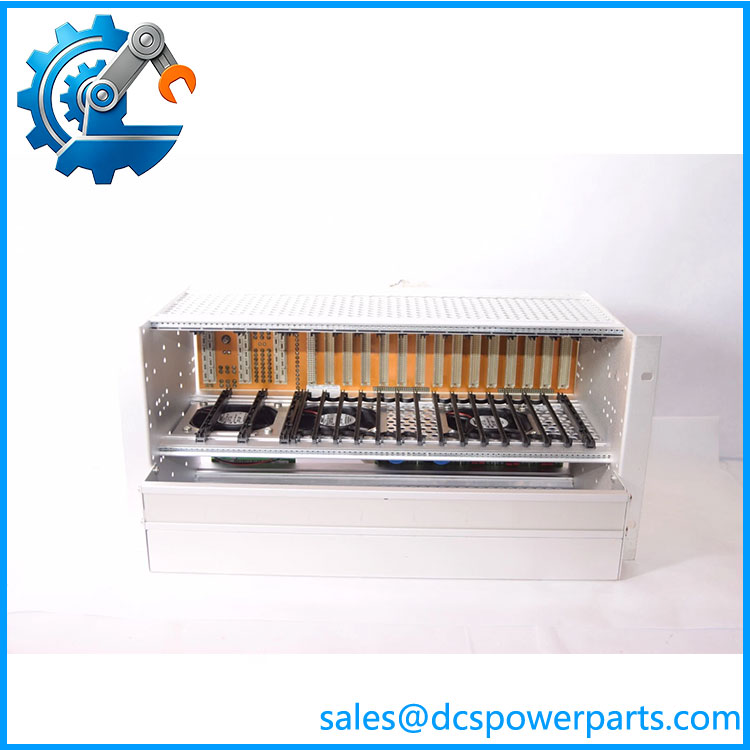

HIMA H51q-HRS B5233-2 997205233 is a central rack assembly for the HIMA HIQuad H51q programmable electronic safety system. It provides the mechanical structure, backplane connections, power distribution interfaces, and module mounting positions required for redundant safety controller operation.

The HIMA H51q-HRS B5233-2 997205233 is used in existing safety instrumented systems where maintaining the certified hardware architecture is critical. This assembly is not a standalone logic controller; correct operation depends on the installed CPU modules, power modules, communication cards, I/O modules, and application configuration.

H51q-H

Application Scenarios & Field Pitfalls (The Engineer’s Perspective)

Engineering Pain Point

A process plant experiences an unexpected safety controller rack fault during operation. The CPUs appear healthy, but diagnostics indicate communication loss between central modules and field I/O.

With safety systems, replacing a rack assembly is rarely a simple hardware swap. The rack defines the controller topology, redundancy arrangement, and module communication path. A mismatch can prevent the safety application from returning to normal operation.

Typical Applications

• Oil & Gas – Emergency shutdown (ESD) systems for compressors, turbines, and hydrocarbon processing units.
• Chemical Processing – Safety instrumented functions for reactors, chemical storage, and hazardous process areas.
• Power Generation – Burner management systems, turbine protection, and plant safety interlocks.
• Rail and Transportation – Safety-related control applications requiring certified fault-tolerant architectures.

Technical Pitfalls to Avoid

1. Confirm Redundant Rack Configuration
   The B5233-2 version uses a redundant bus architecture. Do not replace it with a similar-looking H51q rack variant without confirming the system design.
2. Check CPU and Firmware Compatibility
   Safety controllers depend heavily on hardware revision and firmware combinations. Verify installed central modules and engineering software compatibility before commissioning.
3. Preserve Safety Configuration Data
   Before removing the rack, document module positions, communication settings, I/O allocation, and diagnostic history. Rebuilding a certified safety application from incomplete records can create long commissioning delays.

Related Products

• HIMA H51q-HS B5233-1
  Similar H51q rack assembly with a single bus configuration. Used where redundant bus architecture is not required.
• HIMA F8650X Central Module
  Central processor module used within H51q-HRS rack assemblies. Provides safety logic execution and system management functions.
• HIMA F7126 Power Supply Module
  24V/5V power supply module used within H51q rack configurations. Supports controller and module power distribution.
• HIMA F7131 Power Supply Monitoring Module
  Monitors supply status and provides diagnostic information for the safety rack power system.
• HIMA F3236 Digital Input Module
  Safety digital input module used for field switches, ESD signals, and safety devices in H51q systems.
• HIMA F3330 Digital Output Module
  Safety output module used for shutdown valves, actuators, and other final control elements.
• HIMA F6217 Analog Input Module
  Safety analog input module for process transmitters and measurement devices.
• HIMA F8621A Communication Module
  Communication interface module supporting external system connections such as Modbus-based integration.
• HIMA H41q Safety System
  Related HIQuad safety controller family with similar hardware concepts but a smaller system capacity compared with H51q.
