Description
Product Overview

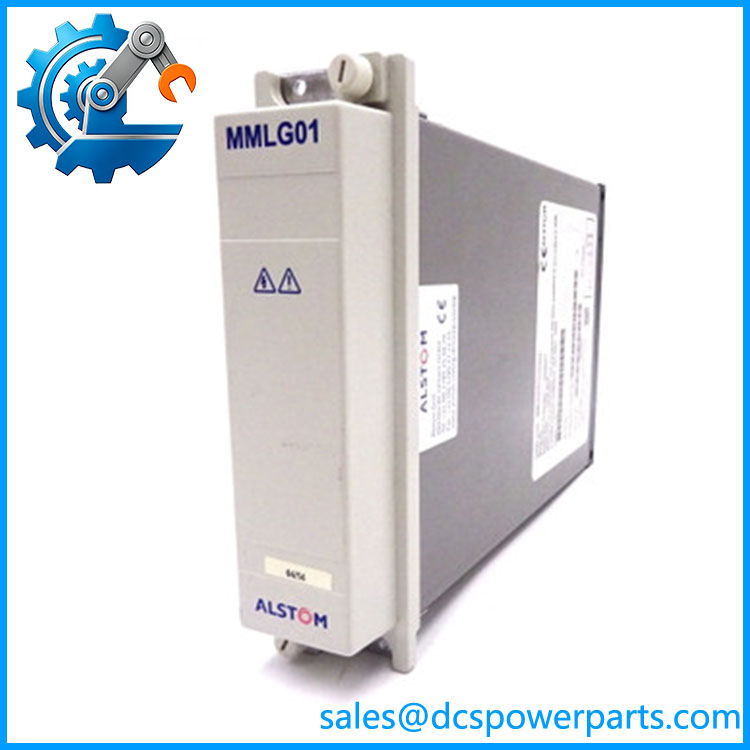

The GE MMLG01R1AB0001E is a standard MMLG01 test block from the MIDOS protection-system accessory family. Its purpose is straightforward but important: provide a controlled interface between protection relay wiring and test equipment without requiring technicians to disturb the permanent field wiring. The MMLG01 design provides 14 separate circuits, with each circuit brought to terminal pairs at the rear. Under normal service conditions, internal contacts maintain the circuit path. When the associated MMLB01 multi-finger test plug is inserted, those contacts open to isolate the protection equipment for testing.
In a protection panel, the GE MMLG01R1AB0001E sits between the relay and the external CT, VT, trip, control, or indication wiring, depending on the specific protection scheme. This makes it useful for commissioning, routine relay testing, secondary injection, fault investigation, and maintenance work. The test block itself does not perform protection logic; it provides the physical test interface needed to work on the protection circuit safely and systematically. A current utility-approved equipment list identifies MMLG01R1AB0001E as a GE / Stafford, UK MMLG01 test block, with the associated MMLB01AXAA0011E test plug.
The vertical mounting arrangement is significant when replacing older MMLG hardware. Some MMLG variants have different physical configurations or circuit arrangements, so a similar-looking MMLG unit should not automatically be considered interchangeable. Secondary documentation also identifies MMLG01R1AB0001E as a replacement designation for an earlier MMLG01/1-28 configuration.
For procurement, verify the complete ordering code and the matching test plug. The block and plug are complementary components; buying the test block alone does not necessarily provide the test equipment required for field commissioning or relay injection work.
Product Introduction (Non-Templated)
Protection testing becomes unnecessarily risky when technicians have to disconnect permanent relay wiring just to insert test equipment. The GE MMLG01R1AB0001E provides a dedicated 14-circuit interface for monitoring, isolation, and secondary-injection testing, using the MMLB01 multi-finger test plug.
For a legacy protection-panel replacement, check the mounting orientation, circuit count, terminal arrangement, existing MMLB01 plug, and the original protection-scheme drawings. This is a test interface—not a relay and not a communications module.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | GE / Alstom |
| Model | MMLG01R1AB0001E |
| Product Family | MMLG01 |
| Series | MIDOS |
| Product Type | Protection Relay Test Block / Test Terminal Block |
| Mounting | Vertical |
| Circuit Count | 14 circuits |
| Test Plug | MMLB01AXAA0011E |
| Primary Function | Monitoring, isolation, and secondary-injection testing |
| Application | Power-system protection schemes |
| Installation | Protection / relay panel |
| Contact Arrangement | Internal normally closed-through contacts |
| Typical Use | Relay commissioning and maintenance |
| Product Status | Legacy / discontinued configuration |
The MMLG01 design documentation describes each of its 14 circuits as having a pair of rear terminals and internal contacts that maintain circuit continuity during normal service. Inserting the MMLB01 test plug opens the corresponding internal contacts, allowing test equipment to be connected without disturbing the permanent wiring.
The 2023 Sarawak Energy accepted-equipment list continues to identify as the GE test block and MMLB01AXAA0011E as its associated test plug, with the listed voltage application covering equipment up to 500 kV. That voltage-limit entry refers to the approved protection-system application, not a standalone dielectric rating of the test block.
MMLG01R1AB0001E
Related Products
- GE MMLB01AXAA0011E — Multi-finger test plug designed for use with the test block. It provides the physical interface for testing and isolating the protection circuits.
- GE / /1-28 — Earlier configuration associated with the same standard test-block architecture. Verify the exact terminal and mounting arrangement before substitution.
- GE MMLG02 — MMLG-series test block intended for busbar protection applications. Its application differs from the standard .
- GE MMLG07 — Vertical MMLG test-block variant without DC isolation, used in specific protection-panel configurations. It is not automatically interchangeable with .
- Siemens Reyrolle 2RMLG01 — Alternative protection test-terminal-block family from a different manufacturer. It uses its own socket and plug system and should not be treated as a direct replacement.
- ABB RTXP 18/24 — Another protection relay test interface family commonly specified in substation protection panels. Its plug/socket architecture differs from MMLG.
- RMS 4M Series — Protection test-block family providing similar testing functionality with a different mechanical and electrical interface.
- Schneider Electric ETB14 — Alternative test-terminal-block family used for protection testing. Confirm the complete terminal arrangement before considering any replacement.
FAQ
What is GE ?
It is a standard protection test block used in power-system protection panels. It provides controlled access for monitoring, isolation, and secondary-injection testing of protection circuits.
How many circuits does the test block provide?
The design provides 14 circuits. Each circuit is brought out to a separate pair of rear terminals, with internal contacts maintaining the normal service path.
What test plug is used with ?
The documented matching plug is MMLB01AXAA0011E. The test block and multi-finger plug are designed as a matched testing interface.
Can I use an MMLG07 instead of ?
Do not assume so. MMLG07 is a different MMLG configuration, described as a vertical version without DC isolation. The actual protection scheme, circuit requirements, and panel drawings should determine the correct test block.
Does perform relay protection?
No. It contains no protection algorithm comparable to a numerical relay. Its function is to provide a controlled physical test and isolation interface between the protection equipment and associated circuits.
Can I hot-swap the ?
The test block itself is a passive interface, but that does not mean it is safe to remove or insert its associated test plug under arbitrary energized conditions. CT circuits in particular require the approved protection-testing procedure. Follow the relay manufacturer’s and site protection procedure before manipulating any live protection circuit.
What should I verify when buying a New Surplus ?
Check the complete marking, vertical mounting arrangement, terminal layout, circuit count, physical condition, and compatibility with the existing MMLB01AXAA0011E test plug. For an installed substation protection panel, compare the replacement against the wiring drawings rather than relying only on the family name.
