Description
The GE IS220PRTDH1BC 336A5026ADP13 is a distributed I/O module designed for temperature measurement applications within GE Mark VIe turbine control systems. It provides the interface between RTD terminal boards and Mark VIe Ethernet-based control networks.
Key Functions:
- 8-channel RTD input acquisition
- Supports 2-wire, 3-wire, and 4-wire RTD sensor connections
- 14-bit analog-to-digital conversion resolution
- Dual Ethernet communication interface
- Designed for turbine temperature monitoring and protection applications
- Provides channel diagnostics and sensor fault detection capability
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | IS220PRTDH1BC |
| GE Part Number | 336A5026ADP13 |
| Manufacturer | GE |
| Product Family | Mark VIe Speedtronic |
| Product Type | RTD Input I/O Pack |
| Input Type | Resistance Temperature Detector (RTD) |
| Number of Inputs | 8 channels |
| Sensor Connection | 2-wire / 3-wire / 4-wire RTD |
| A/D Resolution | 14-bit |
| Maximum Wire Resistance | 15 ohms bidirectional |
| Common Mode Voltage Range | ±5 V |
| Power Supply | 28 VDC nominal |
| Communication Interface | Dual Ethernet RJ45 |
| Network Speed | 10/100 Mbps auto-negotiation |
| Terminal Interface | RTD terminal board connection |
| Mounting | Mark VIe I/O terminal board assembly |
| Diagnostics | LED indicators, internal self-test, sensor fault monitoring |
| Operating Temperature | Approx. -30°C to +65°C |
| Typical Application | Gas turbine, steam turbine, industrial process monitoring |
Product Introduction
GE IS220PRTDH1BC 336A5026ADP13 Product Introduction

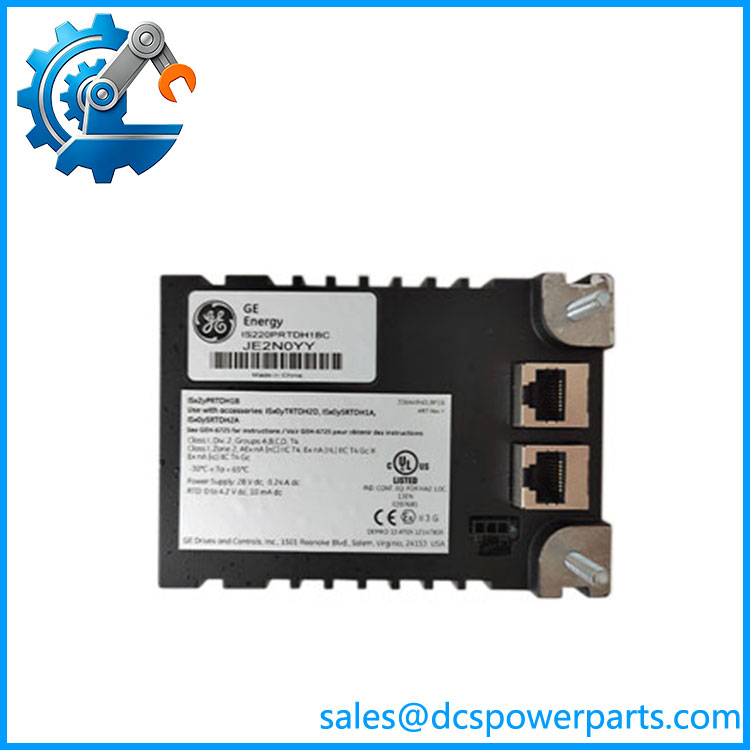

GE IS220PRTDH1BC 336A5026ADP13 is an RTD input I/O pack designed for GE Mark VIe turbine control systems. The module receives temperature signals from resistance temperature detectors installed throughout turbine and auxiliary equipment, converts the resistance values into digital temperature data, and communicates the information to the Mark VIe controller through Ethernet-based I/O networks.
The GE IS220PRTDH1BC 336A5026ADP13 is commonly used for monitoring critical temperature points such as bearing temperatures, winding temperatures, exhaust-related measurements, and auxiliary equipment conditions. The module works together with RTD terminal boards, controller hardware, Ethernet networks, and ToolboxST configuration software as part of a complete Mark VIe control architecture.
The GE IS220PRTDH1BC 336A5026ADP13 is not simply a temperature transmitter interface. It is part of the turbine protection and control signal chain. Correct operation depends on matching RTD sensor type, terminal board configuration, channel scaling, and controller database settings.
IS220PRTDH1BC
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A turbine control system reports abnormal temperature values or intermittent temperature alarms. Field technicians verify the RTD sensor, but the controller continues receiving unstable readings.
Temperature measurement faults are often caused by more than the sensor itself. The complete signal path includes the RTD element, field wiring, terminal board, I/O pack, Ethernet communication, and software configuration.
Typical Applications
Gas Turbine Control
Used for monitoring:
- Bearing metal temperatures
- Compressor and turbine section temperatures
- Generator winding temperatures
- Auxiliary system temperatures
Steam Turbine Systems
Applied for:
- Bearing protection
- Steam system temperature monitoring
- Rotating equipment condition monitoring
Power Generation Plants
Used in:
- Combined cycle plants
- Turbine auxiliary systems
- Generator protection systems
Industrial Process Equipment
Applied for:
- Heater monitoring
- Compressor packages
- Large rotating machinery protection
Technical Pitfalls to Avoid
1. Verify RTD Sensor Configuration
The supports multiple RTD wiring methods. Confirm:
- Sensor type
- Wiring method
- Channel configuration
- Temperature scaling parameters
Incorrect configuration can create measurement offsets even when hardware is healthy.
2. Check Terminal Board Compatibility
The I/O pack must match the installed Mark VIe RTD terminal board. Verify the terminal board part number before replacement.
3. Inspect Field Wiring
Common temperature signal problems include:
- Broken RTD wires
- High resistance connections
- Poor shielding
- Grounding issues
- Moisture contamination at terminals
4. Verify Ethernet Network Health
The module uses dual Ethernet communication paths. Check:
- Network connection status
- Controller assignment
- I/O pack diagnostics
- Firmware compatibility
