Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | GE |
| Model | IS220PDOAH1A |
| Product Type | Discrete Output I/O Pack |
| Series | Mark VIe Speedtronic |
| Function | Relay/discrete output control |
| Output Channels | Up to 12 relay outputs |
| Communication Interface | Dual Ethernet IONet ports |
| Ethernet Speed | 10/100 Mbps |
| Field Interface | DC-37 connector to terminal board |
| Processor Board | BPPB processor board |
| Output Type | Relay driver interface |
| Compatible Terminal Boards | IS200TRLYH2E / H3E / H1F / H2F |
| Control Modes | Simplex, Dual, TMR |
| Power Supply | 28 VDC nominal Mark VIe I/O power |
| Isolation | Electrical isolation between control electronics and field interface |
| Diagnostics | LED status indication and internal monitoring |
| Mounting | Direct mounting on terminal board |
| Application | GE Mark VIe turbine and industrial control systems |
Product Introduction

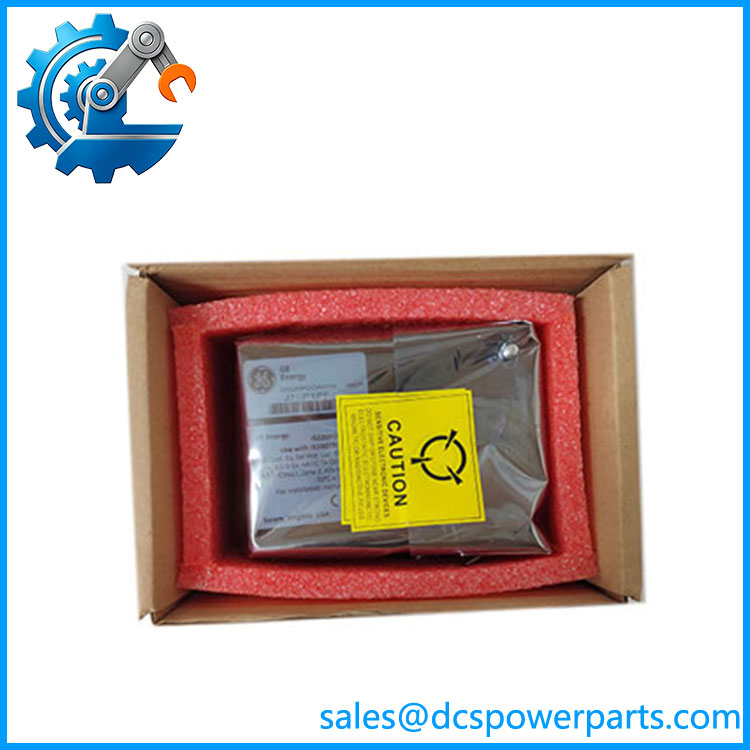

GE IS220PDOAH1A Overview
The GE IS220PDOAH1A is a Mark VIe Discrete Output I/O Pack designed to provide reliable field-level output control within GE Speedtronic turbine control architectures. It connects one or two I/O Ethernet networks from the Mark VIe controller system to discrete output terminal boards, creating the electrical path required to operate relay-based field devices.
The GE IS220PDOAH1A contains a processor board shared across the Mark VIe distributed I/O family and a dedicated acquisition/output board designed specifically for discrete output functions. The module receives output commands through the IONet network, processes those commands, and drives connected relay output circuits through the compatible terminal board assembly.
The GE IS220PDOAH1A supports up to twelve relay output channels depending on the installed terminal board configuration. It is commonly used for controlling turbine auxiliary equipment, shutdown circuits, valve solenoids, alarms, and contactor interfaces. The module supports Simplex, Dual, and Triple Modular Redundant (TMR) control architectures, allowing integration into different availability requirements.
The GE IS220PDOAH1A is not a standalone relay module; its operation depends on the connected terminal board and Mark VIe controller configuration. The terminal board determines the actual field wiring arrangement, relay type, and output characteristics. GE documentation specifies approved terminal board combinations for this I/O pack, including TRLY series relay terminal boards.
When replacing an , engineers should verify the installed terminal board, IONet network configuration, ControlST project settings, firmware compatibility, and control architecture. Installing a physically compatible module without matching the original configuration can result in output mapping errors or communication faults.
IS220PDOAH1A
Application Scenarios & Field Considerations
Engineering Pain Point
A turbine control system reports output command failures, valve control issues, relay faults, or loss of auxiliary equipment operation. The PDOA module may appear to be the cause, but faults can also originate from terminal boards, field wiring, power supplies, or network communication.
Recommended troubleshooting steps:
- Check PDOA diagnostic LEDs
- Verify IONet communication status
- Confirm terminal board identification
- Measure field output signals
- Inspect relay contacts and wiring
- Review Mark VIe diagnostic logs
The provides the output interface, but the complete signal chain determines final actuator operation.
Typical Applications
Gas Turbine Control Systems
Used for:
- Fuel system auxiliary controls
- Valve solenoid operation
- Turbine protection outputs
- Start sequence control
Steam Turbine Systems
Applied for:
- Trip relay interfaces
- Auxiliary equipment control
- Shutdown circuits
Power Generation Plants
Used for:
- Motor starter control
- Alarm outputs
- Mechanical equipment interfaces
Industrial Automation
Applied for:
- Discrete actuator control
- Remote equipment switching
- Process interlock systems
Technical Pitfalls to Avoid
1. Verify Terminal Board Compatibility
Before replacement, confirm:
- Terminal board model
- Relay type
- Wiring arrangement
- Application configuration
The PDOA module depends heavily on the connected terminal board.
2. Check Control Mode Configuration
Verify:
- Simplex operation
- Dual redundancy setup
- TMR architecture
Incorrect configuration can create unexpected output behavior.
3. Inspect Field Wiring
Common issues include:
- Open relay circuits
- Incorrect polarity
- Damaged terminal connections
- Failed external devices
4. Confirm Firmware and ControlST Compatibility
Review:
- I/O pack revision
- Controller firmware
- Application database
- Network configuration
A hardware replacement may require matching software definitions.
