Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | GE (General Electric) |
| Model Number | IS220PDIAH1A |
| CSP Number | 336A4940CSP1 |
| Product Type | Discrete Input I/O Pack |
| Control Platform | Mark VIe Speedtronic Turbine Control System |
| Input Channels | 24 discrete contact inputs |
| Input Type | Dry contact / discrete voltage input |
| Input Voltage | 24VDC nominal |
| Communication Interface | Dual Ethernet ports |
| Network Protocol | GE Mark VIe I/O communication |
| Processor | Local processor integrated in I/O pack |
| Isolation | Electrical isolation between field signals and electronics |
| Installation | Mark VIe distributed I/O terminal board assembly |
| Operating Temperature | Approximately -30°C to +65°C |
| Mounting | Industrial cabinet I/O installation |
| Application | Gas turbine, steam turbine, and rotating equipment control |
Product Introduction
GE IS220PDIAH1A 336A4940CSP1 Overview
The GE IS220PDIAH1A 336A4940CSP1 is a discrete input I/O pack designed for the GE Mark VIe Speedtronic turbine control platform. It receives binary field signals from switches, relays, and status devices, then processes the information for turbine sequencing, monitoring, and protection functions.
The GE IS220PDIAH1A 336A4940CSP1 is commonly found in gas turbine control cabinets where reliable digital signal acquisition is required. The module combines field input processing, local diagnostics, and Ethernet communication in a compact I/O package, allowing maintenance teams to replace failed I/O hardware without redesigning the control architecture.

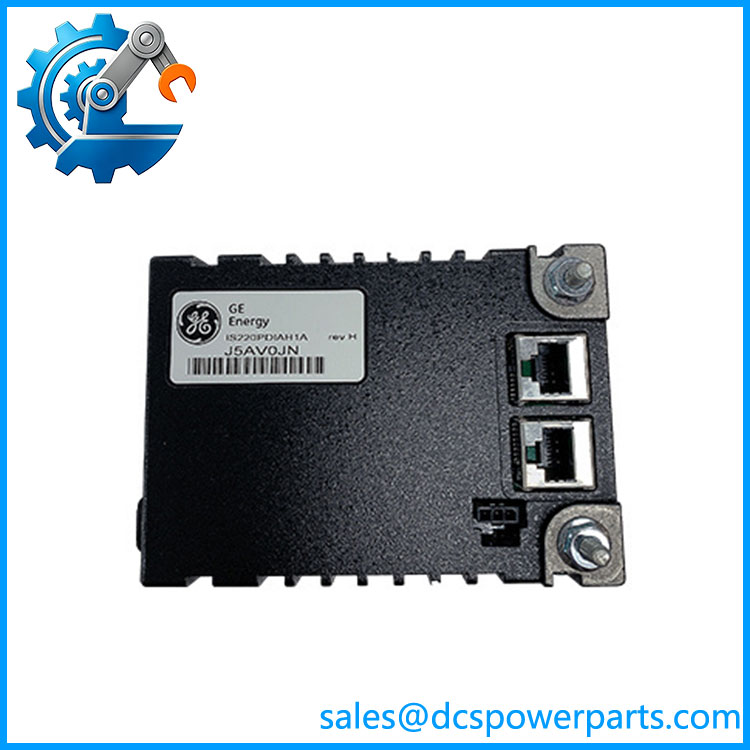

IS220PDIAH1A 336A4940CSP1
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A turbine trip circuit shows an unexpected input fault. Operators see a shutdown indication, but the actual cause is unclear. The field switch may be healthy. The wiring may test correctly. The problem may be inside the I/O chain.
The IS220PDIAH1A handles critical discrete status signals. A single incorrect input reading can affect permissives, alarms, sequencing logic, or protection decisions. Troubleshooting requires checking the complete path: field device, terminal board, wiring, I/O pack, and controller configuration.
Typical Applications
- Gas Power Generation – Turbine limit switches, valve position feedback, auxiliary equipment status, and protection interlocks.
- Oil & Gas Facilities – Compressor packages, emergency shutdown inputs, pressure switch monitoring, and equipment permissive signals.
- Industrial Utility Systems – Boiler auxiliary controls, pump status monitoring, and motor starter feedback.
- Combined Cycle Plants – Balance-of-plant equipment monitoring integrated with Mark VIe turbine control systems.
Technical Pitfalls to Avoid
- Verify Terminal Board Compatibility
The IS220PDIAH1A connects through specific Mark VIe terminal boards. Confirm the installed terminal board model and cable configuration before replacement.
- Check Field Voltage and Contact Type
Do not assume every digital input is interchangeable. Verify whether the application uses dry contacts, powered contacts, 24VDC signals, or another configured input arrangement.
- Confirm Controller Configuration
A replacement I/O pack may require hardware identification checks and configuration verification through the Mark VIe engineering environment. A module that powers up may still be incorrectly mapped.
