Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | GE |
| Model | IS200TPROH1BCB |
| Series | Mark VI Speedtronic |
| Product Type | Protective Termination Board |
| Functional Acronym | TPRO |
| Functional Revision | B |
| PCB Coating | Conformal Coated |
| Application | Turbine protection signal termination |
| Compatible Controller | VPRO Emergency Protection Module |
| Speed Pickup Inputs | 9 passive magnetic pickup inputs |
| Generator Voltage Inputs | 1 generator PT input |
| Bus Voltage Inputs | 1 bus PT input |
| Thermocouple Inputs | 9 channels |
| Analog Inputs | 3 channels (4-20mA / voltage configurable) |
| Sensor Supply | 28VDC provided by VPRO |
| MPU Frequency Range | 2Hz to 20kHz |
| PT Measurement Accuracy | Approx. 0.5% of rated voltage |
| Frequency Accuracy | Approx. 0.05% |
| Phase Measurement Accuracy | Better than 1 degree |
| Isolation Rating | 1500V RMS isolation barrier |
| Terminal Interface | Pluggable terminal blocks |
| Mounting | Mark VI control cabinet rack |
Product Introduction
GE IS200TPROH1BCB Overview
The GE IS200TPROH1BCB is a Protective Termination Board designed for the GE Mark VI Speedtronic turbine control platform. The board provides the electrical termination and signal interface between field protection devices and the VPRO turbine protection processor. It is installed in gas turbine and steam turbine control systems where dedicated protection monitoring is required.
The GE IS200TPROH1BCB manages multiple critical protection-related signals, including turbine speed pickup inputs, generator and bus voltage sensing, exhaust temperature thermocouples, and analog transmitter signals. The board distributes these inputs to the VPRO modules, allowing the protection system to perform monitoring, diagnostics, and voting functions.
The GE IS200TPROH1BCB is not a standard PLC I/O terminal board. It belongs to the turbine protection layer, where signal integrity and correct wiring are directly related to safe turbine operation. Replacement requires confirmation of terminal configuration, board revision, and connected VPRO hardware.

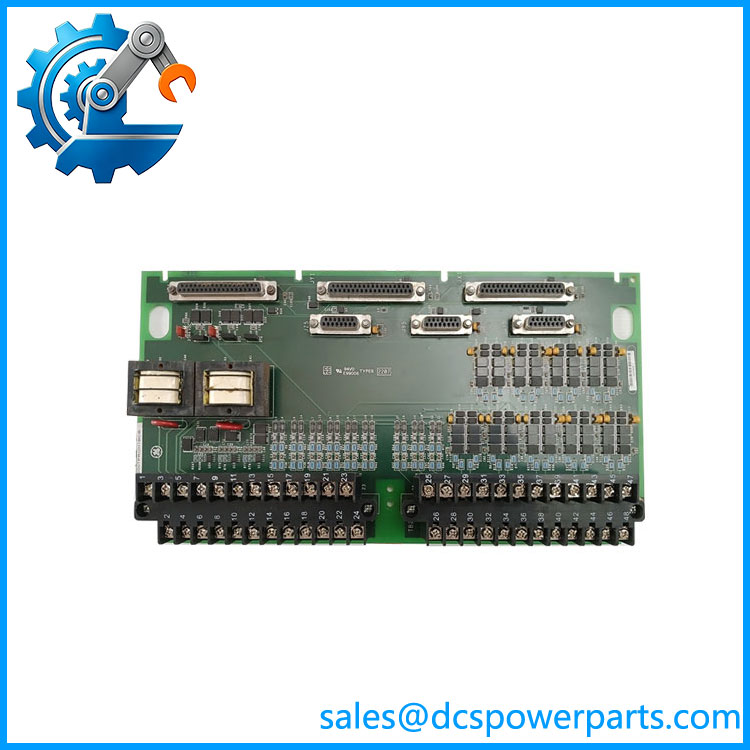

IS200TPROH1BCB
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A turbine protection system generates unexpected alarms, such as speed pickup loss, synchronization failure, or temperature input mismatch. The VPRO processor appears healthy, but one or more field signals become unreliable.
In many cases, the issue is not the protection processor itself. The signal path includes field wiring, terminal boards, connectors, and sensor interfaces. The IS200TPROH1BCB sits between these field devices and the protection logic, making it an important troubleshooting point.
Typical Applications
Gas Turbine Control Systems
Used for:
- Overspeed protection inputs
- Generator synchronization monitoring
- Exhaust temperature protection
- Emergency shutdown signal processing
Steam Turbine Systems
Applied in:
- Speed monitoring
- Trip protection circuits
- Generator voltage supervision
- Critical turbine safety functions
Power Generation Plants
Commonly installed in GE Mark VI cabinets supporting:
- Combined-cycle plants
- Utility turbines
- Industrial power generation units
Technical Pitfalls to Avoid
1. Verify Exact Board Revision
The includes revision identifiers that affect compatibility. Confirm the complete part number before replacement.
2. Check Field Wiring Before Board Replacement
Many protection faults originate from:
- Loose terminal connections
- Shielding problems
- Damaged sensor cables
- Incorrect field termination
Replacing the board without checking wiring can lead to repeated alarms.
3. Confirm VPRO Compatibility
The TPRO board operates as part of the VPRO protection architecture. Verify that the connected VPRO modules, cables, and terminal assignments match the original configuration.
4. Inspect Terminal Identification Data
Mark VI terminal boards include identification information used by the control system for hardware verification. A mismatch can generate configuration or compatibility alarms.
