The JPDV board distributes power to the MVRA, MVRF, up to two controllers, an Ethernet switch, and up to two PIOA I/O packs, depending on the system configuration. It also provides the PIOA interface to DLAN+ and the excitation-control architecture.

Some secondary listings publish values such as 28 VDC board power and 24 VDC outputs, but the same listings also contain inconsistent analog-I/O specifications that do not fit the primary description of the JPDV as a power-distribution board. Those values should therefore be treated as configuration references rather than universal ratings for every IS200JPDVG1AAA installation.

Product Introduction

The GE IS200JPDVG1AAA is a JPDV Power Distribution Terminal Board used in GE Mark VIe turbine control systems. Its principal role is power routing within the control architecture rather than signal acquisition. The board can supply associated Mark VIe controllers, PIOA I/O packs, MVRA/MVRF equipment, and an Ethernet switch according to the installed cabinet configuration.

The board also participates in the migration/interface architecture associated with DLAN+, allowing the PIOA portion of the system to interface with the excitation-control environment. This makes the exact board revision and cabinet wiring important during replacement. The part-number suffix G1AAA identifies the specific functional and artwork revision combination and should be retained when specifying a replacement.

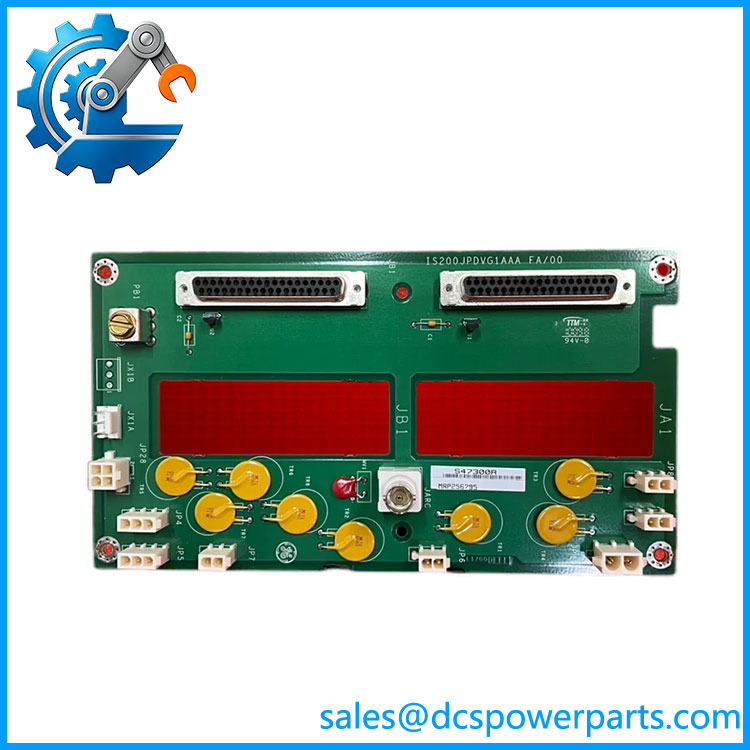

IS200JPDVG1AAA

Application Scenarios & Field Pitfalls — The Engineer’s Perspective

Engineering Pain Point

A JPDV failure can create multiple downstream symptoms because several Mark VIe devices may depend on its power-distribution paths. A controller, PIOA pack, Ethernet switch, MVRA, or MVRF appearing offline does not automatically mean that each affected device has failed. Before replacing expensive downstream hardware, check the JPDV input supply, individual power paths, connectors, cable condition, and cabinet-level distribution first.

Typical Applications

• Mark VIe turbine control cabinets: Used as a central power-distribution point for selected control-system components.
• PIOA-based I/O migration: Provides the power and interface path associated with PIOA I/O packs in the documented architecture.
• MVRA/MVRF installations: Supplies power to these associated assemblies where included in the cabinet configuration.
• Controller and Ethernet-switch distribution: The documented configuration can support power distribution to as many as two controllers and an Ethernet switch.

Technical Pitfalls to Avoid

1. Do not classify the JPDV as a conventional I/O card. Its principal job is power distribution and system interfacing. Treating it like an analog or discrete I/O board can lead to incorrect troubleshooting assumptions.
2. Verify every downstream load before replacement. The actual cabinet may not populate every supported connection. The presence of a JPDV does not mean every MVRA, MVRF, controller, Ethernet-switch, and PIOA output is necessarily used.
3. Check the DLAN+ connection separately. The JPDV provides a DLAN+ interface path in the documented architecture. A communication fault can therefore coexist with, or be mistaken for, a power-distribution problem.
4. Record cable locations before removal. Power and communication connections should be identified by their cabinet documentation and connector designation rather than by physical position alone.
5. Do not substitute solely by the JPDV base designation. The exact IS200JPDVG1AAA revision should be compared with the installed board. Secondary documentation identifies IS200JPDVG1A as the broader family and lists IS200JPDVG1AAA as a common revision.
6. Separate board failure from supply failure. If several dependent devices lose power simultaneously, measure the incoming supply and individual distribution paths before removing the JPDV.

Related Products

• IS200JPDVG1A — Broader JPDV Power Distribution Terminal Board family designation. The exact installed suffix should be verified before substitution.
• IS200JPDEG1A — GE Mark VIe DC battery distribution board; different distribution function and should not be treated as a direct JPDV replacement.
• IS200JPDFG1A — Mark VIe DC power-distribution-related board; verify cabinet architecture before considering any replacement relationship.
• IS200JPDGH1A — Mark VIe power-distribution board associated with source monitoring; function differs from the JPDV.
• PIOA I/O Pack — Associated I/O pack that receives power through the JPDV architecture in applicable installations.
• MVRA — Associated Mark VIe assembly that can receive power from the JPDV.
• MVRF — Associated Mark VIe assembly that can receive power from the JPDV.
• IS200MVRAH2AFC — Mark VIe I/O interface board associated with the broader MVRA architecture.
• IS200PMCIH1A — Mark VIe PC interface board used in a different system function; not a direct JPDV substitute.

Procurement and Replacement Note

For a GE IS200JPDVG1AAA replacement, specify the complete part number and record the board label before removal. Confirm the installed Mark VIe cabinet architecture, connected controllers, PIOA packs, MVRA/MVRF equipment, Ethernet switch, and DLAN+ connection.

Do not rely on a generic statement such as “Mark VI power board.” The JPDV functional designation, G1 group, and AAA revision sequence are part of the identification that needs to match the installed hardware. GE documentation should be used to verify connector assignments and cabinet-level power requirements before energization.

The main procurement risk is misidentifying a downstream power-distribution fault as a failed controller or I/O pack. When several connected devices report simultaneous loss of power or communication, trace the common JPDV supply path first. That diagnostic step can prevent unnecessary replacement of otherwise serviceable Mark VIe components.
