Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | IC200PWR101D |
| Manufacturer | GE Fanuc |
| Product Family | VersaMax PLC |
| Product Type | AC Input Power Supply Module |
| Input Voltage | 85–132VAC (120VAC nominal with jumper) / 176–264VAC (240VAC nominal) |
| Input Frequency | 47–63Hz |
| Input Power | 27VA |
| Output Voltage | 5VDC and 3.3VDC |
| Maximum Output Current | 1.5A total |
| 3.3VDC Output Current | 0.25A maximum |
| 5VDC Output Current | 1.5A minus 3.3VDC load |
| Hold-up Time | 20ms |
| Protection | Short circuit and overload protection |
| Mounting | VersaMax CPU/NIU or Power Supply Booster Carrier |
| Backplane Supply | CPU, NIU, and I/O modules |
| Operating Environment | Industrial control cabinet |
| Hazardous Location Rating | Class I Division 2, Groups ABCD (when applicable) |
Product Introduction
GE Fanuc IC200PWR101D Product Introduction
GE Fanuc IC200PWR101D is a VersaMax PLC power supply module designed to provide backplane power for CPU modules, Network Interface Units, and I/O assemblies. It accepts 120/240VAC input and delivers regulated 5VDC and 3.3VDC power required by VersaMax system components.
The GE Fanuc IC200PWR101D is commonly used in installed VersaMax control systems where maintaining the existing rack architecture is required. Its role is straightforward but critical: unstable supply voltage can create CPU resets, communication faults, and misleading I/O diagnostics. Confirm the rack load and power distribution before installation.

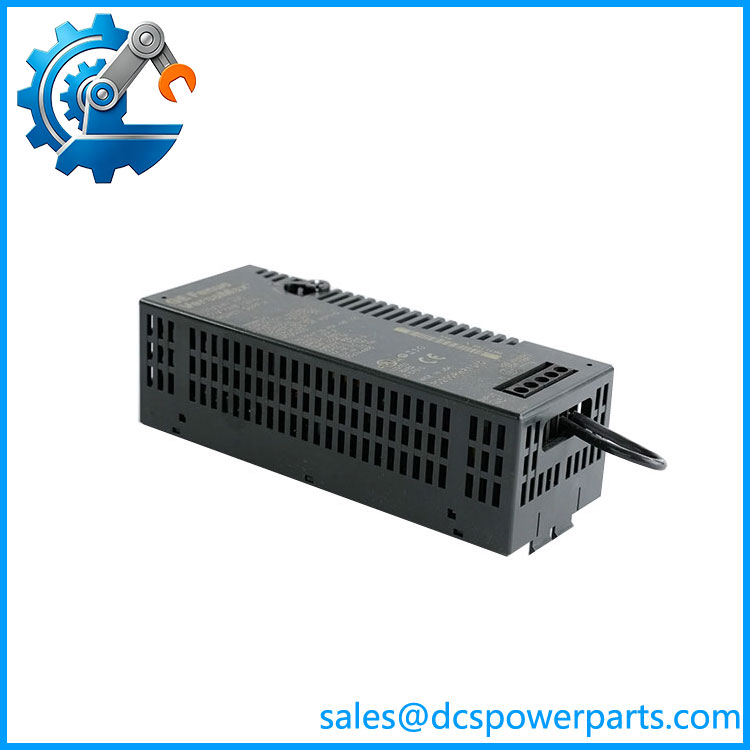

IC200PWR101D
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A production line suddenly loses PLC communication after years of stable operation. The CPU shows intermittent resets, and technicians begin replacing network components and I/O modules.
The power supply is often checked last. That is a mistake.
Aging capacitors, poor AC input quality, or an overloaded backplane can cause symptoms that look like controller or communication failures. The power module feeds the entire station, so any instability affects every connected device.
Typical Applications
- Manufacturing Automation – VersaMax PLC systems controlling assembly lines, conveyors, packaging equipment, and machine sequences.
- Water Treatment – Pump control panels, valve stations, and remote I/O cabinets.
- Power Utilities – Auxiliary control systems, monitoring panels, and equipment interlocks.
- Process Automation – Small PLC-based control skids and local equipment control stations.
Technical Pitfalls to Avoid
- Verify AC Voltage Selection
The IC200PWR101D supports both 120VAC and 240VAC operation, but the input configuration must match the installation voltage. Incorrect jumper configuration can affect expected hold-up performance.
- Check Total Backplane Load
The module provides a maximum of 1.5A combined output current. Adding extra communication modules or I/O expansion without recalculating power consumption can create intermittent failures.
- Inspect Grounding and AC Wiring
Power-related faults are frequently caused by loose terminals, poor grounding, or unstable incoming power rather than a failed power supply module.
Related Products
- GE Fanuc IC200PWR101
Base VersaMax 120/240VAC power supply module. The IC200PWR101D is a revision variant used for the same AC input power supply function. - GE Fanuc IC200PWR102
Expanded 120/240VAC power supply version with increased 3.3VDC output capability. Used for VersaMax systems with higher 3.3VDC demand. - GE Fanuc IC200PWR001
24VDC input VersaMax power supply module. Used where cabinet control power is provided from a DC source instead of AC mains. - GE Fanuc IC200PWR002
24VDC expanded power supply version with increased 3.3VDC capacity for larger VersaMax stations. - GE Fanuc IC200CPU001
VersaMax CPU module family component. The power supply mounts directly with CPU-based control stations. - GE Fanuc IC200CPUE05
VersaMax CPU with Ethernet communication capability. Commonly paired with VersaMax power supply modules. - GE Fanuc IC200CHS006
VersaMax expansion carrier used for additional I/O module installation. - GE Fanuc IC200MDL Series I/O Modules
Digital and analog I/O modules powered through the VersaMax backplane. - GE Fanuc IC200ACC Series Accessories
VersaMax system accessories including carriers and expansion components.
