Power-supply faults in a legacy turbine controller are often misdiagnosed as processor or I/O failures. The GE DS3820PSCB1C1B sits much earlier in that chain: it provides the regulated DC rails required by Mark IV control electronics. Published technical records identify the assembly as an 80–140 VDC input supply with +5 V, +15 V, and −15 V outputs, making it a dedicated power-conversion component rather than a conventional low-voltage PLC power module.

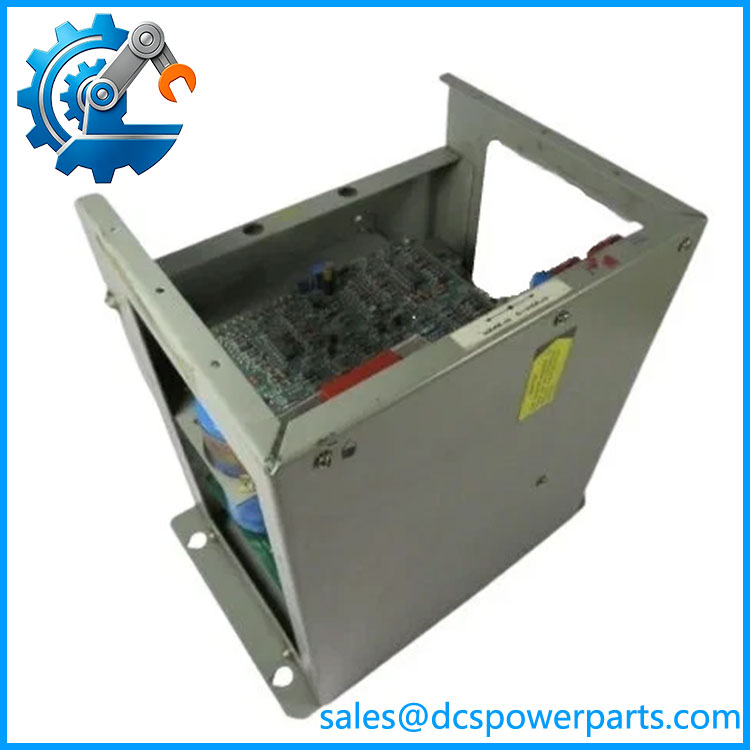

The GE DS3820PSCB1C1B belongs to the DS3800 family used within GE Speedtronic Mark IV turbine-control systems. Its enclosed assembly incorporates multiple boards, protection components, connectors, and an external DS3800XTFP interface board. That construction is important when sourcing a replacement: the correct electrical output rails are necessary, but so are the mechanical configuration, connector arrangement, board revision, and compatibility with the existing Mark IV cabinet.

Key Technical Specifications

The +5 V rail is reported at 7 A, while the complete assembly is commonly documented as a 60 W regulated supply. The physical assembly includes a fuse, circuit breaker, and DS3800XTFP interface board with a 6-pin header and multiple 12-pin connectors.

Application Scenarios & Pain Points

The most important field issue with an old Mark IV power supply is that partial power failure can look like a control-board failure. A marginal supply rail may produce intermittent processor resets, unexplained I/O behavior, or unstable analog signals before the supply fails completely.

• Mark IV gas turbine control: Provides regulated DC power to the control electronics used for turbine sequencing, monitoring, and protection functions.
• Steam turbine control: The Mark IV platform was also applied to steam-turbine control systems, making the PSCB assembly relevant to those legacy installations.
• Legacy turbine maintenance: Useful as a direct replacement candidate when the existing DS3820PSCB assembly has degraded capacitors, failed protection components, or unstable output rails.
• Critical spare inventory: Appropriate for plants maintaining older Speedtronic cabinets where a power-supply failure could take a complete control section offline.

Field note: If the original assembly is still installed, measure the output rails under realistic load before condemning downstream boards. A clean +5 V reading with no load does not prove that the supply will remain stable when the processor and I/O circuitry are drawing current.

DS3820PSCB1C1B

Related Products

• GE DS3820PSCB — Base PSCB power-supply assembly designation associated with the same 80–140 VDC input and multi-rail output architecture.
• GE DS3820PSCB1A1A — Another PSCB assembly variant; confirm the complete suffix before considering substitution.
• GE DS3820PSCC — Mark IV power-supply family member with a different output arrangement; not an automatic substitute.
• GE DS3820PSCC1D1B — Variant associated with the PSC/PSCC power-supply family and different output configuration.
• GE DS3820PS5B — Multiple-output DC power-supply assembly within the DS3800 family.
• GE DS3820PS5D — Another Mark IV power-supply assembly requiring application-specific compatibility checking.
• GE DS3800XTFP — Interface PCB associated with the PSCB assembly; connector configuration should be checked when replacing the complete assembly.
• GE DS3820PSFA — AC-input power-supply module in the same broader Mark IV DS3800 family.

These parts belong to related Mark IV power architecture, but similar part numbers do not establish interchangeability. The input source, regulated rails, connectors, mechanical assembly, and cabinet wiring must all match.

Engineer’s Guide — Field Pitfalls to Avoid

1. Do not substitute based only on the +5 V rating

The DS3820PSCB1C1B does more than provide +5 V. It also supplies positive and negative 15 V rails used by analog and signal-conditioning circuitry.

Avoidance: Verify all three output rails against the cabinet’s wiring and the original supply documentation.

2. Check the high-voltage DC input carefully

The published input range is 80–140 VDC. This is not a conventional 24 VDC PLC power supply.

Avoidance: Confirm the actual cabinet supply before connecting a replacement. Applying the wrong source voltage can destroy the assembly immediately.

3. Inspect the protection components before installation

The assembly incorporates a fuse and circuit breaker, and published descriptions also identify MOV-based transient protection.

Avoidance: If the original supply failed catastrophically, investigate the upstream DC source and downstream load before installing the spare. Otherwise, the replacement can fail for exactly the same reason.

4. Do not ignore the external interface board

The DS3800XTFP board forms part of the assembly’s external interface arrangement. Published descriptions identify one 6-pin header and eight 12-pin female connectors on this board.

Avoidance: Compare connector locations and board markings with the installed unit rather than relying on the base “DS3820PSCB” designation.

5. Check capacitors and insulation on old stock

These assemblies are from a legacy turbine-control generation. Age-related deterioration of electrolytic capacitors, insulation, connectors, and solder joints deserves attention even when a unit appears clean externally.

Avoidance: For used or surplus inventory, request actual photographs and, where possible, a documented powered-load test rather than accepting “powers on” as the complete inspection standard.

FAQ

What is GE DS3820PSCB1C1B?

The GE DS3820PSCB1C1B is a regulated power-supply assembly used in GE Mark IV / DS3800 Speedtronic turbine-control systems. Its documented electrical arrangement is an 80–140 VDC input with regulated +5 V, +15 V, and −15 V outputs.

What voltage does accept?

Published records specify an 80–140 VDC input range. This should be verified against the actual nameplate and cabinet documentation before installation because Mark IV installations can have site-specific power arrangements.

What are the output voltages?

The documented output rails are +5 VDC, +15 VDC, and −15 VDC. The +5 V rail is commonly specified at 7 A, with approximately 60 W total output power reported for the complete assembly.

Where is used?

It is associated with GE Mark IV Speedtronic turbine-control systems, including legacy gas- and steam-turbine applications.

Is interchangeable with DS3820PSCC?

No automatic interchangeability should be assumed. The DS3820PSCC family has a different documented output arrangement. Compare the complete part number, input voltage, output rails, connectors, and cabinet wiring before approving a substitution.

What should I inspect when buying a used ?

At minimum, check the complete part number, board markings, connector condition, fuse/circuit-breaker condition, electrolytic capacitors, visible heat damage, and output-rail test results. For a critical turbine application, a loaded functional test is considerably more meaningful than a basic power-on check.

Can a modern 24 VDC supply replace this module?

Not as a direct replacement. The is designed around the Mark IV’s specific power-distribution architecture, including its 80–140 VDC input and multiple regulated output rails. A modern replacement would require an engineered redesign of the associated power architecture rather than a simple module swap.
