Description
GE DS200TCEBG1ACE | Protective Termination Expander Board | Mark V Turbine Control
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE General Electric |
| Functional part number | DS200TCEBG1A |
| Complete model | DS200TCEBG1ACE |
| Series | Mark V Speedtronic |
| Functional acronym | TCEB |
| Board type | Protective Termination Expander Board |
| CT/PT interface | Signal conditioning/scaling |
| Bayonet connectors | 3 — JWX, JWY, JWZ |
| Signal transformers | 4 |
| 26-pin connector | 1 |
| 10-pin connectors | 4 |
| 20-pin connectors | 3 |
| Mounting | Mark V control core |
| System application | Gas, steam and compatible turbine control systems |
The documented board configuration includes three bayonet connectors, four signal transformers, one 26-pin connector, four 10-pin connectors, and three 20-pin connectors. These physical details are considerably more useful for identification than generic specifications published by some reseller pages.
Important specification caution: I would not publish the commonly repeated claims of 12–48 VDC input, 5 VDC output, 10 A output, IP20, or similar values as DS200TCEBG1ACE electrical specifications. Those values appear on reseller pages without adequate engineering documentation and do not describe the board’s actual primary function.
Product Introduction
The GE DS200TCEBG1ACE is a TCEB Protective Termination Expander Board used within the GE Mark V turbine control architecture. Its role is associated with termination and conditioning of protection-related turbine signals, including CT and PT signals, before those signals are handled by the appropriate Mark V control circuitry.
The board is a field-interface component rather than a standalone controller. Its connector arrangement, transformer population, jumper/revision configuration, and physical position in the Mark V core are therefore important when replacing a failed board.

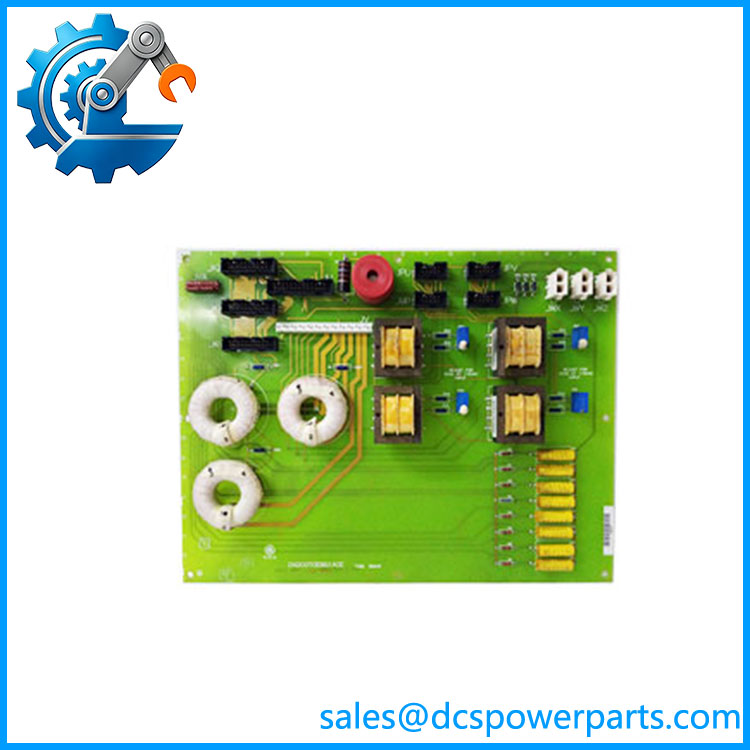

DS200TCEBG1ACE
Application Scenarios & Field Pitfalls — Engineer’s Perspective
Engineering Pain Point
The main replacement risk is misidentification. DS200TCEBG1ACE is sometimes advertised as a communications board, processor card, or overspeed controller. Those descriptions can lead to incorrect spare selection and, more importantly, incorrect assumptions about what signals should be connected to the board.
Typical Applications
- GE Mark V gas turbine control — Protective signal termination and conditioning within the Speedtronic architecture.
- Steam turbine control — Used where the Mark V configuration incorporates the corresponding protection/termination circuitry.
- CT/PT signal interface — Conditioning/scaling of transformer-derived electrical signals for downstream turbine control circuitry.
- Legacy turbine maintenance — Replacement of failed or degraded TCEB boards in existing Mark V installations.
Technical Pitfalls to Avoid
- Do not confuse TCEB with TCEA. The DS200TCEBG1A is documented as a Protective Termination Expander Board. It should not be substituted based only on a similar
TCEprefix. - Do not treat the suffix as cosmetic. The complete
DS200TCEBG1ACEdesignation should be matched against the installed board. Mark V replacement work should account for functional revision and board configuration rather than using onlyDS200TCEBG1A. - Record every cable before removal. The three bayonet connectors and multiple ribbon-style connectors make incorrect reconnection a realistic field risk. Label each cable by connector designation before removing the old board.
- Inspect the transformers and connectors. Because this board contains multiple signal transformers and several connector groups, visual inspection should include transformer damage, connector condition, solder joints, and signs of heat stress.
- Do not use generic Mark V board specifications. The DS200 family contains many visually similar boards with very different functions. Published specifications for another DS200 board should never be transferred to the TCEB.
Related Products
- DS200TCEBG1A — Base functional part number for the Protective Termination Expander Board; complete revision/suffix should be matched before substitution.
- DS200TCEAG1B — Related Mark V TCE-family board encountered in legacy turbine systems; replacement relationship must be verified against the actual control-core configuration.
- DS200TCEAG1BSF — Related legacy TCEA/TCE-family revision cited in replacement documentation; not automatically interchangeable with TCEBG1ACE.
- DS200TBCAG1A — Mark V termination board family with a different field-interface function.
- DS200TBCAG1AFG — Related Mark V termination-board configuration; verify complete suffix and wiring before considering substitution.
- DS200TCCBG1B — Mark V control/termination-related board with a different electrical role.
- DS200SDCCG1A — Mark V SDCC control board; substantially different from the TCEB termination/conditioning function.
- DS200TCEB-series boards — Closely related TCEB hardware where revision and application details must be checked at the board level.
Procurement Note
⚠️ Legacy Mark V model, limited replacement stock available.
For a , the procurement check should focus on:
complete board number → functional revision → connector layout → transformer population → jumper configuration → Mark V core position → existing wiring.
Do not approve a replacement merely because the seller describes it as a “DS200TCEB” or “Mark V communication board.” The traceable functional identification is Protective Termination Expander Board (TCEB).
