Description
EMTECH EMT40024X Regulated Power Supply
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | EMT40024X |
| Manufacturer | EMTECH |
| Product Family | EMT 40000 Series |
| Product Type | Regulated power supply |
| Input Voltage | 200–240 VAC |
| Input Frequency | 45–66 Hz |
| Nominal Output | 27.6 VDC |
| Continuous Output Current | 3 A |
| Peak Output Current | 16 A |
| Output Adjustment Range | 26.0–31.0 VDC |
| Overcurrent Protection | Reported |
| Overtemperature Protection | Reported |
| Fuse | Maximum 30 A reported |
| Installation | Application-dependent; verify installed equipment |
| Typical Use | Control and automation power systems |
| Documentation Status | Exact OEM datasheet should be verified |
The 27.6 VDC output is a particularly important identification point. This is not simply a generic 24 VDC power supply. The available technical record specifically lists 27.60 VDC nominal output and a 26.00–31.00 VDC adjustment range.
Product Introduction

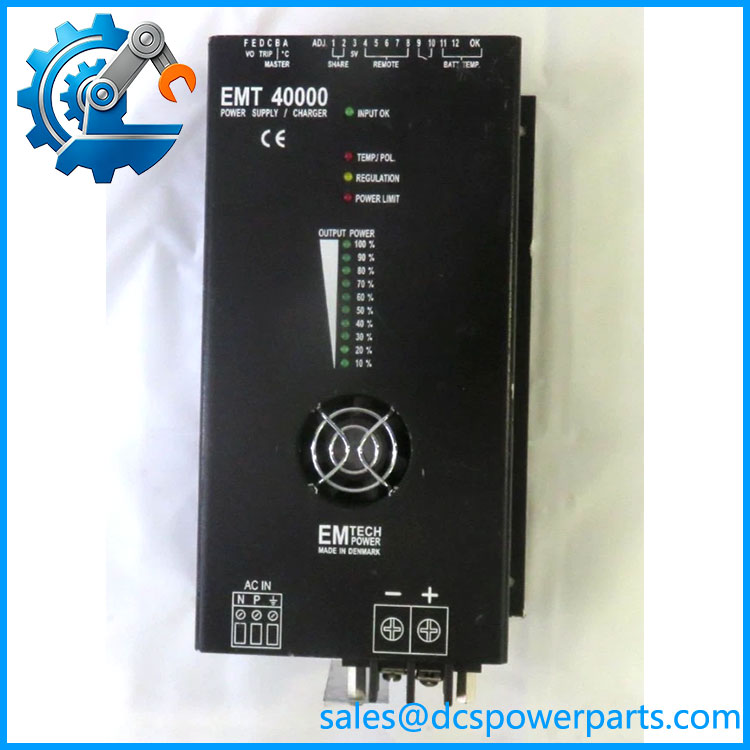

The EMTECH EMT40024X is a regulated DC power supply from the EMT 40000 series. Available equipment records identify it as a power supply/charger used with control equipment, including marine applications, while other records associate the model with industrial automation equipment.
Its reported 200–240 VAC input and 27.6 VDC output make it a specialized control-power component rather than a conventional 24 VDC DIN-rail supply. For replacement work, the 27.6 VDC setpoint, available output current, downstream battery or load arrangement, and cabinet wiring should all be checked before installation.
EMT40024X
Application Scenarios & Field Pitfalls — The Engineer’s Perspective
Engineering Pain Point
The main replacement risk with the EMT40024X is assuming that any 24 VDC industrial power supply can substitute for it. The documented nominal output is 27.6 VDC, which can be intentional in control-power or charging applications. Replacing it with a fixed 24 VDC unit without checking the original electrical design can affect relays, instrumentation, control electronics, battery charging, or undervoltage protection.
Typical Applications
- Marine control panels: Records identify EMT40024X as a regulated power supply/charger used in marine equipment.
- Industrial automation cabinets: Used where a regulated DC control-power source is required.
- Specialized equipment power: The part appears in industrial equipment spare-parts records alongside PLCs, drives, and control-system components.
- Control-system replacement work: Suitable as a direct replacement candidate only after confirming the original power architecture.
Technical Pitfalls to Avoid
- Do not substitute a standard 24 VDC supply automatically. The reported nominal output is 27.6 VDC. Verify why that voltage was selected in the original system.
- Check continuous versus peak current. Available records state 3 A continuous and 16 A peak. Do not size the replacement from the peak figure alone.
- Verify whether the unit is functioning as a charger. Marine equipment records explicitly describe EMT40024X as a power supply/charger. If a battery is connected, charging requirements must be checked before substitution.
- Inspect the input protection scheme. The available specification reports a maximum 30 A fuse. Confirm the actual installed fuse and cabinet protection rather than copying this value blindly.
- Check output adjustment before connecting the load. A reported adjustment range of 26–31 VDC means the setpoint should be measured during commissioning.
- Verify terminal polarity and wiring. Available documentation lists L, N, positive output, and return connections, but the actual cabinet wiring should take precedence over a secondary listing.
Related Products
- EMTECH EMT40024Y — Same EMT family according to available EMTECH product records; exact electrical configuration should be checked before treating it as a substitute.
- EMTECH EMT42024-8 — Another EMT-series power product; output and application should be verified independently.
- EMTECH EMT-40000 — EMT 40000-series designation appearing alongside ; do not assume it represents the same electrical configuration.
- — The exact 27.6 VDC regulated power-supply model addressed here.
- Schneider Electric TSXPSY5520 — Industrial PLC power-supply product seen in the same equipment records, but it is not an automatic electrical substitute for .
Procurement Note
For an replacement, verify the nameplate, input range, 27.6 VDC output setting, continuous load current, battery/charger connection if present, terminal arrangement, cabinet protection, and mechanical mounting.
The public information available for this model is mainly secondary equipment documentation rather than a current OEM technical manual. The 27.6 VDC / 3 A figures are well represented in available records, but safety-critical or charger-related applications should be checked against the installed unit and original panel drawings before procurement approval.
