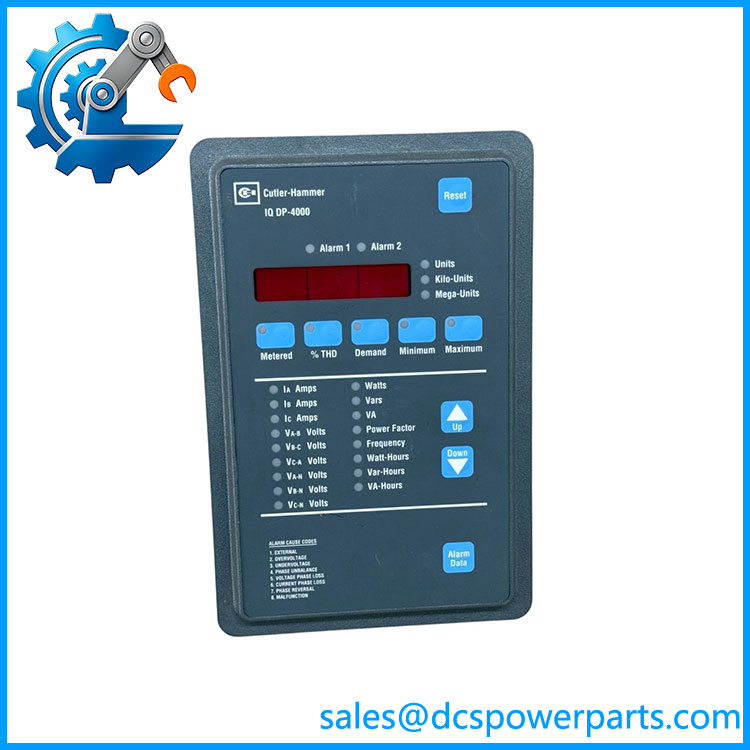

Cutler-Hammer IQ DP-4000
Product Overview
The Cutler-Hammer IQ DP-4000 is a microprocessor-based electrical distribution system monitor designed to consolidate multiple electrical measurement functions into a single panel-mounted instrument. Eaton’s legacy IQ documentation identifies the IQ DP-4000 as a multifunction meter capable of monitoring current, voltage, frequency, real, reactive and apparent power, energy, power factor, and total harmonic distortion. Eaton’s current legacy-product information still lists the IQ DP-4000 and specifically identifies direct reading of more than 74 metered values.
Unlike a basic ammeter or voltmeter, the Cutler-Hammer IQ DP-4000 combines metering, setpoint functions, alarm indication, energy accumulation, and optional communications in one chassis. The original technical manual describes it as both a monitoring and protective device, with optional I/O capabilities for functions such as voltage/current phase-loss detection, phase unbalance, phase reversal, and related alarm functions. The exact protection and I/O capability depends on the particular DP-4000 configuration, so those functions should not be assumed from the model name alone.
The instrument was designed for panel installation in electrical distribution equipment. It can directly monitor three-phase AC lines from 100 to 600 VAC nominal; systems above 600 VAC require external potential transformers. Current measurement likewise depends on the associated current transformers and configured ratios. This makes the CT/PT configuration part of the actual measurement system rather than an incidental accessory.
For legacy switchgear and transfer-switch applications, the Cutler-Hammer IQ DP-4000 remains relevant when an existing panel has been engineered around its display, wiring, CT/PT ratios, setpoints, and optional communications. Eaton documentation also identifies the IQ DP-4000 as a replacement for earlier IQ Data Plus products. That does not mean every DP-4000 configuration is electrically interchangeable; the power-module style, I/O option, communications module, and programmed settings still need to be checked.
Product Introduction
A conventional panel can require separate instruments for current, voltage, watts, VARs, frequency, energy, and power factor. The IQ DP-4000 was designed to consolidate those measurements while retaining local operator access and configurable alarm/setpoint functions.
For a legacy replacement, the real engineering task is configuration matching. Check the power-module type, CT/PT ratios, I/O configuration, communications option, and existing setpoints before treating a replacement unit as a direct substitute.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IQ DP-4000 |
| Manufacturer | Cutler-Hammer / Eaton |
| Product Family | IQ Legacy Power and Energy Meters |
| Product Type | Electrical Distribution System Monitor |
| Measurement Principle | RMS sensing |
| Direct Voltage Measurement | 100–600 VAC nominal, 3-phase |
| Higher Voltage Measurement | External PTs required above 600 VAC |
| Current Measurement | External CT-based |
| Metered Parameters | Current, voltage, watts, VARs, VA, frequency, power factor, demand, energy, THD and related values |
| THD Measurement | Current and voltage |
| Energy | Wh, Varh and VAh |
| Display | Integral operator-panel display |
| Setpoint Configuration | Rear-mounted setpoint switches / programmable functions |
| Communications | Optional communications module; configuration dependent |
| Mounting | Panel / cabinet-door mounting |
| Power Module Options | Separate-source AC, three-phase AC, or DC configurations depending on model |
| Memory | Non-volatile EEPROM for setpoints and alarm snapshot data |
| Status | Legacy / discontinued |
Eaton describes the IQ DP-4000 as providing direct reading of more than 74 metered values, including THD, energy, and maximum demand. The original manual documents multiple power-module configurations, including separate-source, three-phase, and DC versions.
Cutler-Hammer IQ DP-4000
Major Features and Advantages
Multifunction Electrical Metering
The DP-4000 was designed to replace a collection of individually mounted meters. It can display electrical quantities including phase current, line-to-line and line-to-neutral voltage, watts, VARs, VA, power factor, frequency, demand, and accumulated energy. Eaton also identifies current and voltage percent THD as core IQ DP-4000 functions.
That broad measurement set is useful during switchgear commissioning and troubleshooting because technicians can examine several electrical conditions from one operator interface.
True RMS Measurement
The IQ family uses RMS sensing, making the instrument suitable for electrical systems where waveform distortion matters. Eaton specifically states that the IQ DP-4000 measures percent total harmonic distortion for both current and voltage.
This is more informative than relying only on fundamental-frequency current or voltage readings when diagnosing nonlinear loads.
Demand and Energy Monitoring
The instrument records total energy and maximum demand in addition to instantaneous electrical measurements. These functions make the DP-4000 useful for facility electrical distribution monitoring rather than simply local voltage/current indication.
The accumulated values should be checked against the existing installation’s CT/PT ratios and configuration when replacing a unit. A meter can display plausible numbers while still being incorrectly scaled.
Alarm and Protective Functions
The original manual describes the IQ DP-4000 as a monitoring and protective device. Depending on configuration, optional I/O can support conditions including overvoltage, undervoltage, voltage phase loss, voltage phase unbalance, voltage phase reversal, and current phase loss.
This is an important distinction: not every IQ DP-4000 has every optional protection function installed. Confirm the specific catalog configuration and I/O hardware before relying on a replacement for an existing trip or alarm circuit.
Configurable Setpoints
Setpoint switches on the rear of the chassis allow the unit to be tailored to the application. The original manual provides extensive setpoint programming information rather than requiring a conventional PLC programming environment.
For a replacement project, record the existing setpoints before removing the old meter. The hardware can be correct while the operating behavior is wrong if those values are not restored.
Multiple Power-Module Configurations
The IQ DP-4000 family was produced with different power arrangements. The original documentation identifies three-phase power modules, separate-source power modules, and DC power modules. Some configurations allow the power module to be physically separated from the operator chassis using an extension cable.
This is one reason why the phrase “IQ DP-4000 replacement” is not sufficiently precise for procurement. The complete catalog number and installed power module matter.
Related Products
- IQ Analyzer — Higher-function IQ family meter providing extensive power-quality information, including harmonic analysis and waveform capture. It is not simply another name for the DP-4000.
- IQ Data Plus II — Earlier Cutler-Hammer multifunction meter that the IQ DP-4000 was designed to replace in certain applications.
- IQDP4010 — IQ DP-4000 configuration with separate-source power module and without the optional I/O module.
- IQDP4110 — IQ DP-4000 configuration with separate-source power module and I/O capability.
- IQDP4020 / IQDP4120 — DC-powered IQ DP-4000 configurations; Eaton’s catalog identifies IQDP4120 with DC supply, three Form-C relay contacts, and a sync-pulse input.
- IQDP4030 — Three-phase power-module configuration without I/O module.
- IQDP4130 — Three-phase power-module configuration with I/O module.
- IQ DP-4000 Communications Module — Optional communication hardware used for data collection and integration into the Cutler-Hammer PowerNet architecture; communications depend on the installed option.
FAQ
Is the IQ DP-4000 a PLC?
No. It is a microprocessor-based electrical distribution system monitor. It performs metering, setpoint, alarm, and optional protective functions, but it is not a general-purpose PLC CPU.
What electrical quantities can it measure?
The DP-4000 can measure current, voltage, real power, reactive power, apparent power, frequency, power factor, demand, energy, and current/voltage THD. Eaton states that more than 74 metered values can be read directly.
Can I connect it directly to a 480 VAC system?
Yes, within the documented 100–600 VAC nominal direct-measurement range, provided the particular installation and wiring configuration are correct. Above 600 VAC, external potential transformers are required.
Can I hot-swap an IQ DP-4000?
Do not treat it as a hot-swappable module. The DP-4000 is a panel-mounted electrical instrument connected to potentially hazardous AC voltage and CT circuits. De-energize and isolate the relevant sources according to the approved electrical maintenance procedure before removing it. CT circuits require particular care because an energized open CT secondary can produce hazardous voltage.
Does it support Modbus RTU?
Communication capability depends on the installed communications option and exact configuration. Eaton documentation identifies optional communications for the IQ family, while specific catalog configurations can include Modbus RTU over RS-485. Do not assume that every older IQ DP-4000 contains the same communications hardware.
Does the DP-4000 retain settings after power loss?
The original documentation identifies non-volatile EEPROM for retaining setpoints and saving a snapshot of metered values following an alarm condition.
Even so, capture the existing setpoint sheet before replacement. That is the practical backup and gives you something to compare against after commissioning.
What should I verify before purchasing a replacement?
For a legacy IQ DP-4000 installation, verify:
- Complete catalog/style number, not only “IQ DP-4000.”
- Three-phase, separate-source, or DC power-module configuration.
- Presence and type of I/O module.
- CT ratios and wiring.
- PT ratio and voltage configuration.
- Existing alarm and protective setpoints.
- Communications module and protocol.
- Operator-panel and chassis condition.
- Firmware/hardware revision where applicable.
- Whether the replacement has been electrically tested.
For older switchgear, configuration matching is more important than simply matching the IQ DP-4000 name. Eaton’s own documentation lists several hardware configurations and replacement-part combinations, so the catalog number should be confirmed from the installed nameplate before procurement.
