Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 3500/53 |
| Part Number | 133388-01 |
| Manufacturer | Bently Nevada |
| Product Family | 3500 Machinery Protection System |
| Product Type | Electronic Overspeed Detection Module |
| Primary Function | Overspeed detection and machinery protection |
| Input Type | Proximity probe or magnetic pickup |
| Input Signal Range | +10.0 V to -24 V |
| Input Impedance | 20 kΩ |
| Typical Power Consumption | 8.0 W |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Maximum Humidity | 95%, non-condensing |
| Rack Interface | 3500 system backplane |
| Required I/O Module | 133396-01 Overspeed Detection I/O Module |
| Voting Architecture | 2oo2 or 2oo3 |
| Application | Turbines, compressors, generators, other critical rotating machinery |
The original 3500/53 specification identifies 133388-01 as the Overspeed Detection Module and 133396-01 as the corresponding Overspeed Detection I/O Module. The system supports two-channel or three-channel configurations, allowing redundant voting architectures.
For an existing 3500 rack, Bently Nevada documentation specifies minimum system software and firmware baselines when adding the 3500/53: 3500/20 firmware Revision G, 3500/01 Version 2.00, 3500/02 Version 2.03, and 3500/03 Version 1.13, or later. Redundant power supplies are also required for a rack containing the Overspeed Detection System.
Application Scenarios & Pain Points
Overspeed protection is one of the few machinery-protection functions where a false assumption during replacement can have consequences well beyond a nuisance alarm. The module must be evaluated as part of the protection chain, not as an isolated circuit board.
- Steam turbines: Used to monitor turbine shaft speed and initiate the appropriate protection response when configured overspeed limits are exceeded.
- Gas and centrifugal compressors: Suitable for rotating equipment where loss of speed protection could expose the train to serious mechanical damage.
- Power-generation equipment: The 3500/53 forms part of a machinery protection arrangement where redundant tachometer signals and voting logic may be required.
- Petrochemical machinery: Its API-oriented overspeed protection design makes it relevant to critical rotating assets in process plants.
Field note: If a 3500/53 reports an abnormal speed signal, do not immediately replace the module. Check the pickup, cable shielding, probe gap, signal amplitude, and rear I/O module first. A weak magnetic-pickup signal can look remarkably similar to an electronic detection problem.

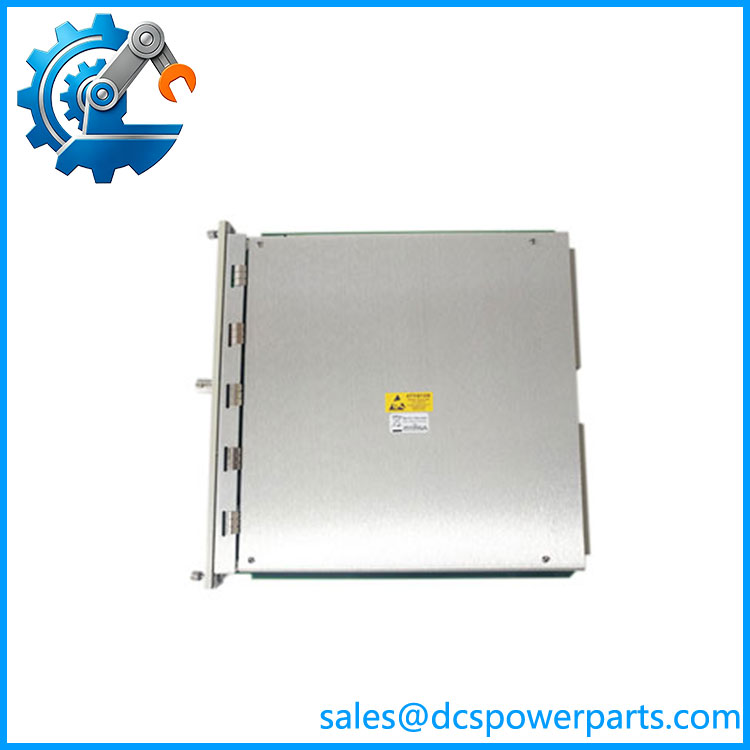

133388-01
Related Products
- Bently Nevada 133396-01 — Overspeed Detection I/O Module. It provides the field-side interface associated with the 3500/53 and should be verified alongside the electronic detection module.
- Bently Nevada 3500/20 — Rack Interface Module. It manages rack-level communication and configuration functions. Firmware Revision G or later is specified when adding a 3500/53 to an existing system.
- Bently Nevada 3500/15 — Power Supply Module for the 3500 rack. A 3500/53 protection system requires appropriate rack power architecture, including redundant power supplies.
- Bently Nevada 3500/42M — Four-channel position monitor commonly used for radial vibration, thrust position, differential expansion, or other position-related measurements. It complements overspeed protection but performs a different monitoring function.
- Bently Nevada 3500/50 — Tachometer module for speed measurement and related functions. It should not be assumed to replace the dedicated overspeed protection role of the 3500/53.
- Bently Nevada 3500/22M — Transient Data Interface used for system data collection and host communication. It supports monitoring infrastructure rather than providing the dedicated overspeed detection function.
- Bently Nevada 3500/53 133388-01 — Exact electronic overspeed detection module specified here. For redundant arrangements, multiple 3500/53 modules can be configured for 2oo2 or 2oo3 voting.
- Bently Nevada 134129-01 — Firmware IC listed as a spare associated with the 3500/53 system. Firmware identification should be checked when servicing older hardware.
The Engineer’s Guide: Field Pitfalls to Avoid
⚠️ Do not treat 3500/53 as an ordinary speed monitor.
Its purpose is electronic overspeed detection and protection, not simply displaying RPM. The protection logic and voting arrangement are part of the safety function.
How to avoid it: Document the existing voting architecture before removing a module. If the machine uses 2oo3 protection, replacing one module must not accidentally leave the system operating in an unintended configuration.
⚠️ Check the rear I/O module.
The 3500/53 uses the associated 133396-01 Overspeed Detection I/O Module.
How to avoid it: Confirm the rear I/O part number, terminal condition, wiring, and field sensor type before commissioning the replacement.
⚠️ Firmware and software compatibility matters.
When adding a 3500/53 to an existing rack, the published minimum baseline includes 3500/20 Revision G, 3500/01 v2.00, 3500/02 v2.03, and 3500/03 v1.13.
How to avoid it: Record the existing rack firmware and software versions before ordering. A physically correct module can still create commissioning problems if the host system is below the required baseline.
Frequently Asked Questions (FAQ)
What is Bently Nevada 3500/53 133388-01?
It is an Electronic Overspeed Detection Module for the Bently Nevada 3500 Machinery Protection System. Its job is to detect excessive rotating speed and participate in the machinery protection trip function.
What type of sensors can the 3500/53 accept?
The module can accept signals from compatible proximity probe transducers or magnetic pickups. The published input range is +10.0 V to -24 V, with an input impedance of 20 kΩ.
Can one 3500/53 provide redundant overspeed protection by itself?
No. Redundant voting requires multiple 3500/53 modules. The system documentation specifies two-channel or three-channel configurations, allowing 2oo2 or 2oo3 voting arrangements.
Does 3500/53 require a special I/O module?
Yes. 133396-01 is identified as the Overspeed Detection I/O Module associated with the 3500/53 system. Do not assume that a standard 3500 monitor I/O block can substitute for it.
Can I add a 3500/53 to an existing 3500 rack?
Potentially, but check the complete rack first. Bently Nevada’s published requirements specify minimum 3500/20 firmware Revision G, specific 3500 software versions, and redundant rack power supplies for an existing system installation.
What should I verify when purchasing a refurbished 3500/53 133388-01?
Ask for evidence of:
- Exact 133388-01 identification.
- Hardware and firmware revision.
- Power-up and self-diagnostic results.
- Tachometer input testing.
- Overspeed threshold/alarm testing.
- Relay output verification.
- Rear I/O compatibility.
- Condition of the front connector and board edge contacts.
For this particular module, a basic power-on test is not enough. A meaningful test should exercise the speed input and protection response, ideally with calibrated test equipment.
