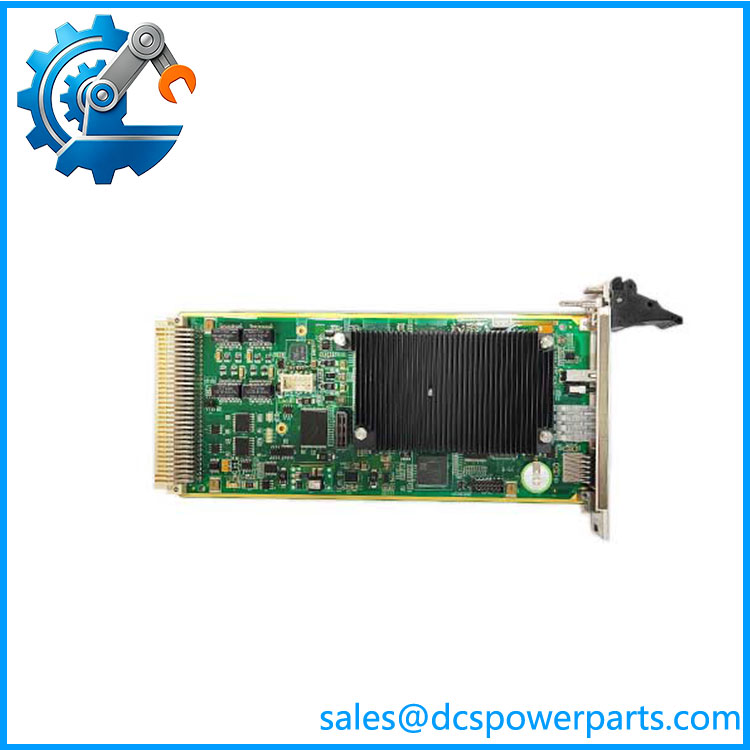

ALSTOM MLU VER.A01 | New Surplus Control Module

ALSTOM MLU VER.A01 | New Surplus Control Module

  • Model: MLU VER.A01
  • Brand: ALSTOM
  • Series: ALSTOM MLU / Main Logic Unit
  • Core Function: Provides central logic-processing and coordination functions within the compatible ALSTOM control architecture.
  • Product Type: Main Logic Unit / Control Module
  • Key Specs: Hardware revision A01; rack/backplane-based architecture; system-dependent control and communication interfaces
Add To Quote
Category: SKU: ALSTOM VER.A01

Description

Product Overview

The ALSTOM MLU VER.A01 is a legacy ALSTOM Main Logic Unit associated with rack-based control hardware. The MLU designation is used for a central logic/control function, distinguishing this assembly from dedicated E32OUT digital-output modules, AOVD analog-output modules, and DIAGNOSTICA monitoring hardware found in the same broader ALSTOM equipment ecosystem. Available references consistently list MLU VER.A01 as an ALSTOM control module, while technical descriptions identify it specifically as a Main Logic Unit.

At system level, the ALSTOM MLU VER.A01 provides logic processing and coordination for associated control functions. Its practical role depends on the host cabinet, backplane, connected I/O assemblies, and system software. This is not a generic PLC CPU that can be evaluated independently from the installed architecture. The A01 hardware revision should be treated as part of the procurement identification because legacy ALSTOM systems can have revision-specific hardware and software dependencies.

The ALSTOM MLU VER.A01 appears in the same legacy ALSTOM product family as ECPU_1, E32OUT, AOVD, DIAGNOSTICA, VIOC, and other control modules. That context is useful when rebuilding a discontinued rack, but it does not establish interchangeability between those assemblies. Public technical information is limited, and some secondary listings publish unsupported values such as 220 VAC input or 50 kHz output frequency. Those figures should not be treated as verified specifications for the MLU VER.A01.

Key Technical Specifications

Parameter Value
Manufacturer ALSTOM
Model MLU VER.A01
Product Designation Main Logic Unit
Hardware Revision A01
Product Type Central Logic / Control Module
Primary Function Logic processing and control coordination
System Architecture ALSTOM legacy rack-based control system
Rack Interface Backplane dependent
Field I/O Via associated I/O modules
Communication System dependent
Processor Type Not reliably confirmed
Processor Speed Not reliably confirmed
Memory Capacity Not reliably confirmed
Input Voltage Not reliably confirmed
Power Consumption Not reliably confirmed
Operating Temperature Not reliably confirmed
Firmware System/revision dependent
Mounting Rack-mounted plug-in module
Condition New Surplus, subject to inspection and functional testing

Specification caution: A secondary listing describes the unit as a rack plug-in card and claims a typical 24 VDC backplane supply, but this information is not sufficiently corroborated by primary ALSTOM documentation. Another listing incorrectly reports 220 VAC and 50 kHz, illustrating why generic online specifications should not be copied into an engineering datasheet.

MLU VER.A01

Related Products

  • ALSTOM N895600512D / N895600051C / ECPU_1 / N895600200Q — Central processor assembly from the same legacy ALSTOM ecosystem. It has a central processing role, but its architecture and hardware identification differ from MLU VER.A01.
  • ALSTOM N895609510K / N895609010R / E32OUT / N895609100P — Digital-output module. It receives control commands and provides discrete field outputs, making it a downstream companion to central logic hardware.
  • ALSTOM N897066510E / N897066010M / AOVD / N897066000A — Analog-output module. It provides analog field signals rather than central logic processing.
  • ALSTOM N897093511D / N897093051D / DIAGNOSTICA / N897093400H — Diagnostic module used for system monitoring and fault analysis. It complements the MLU rather than replacing it.
  • ALSTOM 42011-106-00 A01 / ITC_VIOM_VIOC VER.A01 — VIOC I/O-processing board. Its primary function is associated with I/O processing within the ITC/VIOM/VIOC architecture.
  • ALSTOM SDK-C0148 / 12003-101-01 / SBS05M09B — Legacy ALSTOM control module. It may occupy a related rack environment but should not be substituted for an MLU without documented compatibility.
  • ALSTOM SDK-C0167-1 / 12004-08-01 / SBS07M076B — Another legacy control/interface board. Its different identification indicates a different hardware function.
  • ALSTOM 12004-102-01 / VPS BOARD VER.C — VPS power/interface board. It supports rack-level infrastructure rather than providing the main logic function.



Frequently Asked Questions

1. What is ALSTOM MLU VER.A01 used for?

MLU is identified in available technical references as Main Logic Unit. It serves the central logic/control role within a compatible ALSTOM legacy control architecture.

It should therefore be evaluated as a central control assembly rather than a basic I/O module.

2. Is MLU VER.A01 the same as ECPU_1?

No—not based on the available identification.

Both are associated with central control processing, but they carry different ALSTOM designations and part-number families:

  • MLU VER.A01 — Main Logic Unit
  • N895600512D / ECPU_1 — ECPU_1 processor assembly

A replacement should match the original part number and system architecture rather than relying on a general description such as “CPU module.”

3. Can I replace MLU VER.A01 with another ALSTOM processor?

Only after system-level compatibility has been established.

Check:

  1. Hardware revision
  2. Rack/backplane
  3. Connector arrangement
  4. Firmware
  5. Application configuration
  6. Memory requirements
  7. Associated I/O modules
  8. System diagnostics after startup

A different ALSTOM processor may fit physically but still fail to execute the installed application.

4. Can I hot-swap the MLU VER.A01?

Do not assume hot-swap capability.

This is a central logic module. Removing it while energized could stop control execution or cause associated I/O modules to enter a fault state.

Unless the specific ALSTOM system documentation explicitly permits energized replacement, use the approved shutdown and isolation procedure.

5. Will I lose my control logic if I replace the MLU?

Potentially, depending on how the particular ALSTOM system stores its application and configuration.

Before replacement, preserve:

  • Application/configuration files
  • Firmware version
  • Hardware revision
  • Communication settings
  • Rack configuration
  • Diagnostic parameters

The key point is that a replacement MLU should be treated as a configured control-system component, not merely a plug-in electronic spare.

6. Does MLU VER.A01 support firmware v3.1?

There is no reliable evidence establishing firmware v3.1 as a universal firmware requirement for MLU VER.A01.

For a legacy replacement, compare the firmware/software revision of the existing unit with the proposed spare. Do not install a newer firmware image simply because the version number is higher.

7. How should I verify a New Surplus MLU VER.A01?

For this type of central logic module, quality control should include:

  • MLU marking
  • VER.A01 revision
  • PCB identification
  • Connector/backplane condition
  • Component condition
  • Evidence of corrosion or storage damage
  • Rack compatibility
  • Firmware/configuration compatibility
  • Controlled power-up
  • Processor self-diagnostics
  • Communication with associated modules
  • Application execution
  • I/O response verification

Procurement judgment: The available evidence supports identifying ALSTOM MLU VER.A01 as a Main Logic Unit/control module, but detailed electrical specifications remain poorly documented. For a critical legacy installation, the safest purchasing basis is the exact MLU VER.A01 marking plus physical inspection and system-level testing, rather than an unverified generic specification sheet.
