Description
Product Overview

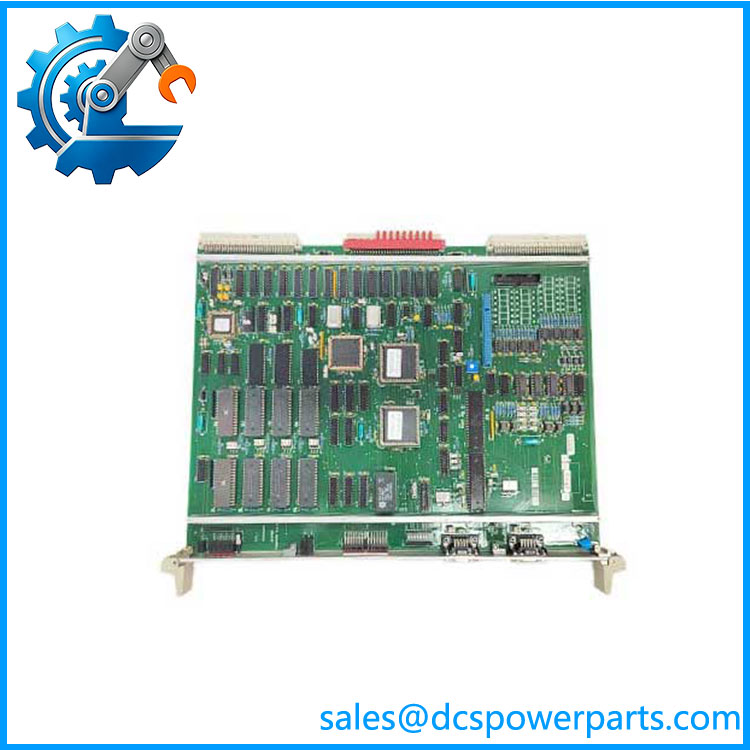

The ALSTOM N895600512D N895600051C ECPU_1 N895600200Q is a legacy ALSTOM central processing assembly identified by the ECPU_1 functional designation. The complete identification chain is important because N895600512D, N895600051C, and N895600200Q can appear as different assembly or board references for the same ECPU-related hardware. Within the broader ALSTOM control architecture, ECPU_1 occupies a fundamentally different position from dedicated digital-output, analog-output, or diagnostic modules.
At system level, the ALSTOM N895600512D acts as the processing element that coordinates control functions with the surrounding I/O and interface hardware. It is therefore the type of board that plant engineers should evaluate as part of the control-system execution path rather than as a simple field I/O card. The processor interacts with associated ALSTOM modules through the host rack and system communication architecture, with the exact configuration determined by the installed control platform.
The ALSTOM ECPU_1 N895600200Q is particularly relevant when maintaining an older ALSTOM installation where replacing the processor requires attention to both hardware and software configuration. A physically compatible processor is not necessarily a functional substitute if its firmware, application configuration, memory contents, or system revision differs. To be completely transparent, publicly available documentation for this exact part-number combination is limited, and secondary listings contain conflicting technical details. I would therefore avoid publishing unsupported CPU speed, memory capacity, supply voltage, or communication-port specifications as fixed values without the original ALSTOM documentation.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ALSTOM |
| Primary Part Number | N895600512D |
| Associated Part Number | N895600051C |
| Functional Designation | ECPU_1 |
| Additional Assembly Number | N895600200Q |
| Product Type | Central Processing Unit / Controller Module |
| Primary Function | Central control-system processing |
| System Architecture | ALSTOM legacy rack-based control system |
| Host Interface | System/backplane dependent |
| I/O Coordination | Via associated ALSTOM I/O modules |
| Application Memory | Not reliably confirmed |
| Processor Type | Not reliably confirmed |
| Processor Speed | Not reliably confirmed |
| Communication Interfaces | System dependent |
| Firmware | ECPU/system dependent |
| Operating Temperature | Not reliably confirmed |
| Mounting | Compatible ALSTOM rack |
| Field I/O | Via separate I/O modules |
| Condition | New Surplus, subject to inspection and functional testing |
Technical caution: The strongest identification evidence supports ECPU_1 as a central processor assembly, but publicly available sources do not provide sufficiently consistent primary documentation for exact CPU speed, memory size, network ports, or electrical ratings. Those values should be verified against the installed board and ALSTOM system documentation.
N895600512D
Related Products
- ALSTOM N895609510K / N895609010R / E32OUT / N895609100P — Digital-output hardware. E32OUT handles discrete output commands generated by the processor, making it a downstream companion rather than an alternative to ECPU_1.
- ALSTOM N897066510E / N897066010M / AOVD / N897066000A — Analog-output module. It provides analog control outputs while ECPU_1 performs the central processing.
- ALSTOM N897093511D / N897093051D / DIAGNOSTICA / N897093400H — Diagnostic module used for system monitoring and fault information. It complements the central processor rather than replacing it.
- ALSTOM N895313512X / N95313012D / SUP-AL / N895313000R — Supervision/auxiliary control hardware within the same legacy ALSTOM ecosystem. Its system role differs from ECPU_1.
- ALSTOM 42011-106-00 A01 / ITC_VIOM_VIOC VER.A01 — VIOC I/O processing board. It performs I/O-related processing in the ITC/VIOM/VIOC architecture, whereas ECPU_1 serves central processing duties.
- ALSTOM SDK-C0148 / 12003-101-01 / SBS05M09B — Legacy ALSTOM control module. It may be installed in a related control environment but is not a processor substitute.
- ALSTOM SDK-C0167-1 / 12004-08-01 / SBS07M076B — Related legacy control/interface board. Similar rack construction does not establish processor compatibility.
- ALSTOM 12004-102-01 / VPS BOARD VER.C — VPS power/interface board. It supports rack-level infrastructure rather than executing the central application logic.
Frequently Asked Questions
1. What is ALSTOM N895600512D N895600051C ECPU_1 N895600200Q?
It is an ALSTOM ECPU_1 central processor assembly for a legacy control-system architecture.
Unlike E32OUT or AOVD modules, which handle field outputs, ECPU_1 sits at the processing level and coordinates the control application with the associated I/O and diagnostic hardware.
2. Is ECPU_1 the main PLC/DCS CPU?
Functionally, it should be treated as central processor hardware, but the exact system architecture determines what portion of the application it executes.
Do not assume it behaves like a modern standalone PLC CPU with an independent programming port and removable memory card. Legacy ALSTOM systems often distribute processing, I/O, diagnostics, and configuration across multiple assemblies.
3. Can I replace with N895600051C or N895600200Q?
These identifiers are associated with the same ECPU_1 hardware family, but they should still be checked against the actual board markings and system documentation.
Before substitution, compare:
- Complete part number
- PCB revision
- ECPU designation
- Firmware revision
- Memory/configuration
- Rack position
- Backplane interface
- Host-system software
- Communication configuration
Do not purchase on the base N895600 number alone.
4. Will I lose my PLC/DCS logic when replacing ECPU_1?
This is the most important replacement question.
The answer depends on where the ALSTOM system stores its application program and configuration. A processor swap can leave the hardware unable to execute the application if the replacement CPU does not contain the required configuration or compatible firmware.
Before removal:
- Record processor and revision numbers.
- Record firmware/software versions.
- Back up available application/configuration data.
- Document communication settings.
- Photograph connector and rack positions.
- Confirm the replacement’s configuration before startup.
A replacement CPU that is electrically compatible can still fail at the software/configuration level.
5. Can I hot-swap the ECPU_1?
I would not assume it.
A central processor is substantially more consequential to the control system than an ordinary output module. Removing an energized ECPU can stop application execution, interrupt communication, and place dependent I/O into a defined fault state.
Unless the specific ALSTOM system documentation explicitly permits energized replacement, use the approved shutdown and maintenance procedure.
6. Does ECPU_1 support firmware v3.1?
There is no sufficiently reliable public evidence to state that firmware v3.1 is a supported or required version for .
For a processor replacement, firmware compatibility should be checked against the complete ECPU hardware revision and host control-system software. A newer firmware image is not automatically better for a legacy installation; it must match the system revision.
7. How should I verify a New Surplus ECPU_1 before installing it?
For a central processor, inspection should be stricter than for a basic I/O board.
Verify:
- N895600051C
- ECPU_1
- PCB and hardware revision
- Processor/component condition
- Connector and backplane contacts
- Battery or retained-memory components, if fitted
- Firmware/software revision
- Configuration status
- Rack compatibility
- Power-up diagnostics
- CPU self-test
- Communication with associated I/O
- Application execution
Procurement judgment: Treat / / ECPU_1 / as a processor assembly requiring configuration and firmware verification, not simply as a plug-in replacement card. For a plant-critical legacy system, the replacement should be tested against the actual rack architecture before being placed into service.
