ABB S-073N 3BHB009884R0021 | ACS6000 IGCT Phase Module for MV Drive Systems

Description

Key Technical Specifications

Product Introduction

ABB S-073N 3BHB009884R0021 Product Introduction

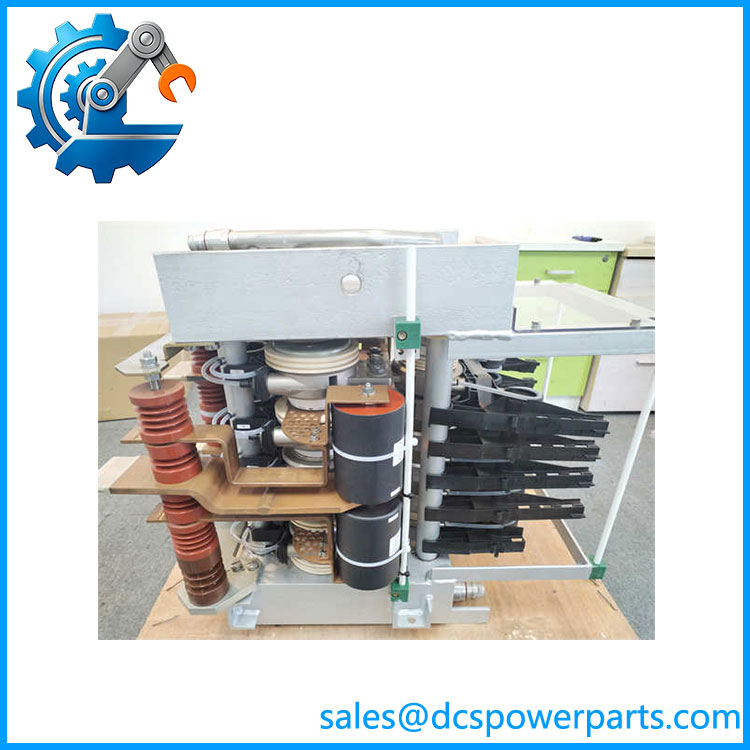

ABB S-073N 3BHB009884R0021 is an ACS6000 medium voltage drive phase module designed for power conversion inside ABB modular inverter systems. The module contains the high-power switching elements required for converting electrical energy and controlling motor operation in demanding industrial drive applications.

The importance of ABB S-073N 3BHB009884R0021 is maintaining installed ACS6000 drive systems where a failed phase module can stop a critical motor application. Before replacement, engineers should verify the complete phase assembly, semiconductor matching requirements, cooling connections, and drive firmware compatibility.

S-073N 3BHB009884R0021

Application Scenarios & Field Pitfalls (The Engineer’s Perspective)

Engineering Pain Point

A large motor suddenly trips during production, and the drive reports a power stage fault. The control software may still be functioning correctly, but the inverter section cannot deliver the required voltage and current to the motor.

For medium voltage drives, phase modules are not simple plug-in electronics. They are part of a matched power conversion assembly. Replacement requires careful hardware verification.

Typical Applications

• Mining Operations – Variable speed control for crushers, conveyors, pumps, and large ventilation fans.
• Metals Industry – Motor control for rolling mills, cooling systems, and production line drives.
• Power Generation – Large auxiliary motor applications including boiler fans, pumps, and compressors.
• Oil & Gas Facilities – Medium voltage drives for compressors, injection pumps, and process equipment.

Technical Pitfalls to Avoid

1. Check Phase Module Matching Requirements
   Do not mix phase modules with different semiconductor or clamp diode configurations in the same inverter assembly. Verify the installed hardware revision before replacement.
2. Inspect Cooling System Condition
   Thermal stress is a common contributor to power semiconductor failures. Check cooling fans, liquid circuits, filters, and temperature monitoring before installing a replacement module.
3. Verify Water Connector Revision
   installations may have different cooling connector configurations. Confirm whether the system has been upgraded before selecting a replacement part.

Related Products

• ABB Medium Voltage Drive System
  Modular medium voltage AC drive platform using phase modules for high-power motor control applications. The S-073N is installed as part of this drive architecture.
• ABB S-073N 3BHB009884R0204
  Related phase module variant associated with upgraded water quick connector configuration. Verify system modification history before substitution.
• ABB S-073N 3BHB009884R5211
  Alternative related hardware version used depending on cooling connector upgrade status. Application matching is required before replacement.
• ABB 5SHY Series IGCT Components
  Power semiconductor components used in ABB high-power converter assemblies. Selection depends on the exact drive design.
• ABB GVC750BE101
  Related ABB power electronics component used in high-power drive and converter systems.
• ABB 5SHY4045L0001
  IGCT semiconductor module used in ABB power conversion equipment. Requires verification against the original converter design.
• ABB INU Module Assembly
  Inverter unit hardware containing multiple power phase components for motor control.
• ABB ACS880 Medium Voltage Drive Family
  Modern ABB drive platform used for migration projects where lifecycle support becomes a concern.
