ABB PPC907BE 3BHE024577R0101
Product Overview

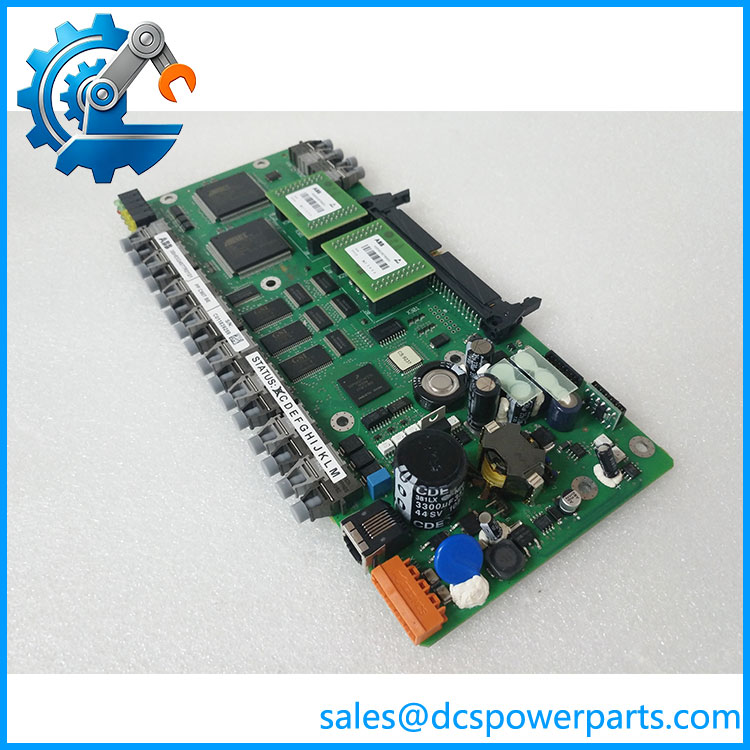

The ABB PPC907BE 3BHE024577R0101 is an AMC34 control board used in ABB medium-voltage drive equipment. ABB’s product record gives the formal type designation PP C907 BE: AMC34 and catalog description “AMC34; CONTROL BOARD.” ABB’s ACS2000 spare-parts documentation independently lists 3BHE024577R0101 as an AMC 34 Control Board and identifies 68281059 as its equivalent.
In the ACS2000 architecture, this is a control-system PCB rather than a generic PLC I/O module or an inverter power semiconductor. It belongs to the drive’s control section, where the controller hardware coordinates the operating functions of the medium-voltage drive. ABB’s spare-parts list places the AMC34 board in the Incoming/Control Section, alongside the INT-2 board, ribbon cables, terminal hardware, power supply, and IOEC control module. The documented cabinet quantity is two for the AMC34 board in the referenced ACS2000 configuration.
For maintenance work, the distinction is important. Several third-party listings incorrectly describe PPC907BE as an inverter module, interface board, or assign unsupported voltage, frequency, and communication specifications to it. ABB’s own documentation does not support those generic descriptions. The safer engineering identification is PPC907BE / 3BHE024577R0101 / PP C907 BE: AMC34 / Control Board.
When replacing the board, match the complete part number, PCB identification, hardware revision, drive type, cabinet configuration, and existing control-system documentation. A physically compatible connector does not by itself establish interchangeability.
Product Introduction
When an ACS2000 control cabinet develops a board-level fault, the critical question is not simply whether another PPC board fits the slot. The PPC907BE 3BHE024577R0101 has to match the specific control architecture and hardware revision of the drive.
For an ACS2000 legacy replacement, ABB’s own spare-parts documentation provides the useful cross-reference: 3BHE024577R0101 = AMC 34 Control Board = equivalent to 68281059.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | PPC907BE |
| ABB Part Number | 3BHE024577R0101 |
| ABB Type Designation | PP C907 BE: |
| Catalog Description | ; CONTROL BOARD |
| Product Type | Control Board |
| Primary Application | ABB ACS2000 medium-voltage drive |
| Functional Section | Incoming / Control Section |
| Documented Equivalent | 68281059 |
| Cabinet Quantity in Referenced Configuration | 2 |
| Installation | Internal drive control cabinet / control assembly |
| Working Voltage | Not specified for the individual PCB in the ABB product record reviewed |
| Communication Protocol | Not specified as a standalone communication module |
| Operating Temperature | Not specified for the individual PCB |
| Protection Rating | Not specified for the bare control board |
| Firmware | Not specified by the part number alone |
ABB’s current product record provides the identification and ordering information but does not publish a complete standalone electrical specification for the bare board. Unsupported values such as 12 VDC, 380 VAC, 50 kHz, IP21, or 98% efficiency appearing in some third-party listings should not be treated as specifications for this control board.
PPC907BE 3BHE024577R0101
Major Features / Practical Advantages
Control Architecture
The defining feature of 3BHE024577R0101 is its identity as an control board. This places it in the control electronics of the ABB drive rather than in the high-power switching section. ABB explicitly classifies the component as a control board in its product database.
That distinction matters during troubleshooting. If the failure is actually in an INT-2 interface board, IOEC module, power supply, or another control-cabinet component, replacing the will not address the underlying fault.
Integration
ABB’s spare-parts manual places the board in the Incoming/Control Section. The same section contains the INT-2 board, 64-conductor ribbon cable, terminal blocks, control power equipment, and IOEC control module.
This provides a useful maintenance clue: the should be evaluated as part of the complete control assembly, not as an isolated universal automation controller.
Documented Cross-Reference
ABB identifies 68281059 as the equivalent for 3BHE024577R0101 in the spare-parts documentation. That cross-reference is valuable when searching older maintenance records, cabinet drawings, or historical bills of material.
Still, an equivalent number should not be used as permission to ignore the drive’s hardware revision. Legacy medium-voltage equipment often has configuration-dependent boards and associated firmware.
No Unsupported Generic Inverter Specifications
Some online descriptions call an “inverter module board” and publish values such as 380 VAC, 50 kHz, IP21, and 98% efficiency. Those specifications are not supported by ABB’s product record for this part.
For engineering documentation, it is better to leave an unavailable specification blank than to copy a number from an unrelated drive assembly.
Practical Legacy Replacement Value
The remains relevant when maintaining an installed fleet and avoiding unnecessary control-system redesign. ABB’s current product data still identifies the exact part number and designation, while the spare-parts documentation provides the 68281059 cross-reference.
For procurement, the useful evidence is therefore the complete ABB part number + type designation + drive identification, not a generic description such as “ABB inverter board.”
Related Products
- 3BHE024855R0101 — ABB INT-2 Board used in the same incoming/control section; it is a different PCB and should not be substituted for the board.
- 3BHB003041R0101 — ABB IOEC Control Module listed in the control section; a separate control component.
- 2UEA000651 — 64-conductor ribbon cable associated with the control section.
- 2UEA002224 — 24 VDC power supply listed in the referenced spare-parts configuration.
- KUC711AE101 3BHB004661R0001 — ABB drive-related control/power electronics board frequently encountered in the same medium-voltage drive spare-parts environment.
- KUC755AE106 3BHB005243R0106 — ABB KUC-series drive control hardware; application and hardware function differ from the .
- PPC322BE HIEE300900R0001 — ABB PPC-series control board; different board designation and should not be treated as an replacement.
- UFC760BE141 3BHE004573R0141 — ABB UFC-series control electronics; different hardware family.
- PPC902AE101 3BHE010751R0101 — ABB PPC-series control board with a different part number and application.
- PPC902CE101 3BHE028959R0101 — another ABB PPC-series board; verify complete drive architecture before considering substitution.
FAQ
What is ABB 3BHE024577R0101?
It is an ABB Control Board, formally identified as PP C907 BE: . ABB’s spare-parts manual lists 3BHE024577R0101 as the AMC 34 Control Board and gives 68281059 as its equivalent.
Is an inverter power module?
No. ABB identifies it as a control board. Some third-party listings call it an inverter module board, but that description should not be used as the primary engineering identification.
Which drive is 3BHE024577R0101 associated with?
ABB’s spare-parts documentation specifically places it in the medium-voltage drive’s Incoming/Control Section.
Is 3BHE024577R0101 equivalent to 68281059?
Yes. ABB’s spare-parts documentation explicitly lists 3BHE024577R0101 as the AMC 34 Control Board and gives 68281059 as the equivalent.
Can I hot-swap this board?
Do not assume hot-swapping is permitted. The ABB documentation reviewed here identifies the board and its drive location but does not establish a generic hot-swap procedure for this specific PCB. Medium-voltage drive maintenance requires the manufacturer’s isolation, discharge, and verification procedures to be followed.
Does support Profibus, Modbus, or CANopen?
Do not specify those protocols solely from the part number. Some commercial listings claim multiple protocols, but ABB’s product record reviewed for 3BHE024577R0101 does not provide those standalone protocol specifications.
Does this part have a specific firmware version?
The part number alone does not establish a firmware revision. Firmware should be checked from the installed drive documentation, board identification, service records, or applicable ABB commissioning tools rather than inferred from the designation.
What should I verify before ordering?
Confirm all of the following:
- / 3BHE024577R0101
- PP C907 BE: marking
- Existing board revision
- drive type and serial number
- Cabinet/control-section configuration
- Connector and PCB layout
- Existing firmware/application records where applicable
- Condition and test evidence if purchasing New Surplus
Procurement Note
For ABB 3BHE024577R0101, the cleanest documented identification is PP C907 BE: ; Control Board. ABB’s own spare-parts documentation further identifies it as an AMC 34 Control Board, equivalent to 68281059.
Be careful with supplier descriptions. “Inverter module,” “interface board,” and generic “ controller” descriptions appear in commercial listings, but they are less precise than ABB’s own classification. The same applies to claimed voltage, frequency, IP rating, efficiency, and communication specifications that are not present in ABB’s product record.
For a replacement purchase, 3BHE024577R0101 + PP BE: + the host identification should be treated as the minimum matching set. That is the practical way to avoid receiving a visually similar ABB drive PCB that belongs to another control position.
