Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | PPC380AE102 |
| ABB Part Number | HIEE300885R0102 |
| Manufacturer | ABB |
| Product Type | Control Board / Printed Circuit Board |
| Hardware Designation | PP C380 AE102 |
| Product Family | PPC-series ABB control hardware |
| Application | ABB industrial power/control equipment |
| Communication Protocol | Not reliably verified from available documentation |
| Supply Voltage | Not reliably verified |
| I/O Configuration | Not reliably verified |
| Installation Method | System-specific rack or assembly installation |
| Operating Temperature | Not reliably verified |
| Protection Rating | Not reliably verified |
| Dimensions | Not reliably verified |
Engineering note: Public descriptions of the PPC380AE102 are inconsistent. One source identifies it as a printed circuit board, while other listings classify it as a controller or expansion board and attach unrelated specifications. The identification PPC380AE102 / HIEE300885R0102 is much more useful for procurement than relying on generic product-type descriptions.
Product Introduction
The ABB PPC380AE102, also identified as HIEE300885R0102, is an ABB industrial control board used within specialized power and automation equipment. Available component references consistently associate the two identifiers, although public sources disagree on its exact functional classification.
For maintenance teams, the important point is identification accuracy. This is not a generic PLC card that should be substituted by matching voltage or connector appearance alone. The host equipment, board revision, connectors, firmware requirements, and cabinet documentation should be checked before installation.

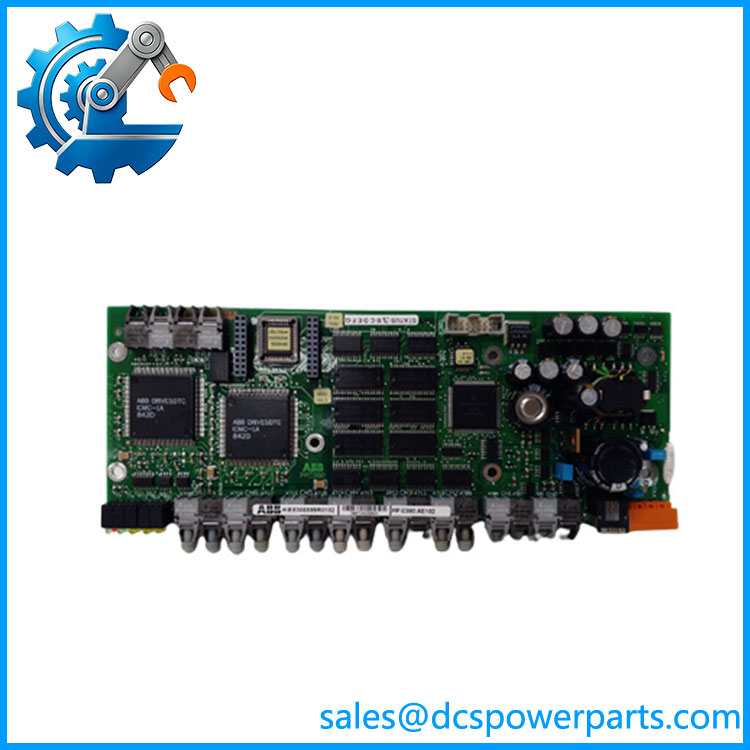

PPC380AE102
Application Scenarios & Field Pitfalls
Engineering Pain Point
A failed control board can stop an otherwise healthy power-control cabinet. The difficult part is often not removing the defective PCB; it is confirming that the replacement has the correct hardware identity and system compatibility. With PPC380AE102, this matters even more because public supplier descriptions attach conflicting functions and specifications to the same part number.
Typical Applications
- Industrial Power Systems — Replacement of ABB control hardware within installed power-control assemblies.
- Power Generation — Maintenance of legacy ABB control equipment where an exact board replacement is required.
- Process Plants — Planned spare-parts inventory for ABB automation and electrical-control cabinets.
- Heavy Industry — Emergency replacement of failed ABB electronic control boards during plant maintenance.
Technical Pitfalls to Avoid
- Do not substitute by description alone.
Some sources call PPC380AE102 a controller, others a high-voltage expansion board, and another reference simply identifies it as a printed circuit board. Those descriptions are not sufficient for interchangeability. - Match the complete identification.
Verify together with HIEE300885R0102. Photograph and record PCB labels, revision markings, connector positions, and the host cabinet location before removing the original board. - Do not trust unverified voltage specifications.
A supplier listing reports 220 V and another reports a 24 V-related configuration, but neither provides enough OEM evidence to establish the actual installation requirement. Treat those figures as unverified. - Check the host system before energization.
Even when the board number matches, confirm firmware, configuration data, connector condition, grounding, and any associated boards. A correct-looking PCB can still be the wrong revision for the installed control assembly.
Related Products
- ABB PPC380AE02 — Closely related PPC380 hardware reference. It appears alongside in ABB component inventories, making it useful when checking legacy system documentation. It should not be treated as a drop-in replacement without confirming the exact equipment configuration.
- ABB PPC905AE101 — Another ABB PPC-series control board. It is a different part number and functional assembly, so it is better used as a related control-hardware reference rather than a substitute.
- ABB PPC902AE101 / 3BHE010751R0101 — ABB PPC-series control hardware listed alongside . The different material number indicates a different board design and application; verify system compatibility before considering it for replacement.
- ABB PPCC322BE / HIEE300900R0001 — ABB processor/control module used for control and fieldbus-related functions. It belongs to a different hardware design and should not be substituted for based solely on processor or communication requirements.
- ABB PPC380AE01 / HIEE300885R1 — Related PPC380 designation appearing in industrial automation component references. The differing suffix and material number require direct cross-checking against the installed system before use.
- ABB PM864AK01 — AC 800M controller hardware. It is a fundamentally different controller family, useful when evaluating broader ABB control-system architecture or migration options, not as a direct replacement.
- ABB PM866K01 — Another AC 800M controller option. Its architecture differs substantially from the PPC380 hardware, making it relevant for system-level modernization discussions rather than direct board replacement.
Procurement takeaway: For ABB / HIEE300885R0102, use the complete part-number pair as the primary identification. Public technical descriptions are too inconsistent to safely establish voltage, communication, I/O, or environmental specifications. Verify the OEM documentation and the installed cabinet assembly before installation.
