Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | PM511V08 |
| Part Number | 3BSE011180R1 |
| Product Type | Processor Module / Central Unit |
| Controller Platform | ABB Advant Controller 450 |
| System Family | Advant OCS / Advant Master |
| CPU Architecture | Motorola MC68040 processor |
| Memory | 8 MB Dynamic RAM with ECC |
| Memory Expansion | PCMCIA slot for flash memory card |
| Power Supply | Backplane powered, 5 VDC / 24 VDC auxiliary supply |
| Typical Power Consumption | Approx. 25 W |
| Mounting Type | AC450 controller rack plug-in module |
| Weight | Approx. 0.76 kg |
| Operating Temperature | Typically -25°C to +55°C |
| Exchange Number | EXC3BSE011180R1 |
Product Introduction
ABB PM511V08 3BSE011180R1 Processor Module Overview
The ABB PM511V08 3BSE011180R1 is a CPU processor module designed for the ABB Advant Controller 450 (AC450) distributed control platform. It executes configured control programs, manages controller resources, and coordinates data exchange between the processor unit, I/O subsystems, and communication modules.
The module is mainly used in installed Advant OCS systems where maintaining the original controller architecture is required. The ECC-protected memory and PCMCIA flash interface support long-term operation and maintenance activities, but replacement work requires verification of firmware, application backup, and AC450 hardware revision before commissioning.

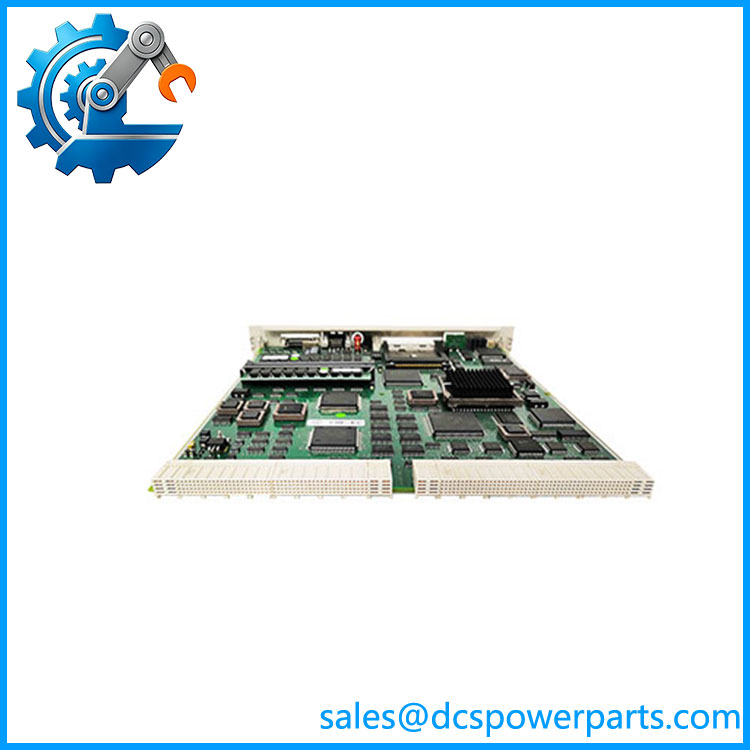

PM511V08 3BSE011180R1
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A failed CPU module in an operating DCS cabinet can create a difficult maintenance situation. The hardware replacement itself is usually straightforward. The risk appears during restart. Missing application backups, incompatible firmware revisions, or incorrect redundancy settings can extend downtime far beyond the physical swap time. The ABB PM511V08 3BSE011180R1 is typically sourced for maintaining existing Advant Controller 450 installations where a full migration is not immediately practical.
Typical Applications
- Power Generation – Turbine auxiliary control, boiler process monitoring, and plant utility automation.
- Chemical Processing – Continuous process control loops, sequencing, and operator interface coordination.
- Oil & Gas Facilities – Legacy DCS control cabinets managing pumps, valves, and process units.
- Water Treatment Plants – Long-running process automation systems requiring AC450 controller continuity.
Technical Pitfalls to Avoid
- Firmware and Application Compatibility
Do not install a replacement PM511V08 without checking the existing AC450 software version, controller configuration, and application backup. The same hardware model can behave differently depending on installed system software.
- Redundancy Configuration Errors
AC450 systems may use dual processor configurations. Confirm whether the failed module operated as a primary or redundant CPU before replacement.
- Memory Card and Backup Verification
The PCMCIA flash interface is part of the maintenance workflow. Verify the program card contents before removing the original processor.
Field note: Before removing the old CPU, document every front-panel indicator status, firmware label, memory card condition, and rack position. That information often determines whether the restart is completed in hours or becomes a troubleshooting project.
Related Products
- ABB PM511V08 3BSE011181R1
Related processor variant used within the same Advant Controller family. Confirm exact ordering number because similar designations may represent different lifecycle or replacement configurations. - ABB PM510V08 3BSE008373R1
Processor module from the same Advant controller generation. Used for different controller configurations and should not be treated as a direct substitute without system verification. - ABB PM511MV08 3BSE019191R1
Marine-classified coated version of the processor module. Selected for applications requiring additional environmental classification. - ABB Advant Controller 450
Main controller platform for the processor module. Used in legacy DCS installations requiring continued operation of existing control applications. - ABB CI851K01 3BSE018101R1
PROFIBUS-DP interface kit used with ABB controller systems for field communication expansion. Applicable when additional network connectivity is required. - ABB DI820 3BSE008512R1
Digital input module used within ABB Advant/800xA-related systems. Provides field signal acquisition alongside controller modules. - ABB DSAI133A 3BSE018290R1
Analog input-related module used in ABB control architectures. Supports process measurement integration with compatible controller systems. - ABB SA168K16 3BSE016029R1
ABB Advant system spare module used in legacy control installations. Application depends on the specific cabinet configuration.
