Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | PM150 |
| ABB Part Number | 3BSE003641R1 |
| Manufacturer | ABB |
| Product Family | Advant OCS |
| Product Type | Processor Module |
| Processor Designation | PM510 |
| Primary Function | Control-system processing |
| System Role | Advant OCS controller hardware |
| Application | Industrial DCS / process control |
| Architecture | Legacy ABB Advant OCS |
| Installation | System-specific Advant OCS rack |
| Replacement Class | Legacy processor spare |
| Condition | New surplus / Used / Tested Refurbished |
The strongest product-specific references identify 3BSE003641R1 as PM150, PM510 Processor Module, manufactured by ABB and associated with Advant OCS.
One important procurement warning: some secondary listings incorrectly describe this part as an analog I/O module or as an AC800M redundant controller. Those descriptions conflict with the more specific identification of PM150 as a PM510 processor module. The latter should be used when defining the component for maintenance purposes.
Application Scenarios & Pain Points
A processor failure in an older DCS can create a deceptively broad fault: communication loss, controller diagnostics, missing process data, and apparently unrelated I/O alarms may all appear at once. Replacing individual I/O cards in that situation can waste hours.
- ABB Advant OCS maintenance: The PM150 is intended for the processor/control layer of an Advant OCS installation rather than direct field-signal termination.
- Legacy DCS replacement: Useful when an operating plant still depends on an Advant OCS controller and an exact processor spare is required.
- Process-control cabinets: Suitable for maintaining existing control nodes where migrating the complete system is not immediately practical.
- Emergency processor replacement: A tested spare can shorten recovery time when the installed processor develops a hardware fault.
Field note: If a PM150 fails, check the controller diagnostics and associated communication/power modules before replacing it blindly. A missing supply rail or rack/backplane problem can produce processor-like symptoms.

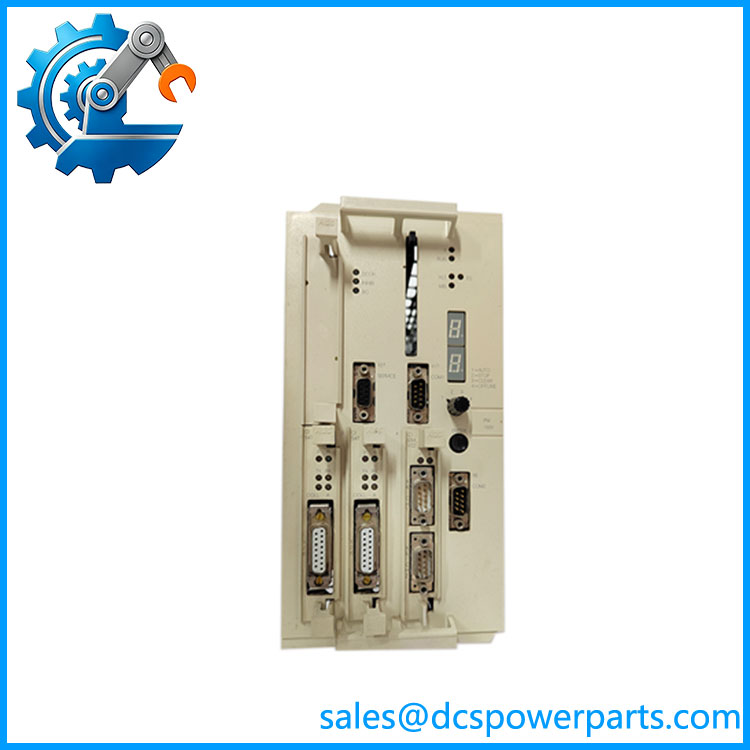

PM150 3BSE003641R1
Related Products
- ABB PM510 — The processor designation associated with PM150. It represents the processor hardware function behind the identification and should be considered when checking system documentation.
- ABB 3BSE003641R1 — The exact processor module covered here. Always use the complete part number when sourcing a replacement.
- ABB PM150V08 — A similarly named ABB processor/control reference appearing in industrial spare-part catalogs. It should not automatically be treated as equivalent; the complete part number and system generation must be verified.
- ABB PM864A — A processor module from the AC 800M family. It is a substantially different controller generation and is not a drop-in replacement for an Advant OCS .
- ABB PM866A — Another AC 800M processor option. Its application belongs to a newer controller architecture and requires a migration assessment rather than direct substitution.
- ABB PM891 — Higher-performance AC 800M processor hardware. It can be relevant to system modernization, but it does not provide direct hardware compatibility with .
- ABB CI625 / CI626 family — Advant OCS communication-related hardware that may appear alongside processor modules in legacy systems. Communication hardware and the perform different functions.
- ABB Advant OCS I/O modules — Field-interface modules supporting the processor-controlled system. They complement the but cannot substitute for its processor function.
The Engineer’s Guide: Field Pitfalls to Avoid
⚠️ Do not confuse with PM150V08.
The model names are close, and secondary catalogs sometimes merge them. Verify the complete ABB part number 3BSE003641R1 and compare the installed hardware label before ordering.
⚠️ Do not accept “powers on” as a processor test.
A processor can illuminate indicators and still fail during memory access, controller execution, or communication initialization. For a critical spare, request a functional test appropriate to the Advant OCS platform.
⚠️ Check the rack and power architecture first.
Before replacing the processor, verify the rack supply, backplane connections, neighboring modules, and controller diagnostics. A dirty connector or unstable supply can mimic a processor failure—especially in an older cabinet.
Practical check: Record the complete label, revision information, rack position, diagnostic LEDs, connected communication hardware, and controller status before removal. Handle the board using ESD precautions and compare the replacement’s hardware markings before insertion.
Frequently Asked Questions (FAQ)
What is ABB 3BSE003641R1?
ABB 3BSE003641R1 is identified as a PM510 Processor Module associated with the ABB Advant OCS control system. It performs controller-level processing rather than direct analog or digital field I/O.
Is an AC 800M processor?
No. The available product-specific identification places 3BSE003641R1 in the ABB Advant OCS family. Some commercial listings incorrectly associate it with AC800M or describe it as a redundant system controller. Those descriptions should not be used to establish compatibility.
Is the same as PM510?
The available reference identifies as a Processor Module, so is the processor designation associated with the product identification.
Can I replace with a newer ABB processor?
Not as a direct plug-in replacement. A newer AC 800M processor, such as PM864A, PM866A, or PM891, belongs to a different controller architecture. A migration would involve hardware, software, I/O, communication, and application-engineering considerations.
What should I check when purchasing a used ?
Request:
- Photograph of the complete 3BSE003641R1 label
- Hardware/revision information
- Connector and backplane condition
- Diagnostic LED status
- Evidence of controller-level functional testing
- Test report where available
A visual inspection alone is not enough for a processor module.
Does contain the plant’s control program?
The is processor hardware within the Advant OCS controller architecture. Whether the original application program, configuration, or retained memory is present depends on the specific unit and how it was removed and stored. Do not assume a surplus processor contains the customer’s original application.
