Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | PFTL101A-0.5kN |
| ABB Order Number | 3BSE004160R1 |
| Manufacturer | ABB |
| Product Family | Pressductor PillowBlock Load Cell |
| Product Type | Horizontal Web Tension Load Cell |
| Measuring Principle | Pressductor magnetic force measurement technology |
| Nominal Load | 0.5 kN |
| Maximum Measuring Force | 500 N |
| Measuring Direction | Horizontal |
| Accuracy Class | 0.5% |
| Repeatability Error | < ±0.05% |
| Deflection | Approx. 0.015 mm |
| Overload Capacity | 500% of nominal load |
| Installation Method | Pillow block bearing housing mounting |
| Output Signal | mV-level force signal to tension electronics |
| Compatible Electronics | ABB PFEA series tension controllers |
| Typical Applications | Paper, film, foil, printing, coating, converting machinery |
| Protection Level | IP65 class (standard A version) |
| Operating Environment | Industrial machinery installation |
Product Introduction

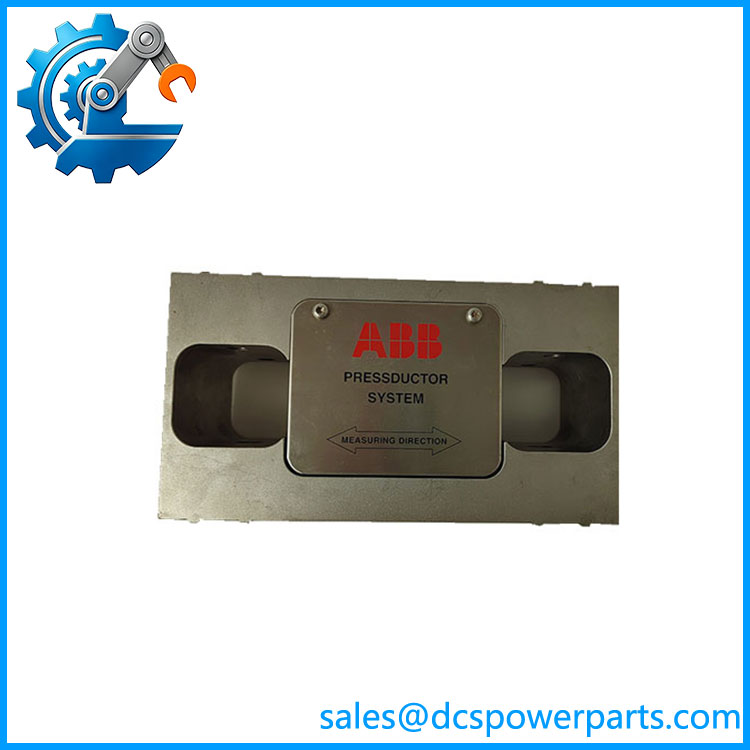

ABB PFTL101A-0.5kN 3BSE004160R1 Product Introduction
ABB PFTL101A-0.5kN 3BSE004160R1 is a Pressductor PillowBlock load cell designed for horizontal force measurement in web tension control systems. The sensor is installed beneath or within guide roll bearing assemblies and measures the tension force generated by moving materials such as paper, film, foil, and other continuous web products.
The ABB PFTL101A-0.5kN 3BSE004160R1 belongs to the PFTL101A series, which covers low-force web tension applications. The 0.5kN version is one of the smallest measuring ranges in the PFTL101 family and is typically selected where precise tension control is required with relatively low web forces.
Unlike conventional strain-gauge load cells, the Pressductor design is based on ABB’s magnetic force measurement technology. This allows the sensor to operate in demanding industrial environments with high mechanical loads, vibration, and continuous production cycles.
The ABB PFTL101A-0.5kN 3BSE004160R1 is not a standalone controller. It requires compatible ABB tension electronics, typically from the PFEA family, to process the force signal and provide control output for web tension regulation systems.
PFTL101A 0.5KN 3BSE004160R1
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A converting line begins producing uneven winding tension, wrinkles, or material breaks. Operators often suspect the mechanical drive system first, but incorrect tension feedback from the load cell can create similar symptoms.
The load cell is the measurement foundation of the tension control loop. Any installation error, mechanical misalignment, or incorrect range selection directly affects product quality.
Typical Applications
Paper Manufacturing
Used for:
- Paper machine winding sections
- Calender systems
- Coating lines
- Reel tension measurement
Film and Plastic Processing
Applied in:
- Plastic film production
- Laminating machines
- Slitting and rewinding equipment
Printing Industry
Used for:
- Printing presses
- Web guiding systems
- Roll-to-roll tension control
Battery and Advanced Material Production
Applied for:
- Coating lines
- Foil handling systems
- Precision web transport equipment
Technical Pitfalls to Avoid
1. Verify the Correct Load Range
The 0.5kN rating is critical. Selecting a 5kN or higher version for a low-force application can reduce measurement resolution and affect tension control accuracy.
2. Confirm PFTL vs PFCL Application
ABB force measurement products have different mechanical designs:
- PFTL: Horizontal web tension measurement using pillow block mounting
- PFCL: Different mechanical arrangement for force/weight measurement applications
They are not interchangeable even if the load ratings appear similar.
3. Check Mechanical Alignment
Small-capacity load cells are sensitive to installation conditions.
Verify:
- Roll alignment
- Bearing housing position
- Mounting surface condition
- Mechanical preload
4. Verify Electronics Compatibility
The sensor requires the correct ABB tension electronics configuration. Check:
- Excitation settings
- Calibration data
- Measuring range
- Zero and span adjustment
