Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | PCD237A101 |
| ABB Part Number | 3BHE028915R0101 |
| Manufacturer | ABB |
| Product Type | PEC80 Controller Board |
| Board Function | Excitation / drive control processing |
| Platform | ABB PEC80 / AC800PEC |
| Application | Generator excitation systems, PCS6000 converter systems |
| Power Supply | 24 VDC control supply |
| Controller Architecture | Embedded control processor board |
| Communication | ABB internal control communication interfaces |
| Installation | Control cabinet rack mounting |
| Operating Temperature | 0°C to +55°C typical cabinet environment |
| Storage Temperature | -25°C to +70°C |
| Typical Equipment | Synchronous generators, excitation units, power converters |
Application Scenarios & Pain Points
A generator that cannot maintain stable voltage creates problems far beyond the excitation cabinet. Operators may see unstable reactive power, voltage oscillation, or excitation alarms while the mechanical generator remains completely normal.
Typical applications:
- Power Generation Excitation Systems: The ABB PCD237A101 3BHE028915R0101 manages controller functions associated with generator excitation regulation, helping maintain stable electrical output during load changes.
- Hydroelectric and Thermal Power Plants: Used in excitation control cabinets where generator voltage regulation and reactive power management are essential.
- Industrial Captive Power Plants: Supports generator control systems used in factories with independent power generation equipment.
- PCS6000 Converter Applications: Installed within ABB power conversion systems where PEC80 control hardware manages converter-related functions.
Field note: A power station experienced intermittent excitation controller alarms during generator startup. Initial checks showed the power section was normal. Inspection identified unstable controller communication from the PEC80 board. After replacing the controller board and restoring parameters, startup sequences returned to normal.

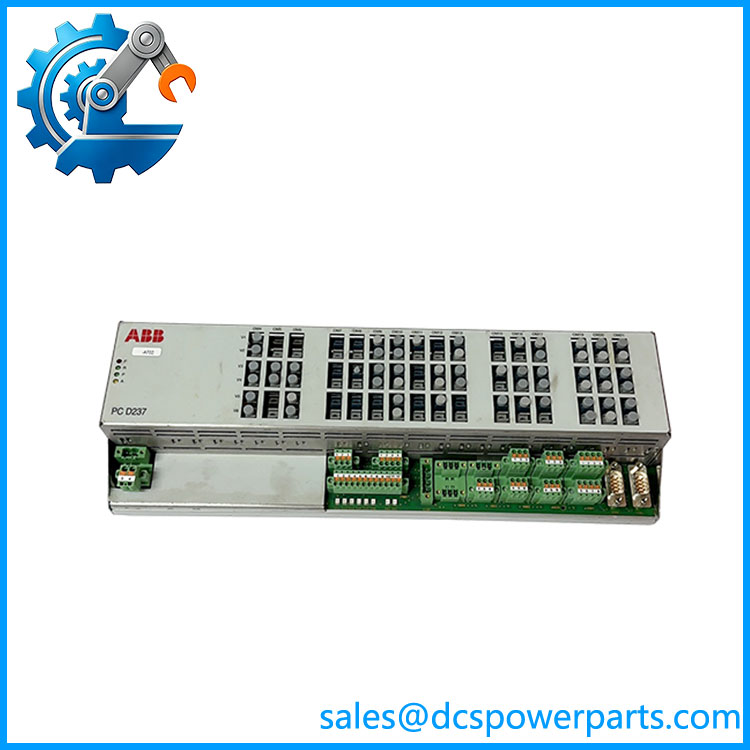

PCD237A1011
Related Products
- ABB PCD230A / PEC80-CCM — Related PEC80 controller family board. Used for similar control functions, but hardware revision and application configuration must be checked before substitution.
- ABB PCD235B1101 3BHE032025R1101 — Related ABB PEC control board used in power conversion applications. Functional role differs depending on system architecture.
- ABB UAD142A01 3BHE012551R0001 — ABB control interface module used in excitation and converter systems. Provides different I/O and processing functions.
- ABB UFD203A101 3BHE019361R0101 — ABB excitation/converter interface module used with related power control systems.
- ABB PM866K01 3BSE050198R1 — AC800PEC controller component used in ABB automation architectures requiring coordinated control functions.
- ABB PM891K01 3BSE053241R1 — Higher-performance AC800PEC controller option used in complex control applications.
- ABB UNITROL 6000 System Components — Excitation control platform components designed for large synchronous generator applications.
- ABB PCS6000 Converter Control Components — Supporting control modules used in medium-voltage converter installations.
The Engineer’s Guide: Field Pitfalls to Avoid
⚠️ Installing a Board Without Matching Firmware and Parameters
A replacement PCD237A101 may start normally but fail during excitation operation if the application configuration does not match.
How to avoid:
Before removal, save:
- Controller parameters
- Software version
- Communication settings
- Excitation tuning values
⚠️ Confusing Similar Boards
ABB boards can share similar dimensions and connectors while performing different control tasks.
How to avoid:
Verify:
- Complete ABB part number
- Board revision
- System drawing reference
- Existing slot position
A matching connector does not always mean functional compatibility.
⚠️ Ignoring Cabinet Environment Conditions
Control boards installed near power electronics are exposed to heat, dust, and electrical noise.
How to avoid:
Inspect:
- Cooling airflow
- Backplane contacts
- Ground connections
- Signs of oxidation on connectors
A clean connector surface matters after years of operation.
Frequently Asked Questions (FAQ)
What is the ABB PCD237A101 3BHE028915R0101 used for?
The ABB PCD237A101 3BHE028915R0101 is a controller board used in ABB excitation and power conversion control systems. It performs controller processing and interface functions within the excitation architecture.
Is PCD237A101 a PLC CPU module?
No. It is a dedicated ABB excitation and power conversion controller board rather than a general-purpose PLC CPU.
Which systems use the ABB 3BHE028915R0101?
Typical applications include:
- Generator excitation systems
- ABB PCS6000 converter systems
- -based control cabinets
- Industrial power generation equipment
Can replace another ABB board?
Only after checking:
- Exact ABB material number
- Hardware revision
- Application software
- Cabinet wiring
- Controller configuration
Board shape alone is not enough for a reliable replacement.
What are common failure symptoms?
Typical symptoms include:
- Excitation controller communication loss
- Generator voltage regulation alarms
- Controller watchdog faults
- Converter startup failure
- Missing control signals
Does replacing the require commissioning?
Yes. After installation, engineers should verify controller communication, excitation parameters, protection settings, and generator startup behavior.
Is a refurbished ABB suitable for power plant service?
A tested refurbished unit can be suitable when processor operation, communication functions, board condition, and compatibility with the installed ABB excitation system are verified before returning the generator to service.
