ABB NRED-61 | Thick-Film Hybrid | ACS600 690 V Power Supply Protection

Description

ABB NRED-61 | Thick-Film Hybrid Voltage Adapter | ACS600 690 V Drive Power Supply Protection

Key Technical Specifications

ABB’s product records identify 58926451 as NRED-61, a thick-film hybrid, with a documented Rev. C and approximately 0.11 kg net weight. ABB’s maintenance documentation provides the more important functional information: NRED-61 is a voltage adapter between the DC link and the power supply, specifically in 690 VAC units.

ABB–NRED-61

Product Introduction

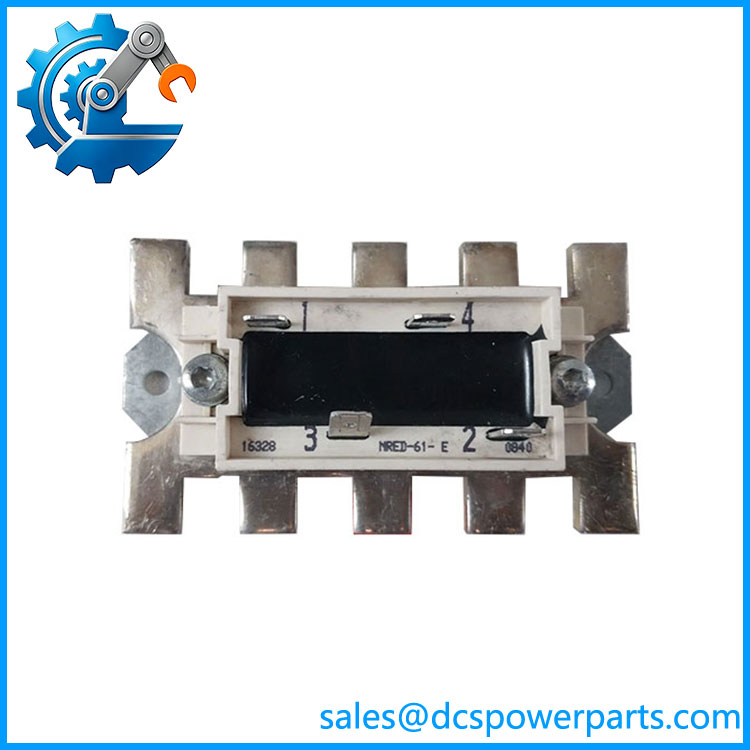

The ABB NRED-61 is a specialized thick-film hybrid used inside ABB industrial drive power circuitry. It is not a PLC I/O module, inverter control board, or conventional voltage regulator. Its job is to adapt the high-voltage DC-link potential to the internal power-supply circuitry used by the drive control electronics. ABB maintenance documentation specifically places the in 690 VAC drive units.

The is particularly relevant when troubleshooting unexplained drive power-supply failures. ABB’s own maintenance note identifies incorrect operation as one possible cause of power-supply problems and recommends periodic replacement because of component aging. This makes the part more than a simple spare: its condition can affect the availability of the drive’s control electronics and, indirectly, the power semiconductor section.

Engineering Pain Point

The critical mistake is treating as a generic resistor, voltage-divider board, or interchangeable drive accessory. It sits directly in the interface between the DC link and internal power supply. ABB documentation specifically warns that failures can contribute to power-supply failures, while incorrect control-board operation can increase the risk of IGBT damage. A replacement should therefore be evaluated together with the associated power-supply circuitry and the condition of the DC-link section.

Typical Applications

• ABB ACS600 drive maintenance — is documented as part of the power/control circuitry of ABB ACS600 drives.
• 690 VAC drive units — ABB’s maintenance documentation specifically identifies adapters for 690 VAC units.
• Drive power-supply troubleshooting — Useful when investigating failures originating around the internal control-board power supply.
• Preventive maintenance — ABB maintenance documentation recommends periodic replacement of adapters as part of long-term drive maintenance.

Technical Pitfalls to Avoid

1. Do not confuse with the complete drive. It is a small internal thick-film hybrid, not an inverter or drive controller.
2. Do not assume all ACS600 units use it. ABB’s maintenance note specifically describes adapters for 690 VAC units. Confirm the drive’s supply class and hardware configuration before ordering.
3. Inspect the surrounding power-supply circuitry. If failed after a DC-link overvoltage event, replacing the hybrid without investigating the associated supply circuitry can leave the original fault unresolved. ABB specifically links problems with power-supply failures following DC-link overvoltage.
4. Do not substitute based on physical appearance alone. Product records identify 58926451 as and document older and replacement product identifiers. Confirm the complete ABB product identification before accepting an alternative.
5. Respect the DC-link hazard. This component interfaces with drive DC-link circuitry. Isolation, discharge time, absence-of-voltage verification, and the manufacturer’s service procedure must be followed before accessing or replacing it.
6. Check related control-board condition. ABB’s maintenance documentation identifies alongside NGDR, NXPP, NINT and associated control circuitry. Poor control-board operation can produce incorrect gate pulses and increase IGBT damage risk.

Related Products

• ABB APOW-01C — Associated power-supply/control-board hardware found in ABB drive assemblies; should be evaluated in relation to the actual APOW configuration rather than treated as an independent voltage module.
• ABB NGDR series — Gate-driver boards used in the drive control circuitry. Their condition is important when investigating power-semiconductor problems.
• ABB NXPP series — Control/signaling boards used with and related control circuitry in documented ACS600 architectures.
• ABB NINT-63 — Interface/signaling board referenced in ABB main-circuit control-board maintenance documentation.
• — Drive family explicitly associated with in ABB maintenance documentation.
• ABB ACS800 — also appears in ABB maintenance documentation for 690 VAC ACS800 drive/control-board applications.
• ABB NBRC-61 — Brake-chopper control board appearing with an NRED voltage-reducer function in later ABB brake-unit documentation; this is a related but different application and should not be confused with the original thick-film hybrid.

Procurement and Replacement Note

For an replacement, verify the ABB Product ID 58926451, drive family, supply voltage class, board revision, physical mounting arrangement, and the complete internal power-supply configuration. ABB records also identify an older product ID 68252615 and replacement product ID 68262747, so the purchasing record should preserve these identifiers when cross-referencing legacy equipment.

The key point is that is a voltage-adapter thick-film hybrid, not a generic inverter-drive module. Public ABB documentation supports its use between the DC link and internal power supply, particularly on 690 VAC units, but does not provide enough reliable information to assign a standalone voltage-divider ratio, resistance value, power rating, or operating-temperature specification. Those parameters should be taken from the applicable drive schematic or OEM service documentation rather than guessed from third-party listings.
