Description
Product Overview

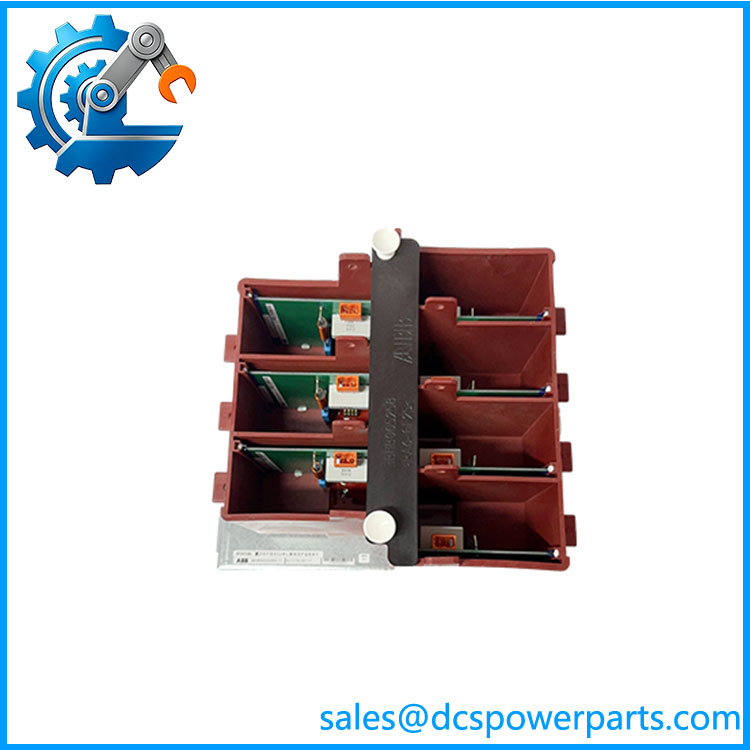

The ABB KUC755AE117 3BHB005243R0117 is a gate unit power supply and control module designed for ABB ACS6000 medium voltage drive systems. This module provides the required power and interface functions for gate control circuits associated with IGCT power semiconductor modules. Within the ACS6000 architecture, the ABB KUC755AE117 3BHB005243R0117 supports the fast switching requirements of high-power converter assemblies by supplying and managing gate-related control functions.
The ABB KUC755AE117 3BHB005243R0117 is installed within the power converter section of ACS6000 drive systems, working together with phase modules, IGCT components, and converter control electronics. Its role is not equivalent to a PLC CPU or standard automation controller; instead, it operates as a dedicated power electronics support module responsible for maintaining correct communication between drive control signals and semiconductor switching hardware.
In medium voltage applications, converter reliability depends heavily on accurate gate signal delivery, stable auxiliary power, and proper feedback communication. The ABB KUC755AE117 3BHB005243R0117 is commonly associated with ACS6000 drive configurations used in industries such as metals, mining, marine propulsion, power generation auxiliaries, and large process machinery. These systems rely on precise switching control to regulate motor speed, torque, and energy conversion performance.
For maintenance engineers supporting installed ACS6000 equipment, replacement requires careful verification beyond the part number. To be completely transparent, technicians should confirm the complete drive type, phase module arrangement, firmware compatibility, connector configuration, and existing cabinet revision before installation. Medium voltage drive hardware is highly integrated, and a matching board number does not replace proper system validation.
The practical value of the ABB KUC755AE117 3BHB005243R0117 is maintaining existing ACS6000 converter platforms where original hardware compatibility is required. Inspection of optical links, gate connections, cooling conditions, and associated power modules should be completed before commissioning.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | ABB |
| Ordering Number | 3BHB005243R0117 |
| Manufacturer | ABB |
| Product Type | Gate Unit Power Supply / Control Module |
| Drive Platform | ABB Medium Voltage Drive |
| Main Function | IGCT gate drive power and control interface |
| Application | Medium voltage AC converter systems |
| Compatible Components | phase modules and IGCT assemblies |
| Power System | Medium voltage inverter architecture |
| Installation | Converter cabinet mounting |
| Communication | Internal ABB drive communication interface |
| Cooling Environment | Forced-air cooled drive cabinet environment |
| Protection Level | Cabinet installation environment |
| Typical Use | Motor drive and power conversion applications |
KUC755AE117
Related Products
- ABB KUC755AE105 3BHB005243R0105 — Related gate unit power supply variant. Used in similar converter configurations but with different hardware revision and application parameters.
- ABB KUC755AE106 3BHB005243R0106 — Alternative KUC755 series module. Selection depends on the installed cabinet design and converter configuration.
- ABB S-073N 3BHB009884R0021 — phase module rack component. Works with converter power sections where KUC755 series gate units are installed.
- ABB 5SHY14H4502 3BHB003230R0101 — IGCT power semiconductor module used in high-power converter applications. Requires matching gate drive hardware.
- ABB Medium Voltage Drive — Main application platform for . Used for large motor speed control in industrial plants.
- ABB ACS1000 Drive System — Related medium voltage drive family with different hardware architecture and control modules.
- ABB UNS0881A-P GDI Module — Gate driver interface component used in ABB power converter systems.
Frequently Asked Questions (FAQ)
1. What is the ABB 3BHB005243R0117 used for?
The ABB 3BHB005243R0117 is a gate unit power supply and control module used in ABB medium voltage drives. It supports the gate control functions required for IGCT-based converter switching circuits.
2. Can I hot-swap the ABB ?
No. This module is part of a medium voltage converter system and should only be replaced after proper shutdown and electrical isolation.
Recommended procedure:
- Remove drive power according to site procedures.
- Verify DC bus discharge.
- Record cable and connector locations.
- Replace the module.
- Perform converter diagnostics before operation.
3. Does the ABB support firmware v3.1?
The is not normally programmed like a PLC CPU. Compatibility depends on:
- drive configuration
- Converter control software
- Hardware revision
- Associated phase module type
4. Will replacing the ABB erase my drive parameters?
No. The module does not normally store the complete drive application configuration.
After replacement, engineers should verify:
- Drive communication status
- Gate fault diagnostics
- Converter feedback signals
- Motor startup sequence
5. How can I verify a New Surplus ABB 3BHB005243R0117?
Recommended inspection steps:
- Confirm ABB label and ordering code.
- Check revision markings.
- Inspect connectors and optical interfaces.
- Verify storage condition.
- Compare against the removed module before installation.
6. What failures are commonly related to modules?
Possible issues include:
- Gate power supply faults
- Communication interruption with converter controls
- Optical signal problems
- Damage caused by upstream IGCT or phase module failures
- Thermal stress from converter cabinet conditions
A failed gate unit should be evaluated together with surrounding power components.
7. Is the ABB suitable for upgrade projects?
It is mainly used for maintaining existing installations. For modernization projects, engineers should evaluate the complete converter architecture, motor requirements, control software, and available drive replacement strategy before selecting hardware.
