Description

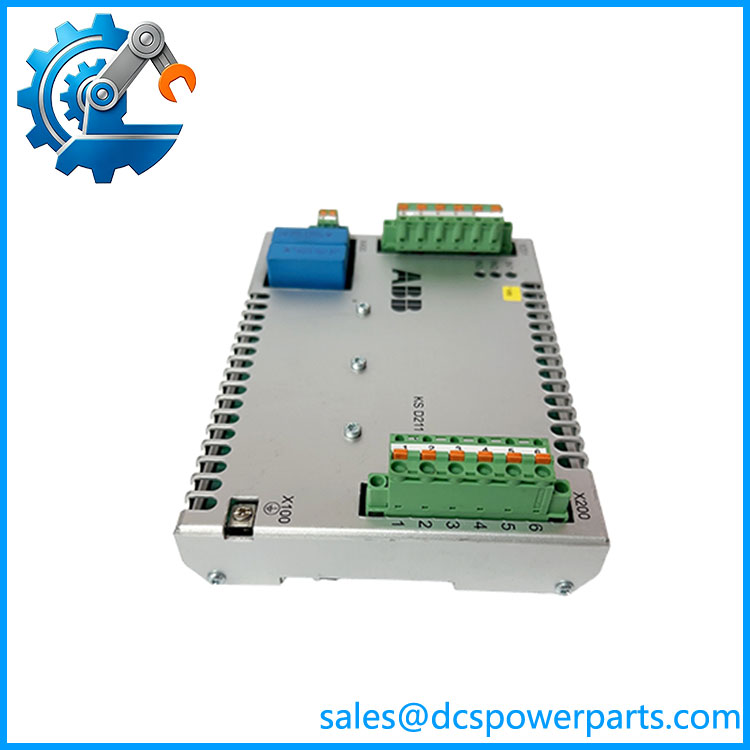

ABB KSD211B 3BHE022455R1101 Input Coupling Unit
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | KSD211B |
| ABB Product ID | 3BHE022455R1101 |
| Catalog Description | KS D211 B101: Input Coupling Unit ICU |
| Product Type | Input Coupling Unit |
| Manufacturer | ABB |
| Net Depth | 120 mm |
| Net Height | 165 mm |
| Net Width | 50 mm |
| Net Weight | Approx. 0.5 kg |
| Minimum Order Quantity | 1 piece |
| Part Type | New |
| Country associated with ABB product record | Switzerland |
| Customs Tariff Number | 85437000 |
The dimensions and approximately 0.5 kg net weight are directly reported in product records associated with ABB’s product identification for 3BHE022455R1101.
Important specification note: Public secondary listings contain conflicting claims about KSD211B, including descriptions as an AC 800M communication module, Modbus/RS-485 device, multi-channel analog input module, and excitation-system interface. Those descriptions do not agree with the ABB catalog description “KS D211 B101: Input Coupling Unit ICU.” The latter is the safer identification for procurement and engineering documentation.
Product Introduction
The ABB KSD211B 3BHE022455R1101 is an Input Coupling Unit (ICU) identified in ABB product records as KS D211 B101. It is an interface component intended to couple incoming electrical signals to the associated control-system circuitry rather than serving as a general-purpose PLC CPU, communication processor, or conventional analog I/O card.
For replacement work, the complete order number matters. The KSD211B designation alone is not sufficient to establish interchangeability when the installed cabinet contains related interface hardware or system-specific wiring.
Applications & Field Pitfalls — Engineer’s Perspective
The main procurement risk with this part is misidentification. A number of secondary listings attach generic AC 800M, Modbus, RS-485, or analog-I/O specifications to KSD211B, but the available ABB product identification describes 3BHE022455R1101 as an Input Coupling Unit. Treating it as a conventional I/O module can result in an incorrect substitute and substantial commissioning delay.
Typical Application Areas
- Industrial control cabinets — signal coupling within an ABB control-system architecture.
- Power automation systems — interface hardware where incoming signals require dedicated coupling before reaching control electronics.
- Legacy system maintenance — replacement of an existing KS D211 B101 assembly without redesigning the surrounding interface.
- Control-system refurbishment — useful as an original-specification replacement when the installed equipment documentation identifies 3BHE022455R1101.
KSD211B 3BHE022455R1101
Field Pitfalls
- Do not substitute by physical dimensions alone. A 120 × 165 × 50 mm package does not establish electrical compatibility.
- Verify the complete ABB part number. and 3BHE022455R1101 should be checked against the equipment BOM, cabinet drawing, and existing nameplate.
- Do not assume AC 800M communication functionality. Several commercial listings describe this part incorrectly as a communication or I/O module. That should not be accepted without an ABB system document supporting the claim.
- Check the surrounding interface hardware. Input coupling devices are system-dependent components; connector arrangement, field wiring, signal type, and the receiving control electronics all matter.
Related ABB Products
- ABB KSD211A101 — Earlier KSD211-series designation reported in secondary documentation; replacement suitability should be established from ABB documentation rather than assumed.
- ABB KSD211B101 — Alternate designation associated with the same ABB product identification, 3BHE022455R1101.
- ABB CI522A 3BSE018283R1 — ABB interface/communication hardware; substantially different function from the ICU.
- ABB DSCA190V 57310001-PK — Legacy ABB interface hardware used in different control-system architectures.
- ABB DSAO120A 3BSE018293R1 — Analog output hardware; should not be treated as a replacement for an input coupling unit.
- ABB PPC905AE101 3BHE014070R0101 — ABB control-system processor/interface hardware with a different system role.
- ABB PPC907BE101 3BHE024577R0101 — ABB control electronics; compatibility depends on the specific system architecture.
Procurement Note
For a replacement purchase, specify ABB , 3BHE022455R1101, KS D211 B101 together. Ask the supplier to confirm the exact marking on the hardware and provide clear photographs of the nameplate and connectors before shipment.
The available ABB product record lists 3BHE022455R1101 as a non-quote-only product with a minimum order quantity of one and gives a net size of 120 × 165 × 50 mm and approximately 0.5 kg.
For an installed-system replacement, the safest acceptance check is not the external appearance. Match the full part number, system application, connector arrangement, cabinet drawing, and existing wiring before treating another KSD211 variant as interchangeable.
