Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | DSDP140A |
| Product ID | 57160001-ACT |
| Product Type | Pulse Counter Board |
| System Platform | ABB S100 I/O / Advant Master / 800xA |
| Pulse Input | 1 pulse input for positioning loop |
| Pulse Channels | 3 channels |
| Pulse Signal Range | ±15 mA |
| Maximum Pulse Frequency | Up to 80 kHz |
| Digital Inputs | 2 channels, 24 VDC |
| Digital Outputs | 4 channels, 24 VDC |
| Analog Output | 1 channel |
| Analog Output Resolution | 11-bit + sign |
| Analog Output Range | 0–10 VDC or 0–±20 mA |
| Module Type | I/O Module |
| Mounting | ABB S100 I/O rack |
| Dimensions | Approx. 209.7 × 18 × 225 mm |
| Weight | Approx. 0.44 kg |
| Application | Pulse counting, speed and position measurement |
Product Introduction

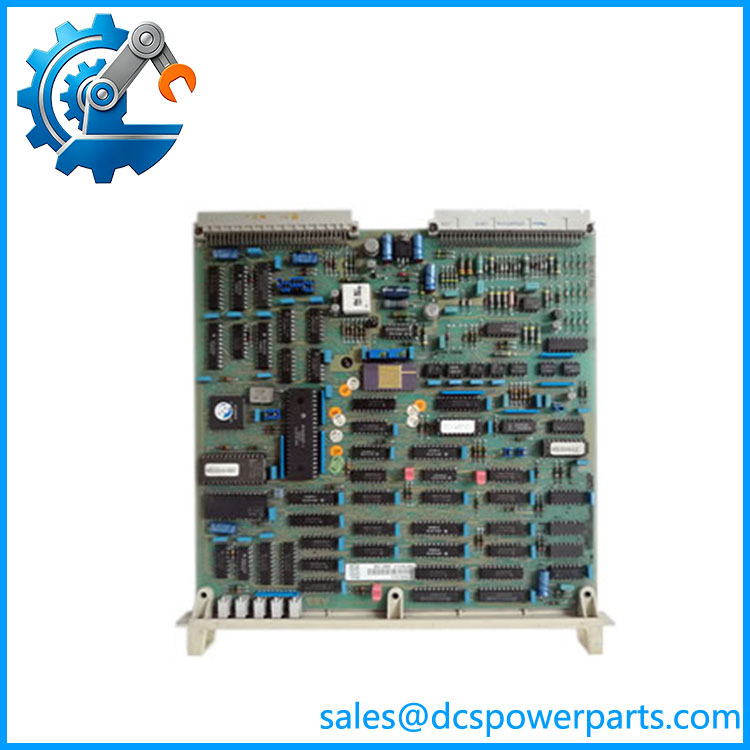

ABB DSDP140A Overview
The ABB DSDP140A 57160001-ACT is a pulse counter and positioning module designed for ABB industrial automation systems requiring accurate measurement of pulse signals from field devices. It is part of the ABB S100 I/O family and is used within Advant Master, Advant OCS, MOD 300, and related ABB control system architectures.
The ABB DSDP140A processes high-speed pulse signals from devices such as incremental encoders, speed sensors, and position feedback instruments. By handling pulse counting directly at the I/O level, the module provides the control system with measured speed, position, and frequency information required for monitoring and closed-loop control applications.
The ABB DSDP140A 57160001-ACT integrates pulse measurement capability with additional digital and analog interfaces. The module includes digital input channels, digital output channels, and an analog output channel, allowing it to support a wider range of field interface requirements within industrial control systems.
The ABB DSDP140A is commonly installed in applications involving rotating machinery, motion control, and process equipment where pulse accuracy is important. Typical installations include turbine speed monitoring, conveyor positioning, motor feedback systems, and mechanical equipment supervision.
When replacing an , engineers should verify the installed ABB control platform, rack configuration, firmware compatibility, pulse sensor type, wiring arrangement, and application parameters. A replacement module must match both the hardware architecture and the configured measurement functions.
DSDP140A
Application Scenarios & Field Considerations
Engineering Pain Point
A control system reports:
- Incorrect speed feedback
- Pulse counting errors
- Position deviation alarms
- Encoder signal loss
- Rotating equipment monitoring faults
The may be involved, but problems can also originate from the pulse sensor, wiring, signal conditioning, or configuration parameters.
Recommended troubleshooting steps:
- Verify pulse signal amplitude
- Check sensor wiring polarity
- Confirm pulse frequency range
- Review module diagnostics
- Inspect rack communication
- Compare configuration with engineering documentation
The provides pulse measurement capability, but measurement accuracy depends on the complete field signal chain.
Typical Applications
Rotating Equipment Monitoring
Used for:
- Turbine speed measurement
- Motor feedback monitoring
- Shaft position detection
- Overspeed protection systems
Industrial Motion Control
Applied for:
- Encoder feedback
- Position tracking
- Conveyor systems
- Machine synchronization
Power Generation Systems
Used for:
- Generator speed monitoring
- Mechanical protection systems
- Auxiliary equipment control
Process Automation
Applied for:
- Flow pulse measurement
- Metering systems
- Frequency-based instrumentation
Technical Pitfalls to Avoid
1. Verify Pulse Sensor Compatibility
Check:
- Sensor output type
- Current loop characteristics
- Pulse frequency range
- Signal wiring
Incorrect sensor matching can result in unstable counting.
2. Confirm ABB System Compatibility
Verify:
- S100 I/O rack type
- Advant controller version
- Software configuration
- Module addressing
3. Check Field Wiring
Inspect:
- Shield grounding
- Cable routing
- Terminal connections
- Electrical interference sources
4. Preserve Existing Configuration
Before replacement:
- Record module parameters
- Document wiring
- Save control database
- Verify calibration values
