ABB DSDO115A 3BSE018298R1 | ABB S100 Digital Output Module 32 Channel Spare Part

ABB DSDO115A 3BSE018298R1 | ABB S100 Digital Output Module 32 Channel Spare Part

  • Model: DSDO115A 3BSE018298R1
  • Brand: ABB
  • Series: Advant OCS / Advant Master S100 I/O
  • Core Function: Converts controller commands into 24VDC digital output signals for field devices.
  • Product Type: Digital Output Module / S100 I/O Output Board
  • Key Specs:
    • 32 digital output channels
    • 24VDC output operation
    • 0.5A output current per channel
Add To Quote
Category: SKU: ABB DSDO115A 3BSE018298R1

Description

Key Technical Specifications

Parameter Value
Manufacturer ABB
Model Number DSDO115A
Order Number 3BSE018298R1
Product Type Digital Output Board
Product Family Advant OCS / S100 I/O
Output Channels 32 channels
Output Voltage 24VDC
Output Current 0.5A per channel
Signal Type Digital transistor output
Installation ABB S100 I/O rack
Compatible Systems Advant Controller 450, AC460, Advant OCS, S100 I/O
Dimensions 324 × 234 × 22.5 mm
Weight Approx. 0.32 kg
Application Solenoids, relays, contactors, actuators, discrete field control



Product Introduction



ABB DSDO115A 3BSE018298R1 Overview

The ABB DSDO115A 3BSE018298R1 is a 32-channel digital output board designed for ABB Advant OCS and S100 I/O control systems. It provides discrete 24VDC output signals from the controller to field devices such as relays, solenoid valves, motor starters, and status indicators.

The ABB DSDO115A 3BSE018298R1 is used in legacy ABB process control installations where maintaining existing S100 I/O cabinets is required. It provides a direct replacement option for installed digital output channels without redesigning the existing DCS I/O architecture.

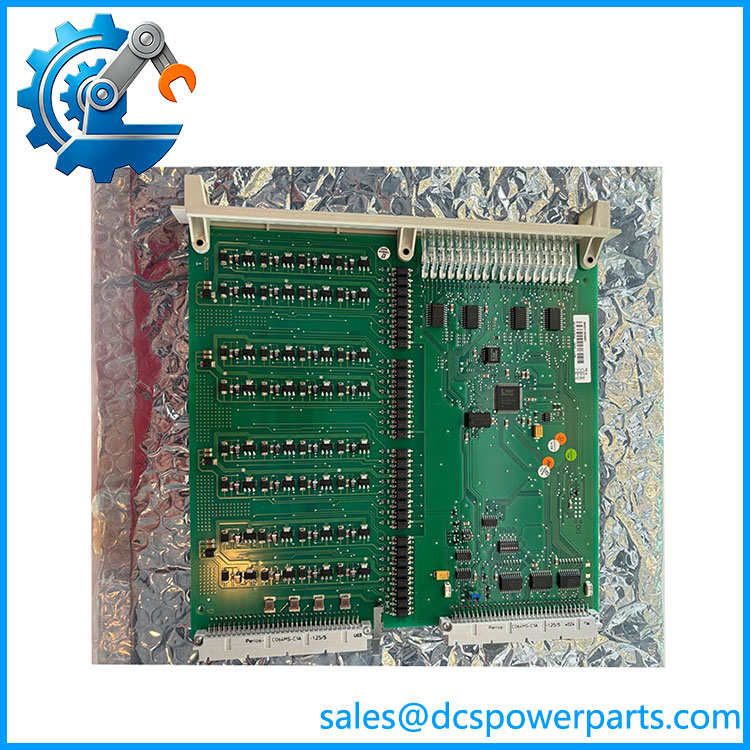

DSDO115A 3BSE018298R1

Application Scenarios & Field Pitfalls (The Engineer’s Perspective)



Engineering Pain Point

A digital output failure can stop a process sequence immediately. A valve may fail to open, a pump start command may not reach the motor control center, or an interlock signal may remain inactive. In many cases, engineers first investigate PLC or DCS logic, but the real problem can be a failed output channel, field wiring issue, or actuator-side fault.

The DSDO115A is the final electrical link between the control system and the physical equipment. A healthy logic command is meaningless if the output hardware cannot deliver the signal.



Typical Applications

  • Oil & Gas Processing – Control of shutdown valves, solenoids, motor starters, and process equipment interlocks.
  • Power Generation – Digital commands for auxiliary pumps, breakers, fans, and turbine support equipment.
  • Chemical Manufacturing – Discrete control of dosing pumps, agitators, valves, and alarm devices.
  • Water Treatment Plants – Pump start/stop control, valve operation, and equipment status outputs.



Technical Pitfalls to Avoid

  1. Verify Load Current Requirements

    The DSDO115A is rated for specific output current levels. Check the connected field device load before installation. High-current devices may require an external relay or interface module.

  2. Check Field Wiring Before Replacing the Board

    A failed actuator does not always mean the output module is defective. Inspect terminal blocks, field power supply, and device coils before changing hardware.

  3. Confirm S100 I/O Database Configuration

    The module must match the configured I/O address and engineering database. Incorrect channel mapping can create output commands on the wrong field device.



Related Products

  • ABB DSAO120A 3BSE018293R1
    Analog output module from the same I/O family. Used for continuous control signals such as valve positioning or speed references, while handles discrete ON/OFF commands.
  • ABB DSAI146 3BSE007949R1
    Analog input module for collecting process measurements from transmitters. Complements in mixed analog and digital control cabinets.
  • ABB DSDI110A 3BSE018295R1
    Digital input module used for receiving field status signals such as switches, alarms, and equipment feedback.
  • ABB DSRF197 3BSE019297R1
    I/O equipment frame used for mounting modules, including digital output boards.
  • ABB DSBC176 3BSE019216R1
    I/O bus extender module. Used when modules are installed in remote I/O cabinets connected through extended bus architecture.
  • ABB RF522 3BSE000743R1
    Advant controller rack assembly. Provides controller-side hardware support in related Advant system installations.
  • ABB PM865K01 3BSE031151R1
    AC800M controller kit used in newer ABB control platforms. Often considered during migration planning from older Advant systems.
  • ABB CI540 3BSE001077R1
    I/O bus extension interface module. Used for communication expansion between ABB control system components.
