Description

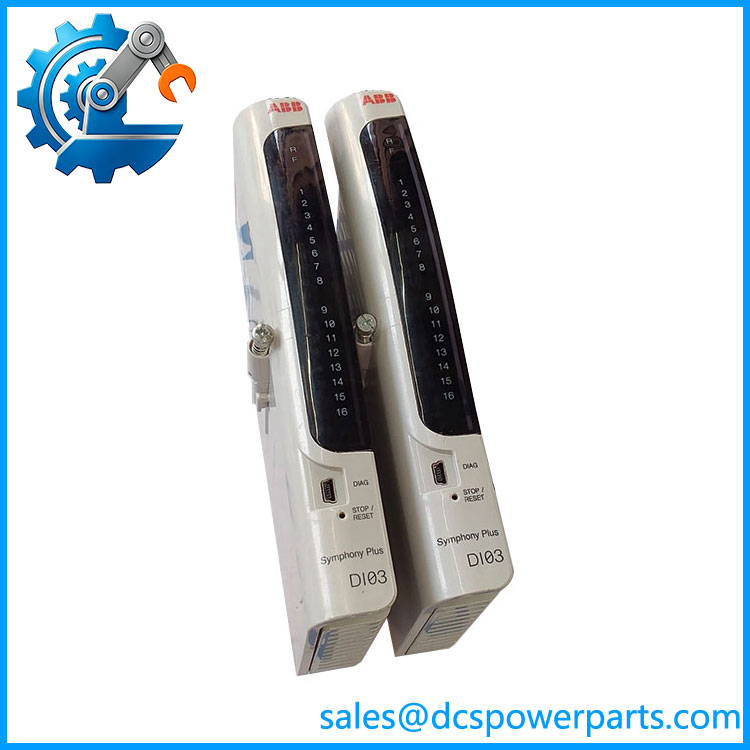

ABB DI03 Digital Input Module
Product Introduction
Reliable discrete status acquisition starts with matching the input voltage and isolation architecture to the field wiring. ABB DI03 is a 16-channel digital input module in the Symphony Plus SD Series I/O family, designed to process individual 24 VDC field signals. Each input channel is independently channel-to-channel isolated, which is important when field devices share a cabinet but do not have identical electrical reference conditions. ABB classifies DI03 as an active SD Series Digital Input module.
The module is intended for standard discrete process signals rather than time-critical event capture. DI03 supports configurable contact debounce up to 255 ms and can sink or source I/O current, but does not support Sequence of Events (SOE). For applications requiring SOE, ABB specifically points to the DI01 module instead. DI03 can be installed with several compatible SD Series module termination units, including HBS01-FPH, HBS01-FPN, HBS01-EPD, VBS01-FPH, VBS01-FPN, and VBS01-EPD.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | DI03 |
| Manufacturer | ABB |
| Platform | Symphony Plus |
| I/O Series | SD Series I/O |
| Product Type | Digital Input Module |
| Number of Channels | 16 |
| Signal Type | Digital Input |
| Input Signal | 24 VDC |
| Input ON Voltage | 19.5 VDC |
| Input OFF Voltage | 18.0 VDC |
| Channel Isolation | Individual channel-to-channel isolated |
| Field-to-Logic Isolation | 1500 V for up to 1 minute |
| SOE | No |
| HART | No |
| Redundancy | No |
| Contact Debounce | Configurable up to 255 ms |
| Field Current | 6.0 mA typical / 9.0 mA maximum at 24 VDC ±10% |
| Module Power | 24 VDC ±10% |
| Module Current | 67 mA typical / 85 mA maximum |
| Maximum Field Cable Length | 600 m |
| Mounting | Horizontal row or vertical column |
| Form Factor | Standard, 190 mm |
| Dimensions | 27 × 106 × 190 mm |
| Weight | Approx. 228 g |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 20–95% at 40°C, non-condensing |
| Protection Class | IP20 |
| Operating Altitude | Up to 3,048 m |
| Diagnostics | Run/fault and individual channel status LEDs |
| Local Service Interface | Mini USB |
| Remote Diagnostics | HN800 device diagnostics via SPE |
The specifications above are from ABB’s current hardware-selector documentation. ABB also specifies Category I overvoltage protection for the module power and inputs and lists the module as active.
Application Scenarios & Field Considerations
24 VDC Field Status Acquisition
is intended for conventional 24 VDC discrete signals such as equipment running status, permissive feedback, valve position contacts, alarm contacts, and other binary process states. The 16 individual channels allow several field devices to be brought into a single SD Series I/O location.
DI03
Individually Isolated Digital Inputs
The channel-to-channel isolation is useful where multiple field devices have different wiring references or where isolation between input circuits is required. ABB specifies 1500 V isolation for up to one minute.
Distributed Symphony Plus I/O
operates within the SD Series HN800 I/O architecture. It can be installed on compatible horizontal or vertical mounting bases, allowing the same input module type to be used in different cabinet layouts.
Standard Discrete Control Signals
This module is a better fit for normal process-state monitoring than for event recording. If the control requirement includes millisecond-level SOE timestamps, is the wrong module; ABB identifies DI01 for SOE applications.
Related Products
- ABB DI01 — 16-channel digital input module intended for applications requiring SOE capability.
- ABB DI02 — high-voltage digital input module for 125 VDC or 120 VAC signals; not a substitute for a 24 VDC installation.
- ABB DI04 — another 16-channel digital input module in the SD Series, with a different input specification.
- ABB HBS01-FPH — horizontal full-size MTU compatible with and other SD Series digital/analog I/O modules.
- ABB HBS01-FPN — horizontal mounting/termination base compatible with .
- ABB HBS01-EPD — another compatible SD Series I/O termination base.
- ABB VBS01-FPH — vertical-column MTU supporting and other SD Series I/O modules.
- ABB VBS01-FPN — vertical mounting option for compatible SD Series digital I/O.
- ABB VBS01-EPD — vertical termination base supporting .
Engineer’s Guide — Field Pitfalls to Avoid
1. Do not use for SOE applications.
This is the most important functional limitation. has no SOE capability. If the control narrative requires event timestamping, select the appropriate SOE-capable module instead.
2. Do not confuse with DI02.
is for 24 VDC inputs. DI02 is intended for substantially higher-voltage digital inputs. A visually similar SD Series module does not mean the field wiring is interchangeable.
3. Check the MTU and keying arrangement.
ABB lists specific compatible bases for . The module and termination unit form a physical/electrical assembly, so verify the existing HBS01/VBS01 base before ordering a replacement.
4. Do not assume redundancy.
ABB explicitly lists as non-redundant. If the application requires redundant digital input architecture, use the applicable RDI module family rather than simply installing two modules.
5. Check the actual field voltage under load.
The nominal input is 24 VDC, with ABB specifying 19.5 VDC for the ON threshold and 18.0 VDC for the OFF threshold. Long field cables, contact resistance, and power-distribution losses can matter in marginal installations.
6. Do not assume every 24 VDC digital input module is equivalent.
DI01, , and other SD Series input modules can look similar while having different SOE, redundancy, or signal-handling capabilities. Match the module to the I/O definition and control-system configuration.
FAQ
What is ABB ?
ABB is a 16-channel 24 VDC digital input module for the Symphony Plus SD Series I/O system. Each channel is individually channel-to-channel isolated.
How many inputs does have?
provides 16 digital input channels. ABB specifies 24 VDC digital input signals for all 16 channels.
Does ABB support SOE?
No. does not support Sequence of Events. ABB identifies DI01 as the appropriate module where SOE functionality is required.
What is the input voltage of ?
The specified field signal is 24 VDC. ABB gives an ON threshold of 19.5 VDC and an OFF threshold of 18.0 VDC.
Is each input isolated?
Yes. ABB specifies individual channel-to-channel isolation and a galvanic field-signal-to-logic isolation rating of 1500 V for up to one minute.
Which mounting bases are compatible with ?
ABB lists HBS01-FPH, HBS01-FPN, HBS01-EPD, VBS01-FPH, VBS01-FPN, and VBS01-EPD among the compatible SD Series termination units. The exact base should be checked against the cabinet’s existing mounting orientation and field-wiring arrangement.
Is a redundant I/O module?
No. ABB lists the redundancy characteristic as No. For redundant digital input applications, the applicable RDI module family should be evaluated instead.
What should be verified before purchasing a replacement ?
Confirm , the Symphony Plus SD Series platform, 24 VDC field signal requirement, compatible MTU, HN800 architecture, and whether the application actually requires SOE or redundancy. Also verify the physical condition and revision of the replacement unit before installation.
