Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | PPD539 A102 |
| Order Number | 3BHE039770R0102 |
| Product Type | AC 800PEC Controller Device |
| Controller Platform | ABB AC 800PEC / PEC800 Mini |
| Processor | Freescale QorIQ P1020 PowerPC 800MHz Dual-Core |
| FPGA | Xilinx Spartan-6 XC6SLX25T |
| Processor Memory | 512MB DDR3 SDRAM with ECC |
| Boot Flash | 4MB SPI NOR Flash |
| Application Flash | 512MB NAND Flash |
| Power Supply | Redundant 24VDC, 20–30VDC range |
| Ethernet Interface | Multiple Ethernet controllers with managed switch |
| Serial Communication | RS-485 Modbus interface |
| CAN Interface | 1 × CANopen |
| Optical Links | 6 independent 10MBaud optical links |
| Digital Inputs | 16 channels |
| Digital Outputs | 16 channels |
| Analog Inputs | 4 channels |
| Dimensions | Approx. 147 × 141.5 × 72.9 mm |
| Weight | Approx. 0.85 kg |
| Operating Temperature | -25°C to +70°C |
Product Introduction

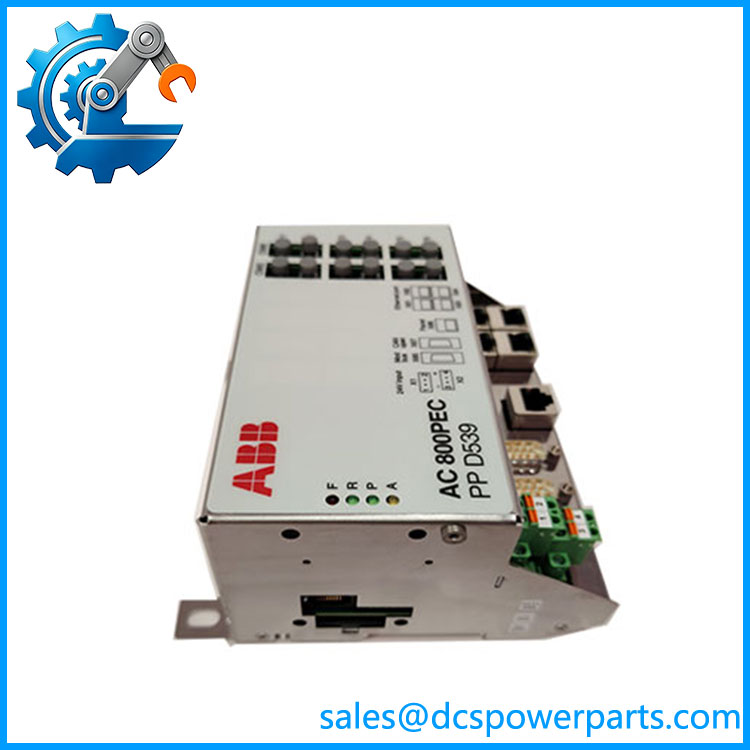

ABB PPD539 A102 3BHE039770R0102 Overview
The ABB PPD539 A102 3BHE039770R0102 is an AC 800PEC controller device designed for high-speed industrial control applications, particularly power electronics and excitation systems. It combines a PowerPC processor, FPGA logic, communication interfaces, and real-time control capability in a compact controller platform.
The ABB PPD539 A102 3BHE039770R0102 is used where fast control response, deterministic processing, and communication with converter hardware are required. It is not a standard PLC CPU replacement; it belongs to ABB’s power electronics control family and requires matching firmware, engineering configuration, and connected PEC hardware.
PPD539
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A generator excitation system begins showing unstable voltage regulation after years of operation. The power stage is healthy, but the controller cannot execute the required control loop correctly.
This is where AC 800PEC controllers are critical. They handle fast control calculations between measurement circuits, power semiconductor interfaces, and supervisory systems. A controller replacement that ignores firmware, FPGA configuration, or communication mapping can create a longer outage.
The PPD539 A102 should be treated as part of a complete control package, not as an isolated processor board.
Typical Applications
- Power Generation Plants – Generator excitation control, voltage regulation, and reactive power management.
- Industrial Drives – Converter control applications requiring fast processing and precise switching control.
- Renewable Energy Systems – Power conversion equipment, grid interface control, and energy management systems.
- Large Industrial Facilities – Specialized power electronics control cabinets and converter systems.
Technical Pitfalls to Avoid
- Verify Firmware and FPGA Configuration
The PPD539 A102 relies on application-specific firmware and FPGA configuration. A hardware match alone does not guarantee correct operation.
- Confirm Optical Communication Setup
The controller uses optical links for communication with connected modules. Incorrect fiber connection or damaged optical interfaces can appear as controller failure.
- Backup Existing Parameters Before Replacement
Record controller configuration, application files, and communication settings before removing the original module.
