ABB CRBX01 2VAA008424R1 | Compact Remote Bus Extender Communication Module for SD Series

Description

Key Technical Specifications

Product Introduction

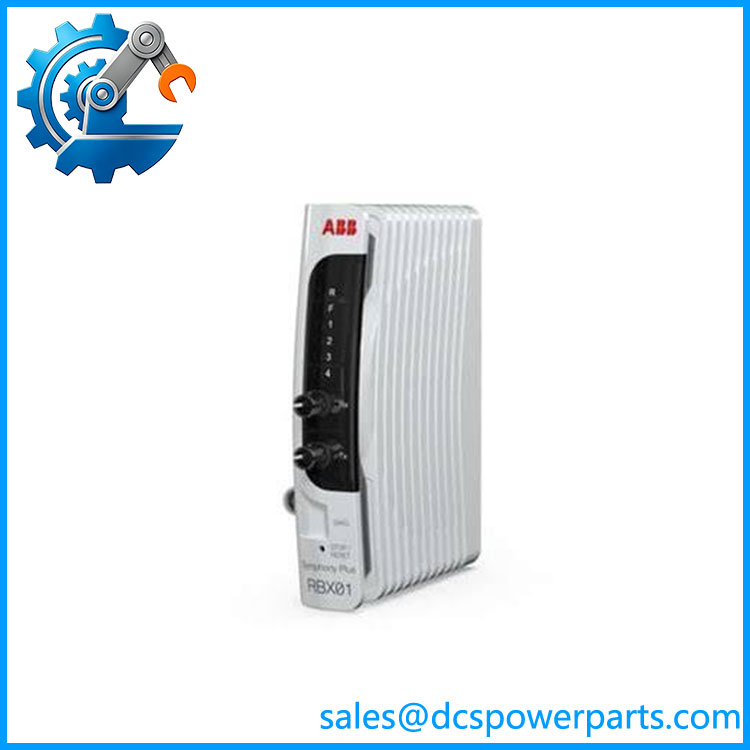

ABB CRBX01 2VAA008424R1 Product Introduction

ABB CRBX01 2VAA008424R1 is a compact remote bus extender designed for ABB Symphony Plus control system architectures. It operates as a fiber optic repeater, extending communication distance between control modules and remote I/O devices while maintaining data integrity across industrial environments.

The main purpose of ABB CRBX01 2VAA008424R1 is supporting distributed control installations where remote I/O placement requires longer communication distances or better electrical isolation. Before replacement, confirm fiber type, remote bus configuration, connected I/O hardware, and the complete communication path.

CRBX01 2VAA008424R1

Application Scenarios & Field Pitfalls (The Engineer’s Perspective)

Engineering Pain Point

A power plant expansion adds remote I/O cabinets several hundred meters away from the main control room. Traditional copper communication links begin showing intermittent faults caused by electrical interference, grounding differences, or long cable distances.

This is where fiber-based bus extension becomes practical. The communication layer must remain stable because a remote I/O communication failure can remove multiple field signals from the control system.

Typical Applications

• Power Generation – Remote I/O communication for turbine auxiliaries, boiler systems, and plant balance equipment.
• Water Treatment – Distributed pump stations and remote instrumentation cabinets connected to central control rooms.
• Oil & Gas – Field junction box communication for separated process units and utility areas.
• Chemical Processing – Remote control panels requiring fiber isolation between process areas and central DCS rooms.

Technical Pitfalls to Avoid

1. Verify Fiber Specification Before Installation
   Fiber type, connector style, and transmission distance must match the installed system design. Incorrect fiber selection can create communication loss.
2. Check Complete Bus Topology
   The CRBX01 is not an independent controller or I/O module. It depends on the correct ABB communication architecture, connected remote bus devices, and system configuration.
3. Inspect Optical Connections During Troubleshooting
   Fiber contamination is a common field issue. Dirty connectors, damaged fibers, or incorrect TX/RX connections can appear as module communication failures.

Related Products

• ABB RMU610 2VAA008425R1
  Mounting base designed for CRBX01 installation. Used to provide the mechanical connection and system integration interface for the remote bus extender.
• ABB Symphony Plus SD Series I/O Modules
  Remote I/O hardware family that communicates through the bus architecture supported by .
• ABB PNI800
  Plant Network Interface module used in ABB Symphony Plus environments for communication between system networks and control components.
• ABB S+ HRBX01K02 Kit
  Redundant remote bus extender package containing multiple units and supporting hardware for high-availability applications.
• ABB Symphony Plus DCS Platform
  Distributed control system platform used in power generation, water, and process industries where remote I/O communication is required.
• ABB SD Series Remote I/O System
  Modular I/O platform designed for distributed signal acquisition and control applications.
• ABB AC 800M Controller Family
  Controller platform used in various ABB automation architectures. Compatibility must be verified because belongs to specific ABB communication environments.
• ABB S800 I/O System
  ABB remote I/O product family with different communication interfaces. Do not assume direct interchangeability with .
