Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | 5SHY4045L0001 |
| Material Number | 3BHB018162R0001 |
| Product Type | IGCT Power Semiconductor Module |
| Semiconductor Technology | Integrated Gate-Commutated Thyristor (IGCT) |
| Voltage Rating | 4500V |
| Current Rating | Approx. 4000A |
| Application Platform | ABB ACS6000 Medium Voltage Drives |
| Converter Topology | Three-level Voltage Source Inverter (VSI) applications |
| Switching Frequency | Medium frequency applications (typically below 1kHz) |
| Gate Drive Interface | ABB dedicated IGCT gate driver unit |
| Typical Gate Unit | GVC750BE101 |
| Cooling Method | Forced air or liquid cooling depending on converter design |
| Installation | Power converter cabinet / IGCT phase module assembly |
| Application | Medium voltage motor drives, industrial converters, power conversion systems |
| Operating Environment | Industrial power electronics cabinet |
Product Introduction
ABB 5SHY4045L0001 3BHB018162R0001 Overview
The ABB 5SHY4045L0001 3BHB018162R0001 is a high-power IGCT module designed for ABB medium voltage converter systems. It is a key switching component inside power converter assemblies, controlling high-energy electrical switching operations required for large motor drives and industrial power conversion equipment.
The ABB 5SHY4045L0001 3BHB018162R0001 is commonly associated with ABB ACS6000 medium voltage drive platforms, where IGCT technology is used for efficient control of multi-megawatt motors. The module works together with dedicated gate drive electronics, such as the GVC series gate control units, to provide accurate switching control and status feedback from the power stage.
Unlike conventional PLC or DCS modules, the ABB 5SHY4045L0001 3BHB018162R0001 belongs to the power conversion layer. A failure in this component can directly affect drive availability, converter operation, and motor control performance. Replacement requires checking the complete converter configuration, gate unit compatibility, cooling arrangement, and hardware revision.

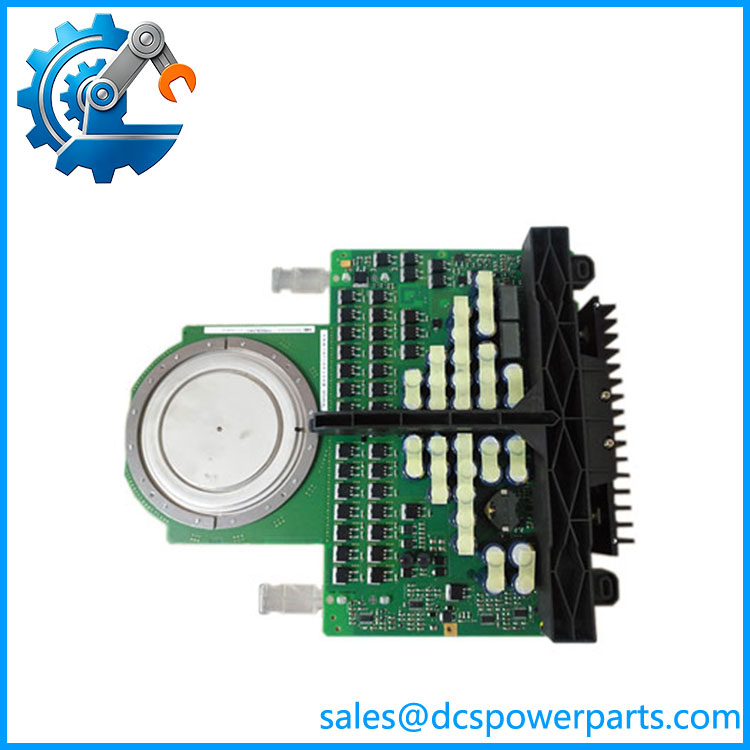

5SHY4045L0001 3BHB018162R0001
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A medium voltage drive trips during heavy load operation. The control system remains active, but the converter reports power stage faults such as overcurrent, gate communication loss, or phase imbalance.
Engineers often begin troubleshooting from the controller side. However, in IGCT-based systems, the fault path includes several layers:
- Controller commands
- Pulse generation electronics
- Gate drive unit
- IGCT module
- Cooling system
- DC link and bus components
The ABB 5SHY4045L0001 3BHB018162R0001 sits at the final switching stage. Correct diagnosis requires checking the complete converter chain.
Typical Applications
Mining and Heavy Industry
Used in large ABB medium voltage drives controlling:
- Grinding mills
- Crushers
- Conveyor systems
- Mine ventilation equipment
Cement and Mineral Processing
Applied in high-power motor applications including:
- Kiln drives
- Raw material mills
- Large process fans
Oil, Gas, and Chemical Plants
Used for:
- Large compressor drives
- High-capacity pumps
- Process machinery requiring variable speed control
Power Generation Facilities
Applied in:
- Auxiliary motor drives
- Converter systems
- Industrial power conversion equipment
Technical Pitfalls to Avoid
1. Match the Complete IGCT Assembly
The IGCT module should be matched with the correct gate drive unit and converter design. The semiconductor module alone does not define system compatibility.
2. Inspect Gate Drive Hardware
A damaged gate unit can create symptoms similar to an IGCT failure. Check related components such as:
- GVC750BE101 gate drive unit
- Fiber optic communication paths
- Gate monitoring signals
3. Verify Cooling Performance
IGCT modules operate under significant thermal stress. Before replacing the module, inspect:
- Cooling fans or liquid cooling circuits
- Heat sink condition
- Temperature feedback sensors
4. Check Converter Protection History
Review fault logs before installation. Repeated overcurrent or short-circuit events may indicate a system-level problem rather than a single failed semiconductor.
