Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Main Model | 5SHY3545L0016 |
| Associated Part Number | 3BHB019719R0101 |
| Cooling Component | GVC736BE101 |
| Semiconductor Component | 5SXE06-0160 |
| Product Type | IGCT Power Semiconductor Module Assembly |
| Semiconductor Technology | Integrated Gate Commutated Thyristor |
| Voltage Rating | Approx. 4500 V class |
| Current Capability | High-current converter application |
| Gate Control | Dedicated gate unit interface |
| Application Voltage Range | Medium-voltage power conversion systems |
| Switching Application | High-power inverter/converter switching |
| Installation | ABB power converter cabinets |
| Cooling Method | Dedicated cooling interface assembly |
| Typical System | ABB medium-voltage drive and converter platforms |
Product Introduction

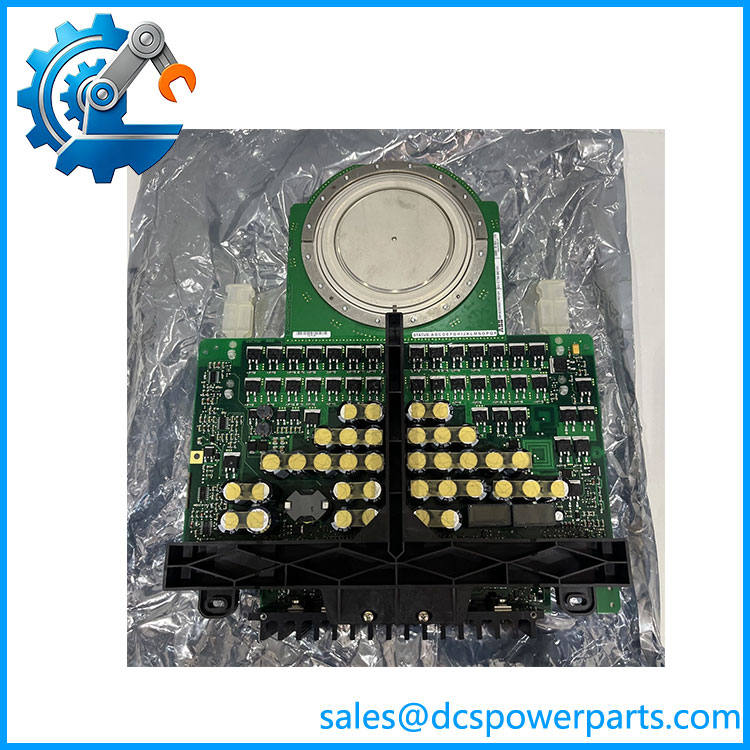

ABB 5SHY3545L0016 3BHB019719R0101 Overview
The ABB 5SHY3545L0016 3BHB019719R0101 is a high-power IGCT semiconductor assembly designed for ABB medium-voltage power conversion equipment. It is part of ABB’s power electronics component family used in applications requiring controlled switching of large electrical currents, including industrial drives, converter systems, and high-power energy conversion equipment.
The ABB 5SHY3545L0016 functions as the main IGCT switching element within the converter power stage. Unlike conventional thyristor solutions, IGCT technology integrates high-current switching capability with fast turn-off control, allowing converter systems to achieve precise electrical control during demanding operating conditions.
The ABB 3BHB019719R0101 gate unit works together with the IGCT module to provide the required gate control signals. Proper coordination between the semiconductor device and gate driver is essential because incorrect triggering, gate faults, or communication issues can cause converter trips or semiconductor damage.
The ABB GVC736BE101 provides the required mechanical and thermal interface for the power module assembly. Effective heat transfer is critical in medium-voltage converters because semiconductor junction temperature directly affects operating reliability and service life.
The ABB 5SXE06-0160 is associated with ABB high-power semiconductor assemblies and supports the switching architecture used in power conversion applications.
The complete ABB 5SHY3545L0016 3BHB019719R0101 GVC736BE101 5SXE06-0160 assembly is typically found in equipment where converter performance directly affects motor operation, grid interaction, or industrial process continuity.
When replacing this assembly, engineers should verify the complete converter design, semiconductor revision, gate unit compatibility, cooling arrangement, mounting pressure requirements, and stored drive parameters. Power semiconductor replacement is not only a hardware exchange; incorrect matching can result in unstable switching behavior or repeated converter faults.
5SHY3545L0016
Application Scenarios & Field Considerations
Engineering Pain Point
Common failures involving IGCT assemblies include:
- Converter overcurrent trips
- DC link faults
- Semiconductor overheating
- Gate driver alarms
- Phase module failures
Possible causes include:
- Aging semiconductor junctions
- Cooling system degradation
- Incorrect gate triggering
- Excessive switching stress
- Poor mechanical contact pressure
Recommended troubleshooting steps:
- Check converter fault history
- Inspect gate unit diagnostics
- Measure cooling performance
- Verify DC bus conditions
- Check semiconductor mounting condition
- Compare replacement module specifications
The ABB 5SHY3545L0016 is a critical power stage component, but converter reliability depends on the complete electrical, thermal, and control system.
Typical Applications
Medium Voltage Drives
Used for:
- Large motor speed control
- Pump and fan applications
- Mining equipment drives
- Marine propulsion systems
Industrial Power Converters
Applied for:
- High-power AC/DC conversion
- Energy conversion systems
- Grid-connected converters
Renewable Energy Systems
Used for:
- Wind power converters
- Large solar inverter systems
- Energy storage conversion equipment
Heavy Industry
Applied in:
- Steel mills
- Cement plants
- Mining operations
- Large compressor systems
Technical Pitfalls to Avoid
1. Verify Complete Part Matching
Confirm:
- 5SHY3545L0016 revision
- 3BHB019719R0101 gate unit type
- GVC736BE101 cooling configuration
- Converter model compatibility
2. Check Mechanical Installation
Inspect:
- Mounting pressure
- Contact surface condition
- Thermal compound requirements
- Cooling interface alignment
3. Inspect Related Electronics
Check:
- Gate driver condition
- Fiber communication
- Control board diagnostics
- Protection circuits
A damaged IGCT may be caused by another failed converter component.
4. Commission Carefully After Replacement
Verify:
- Converter insulation condition
- Gate pulse response
- Current sharing
- Temperature rise
- Drive fault history
