Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | 5SHX2645L0004 |
| ABB Order Number | 3BHL000389P0104 |
| Manufacturer | ABB |
| Product Type | IGCT Power Semiconductor Module |
| Technology | Integrated Gate Commutated Thyristor |
| Voltage Class | 4.5 kV class |
| Silicon Wafer Diameter | 91 mm |
| Rated Turn-Off Current | Approx. 1850 A |
| Maximum Turn-Off Current | Approx. 3700 A |
| Charging Voltage | Approx. 4.4 kV |
| Peak Blocking Voltage | Approx. 9.0 kV |
| Cooling Method | Forced/controlled air cooling depending on converter design |
| Application | Medium-voltage drives, converters, power electronics |
| Compatible Gate Unit | GVC707AE01 family |
| Related Part | 3BHB003154R0101 / 5SXE04-0150 |
| Installation | Power stack assembly |
| Weight | Approx. 2.6 kg |
| Operating Environment | Industrial power cabinet |
Product Introduction

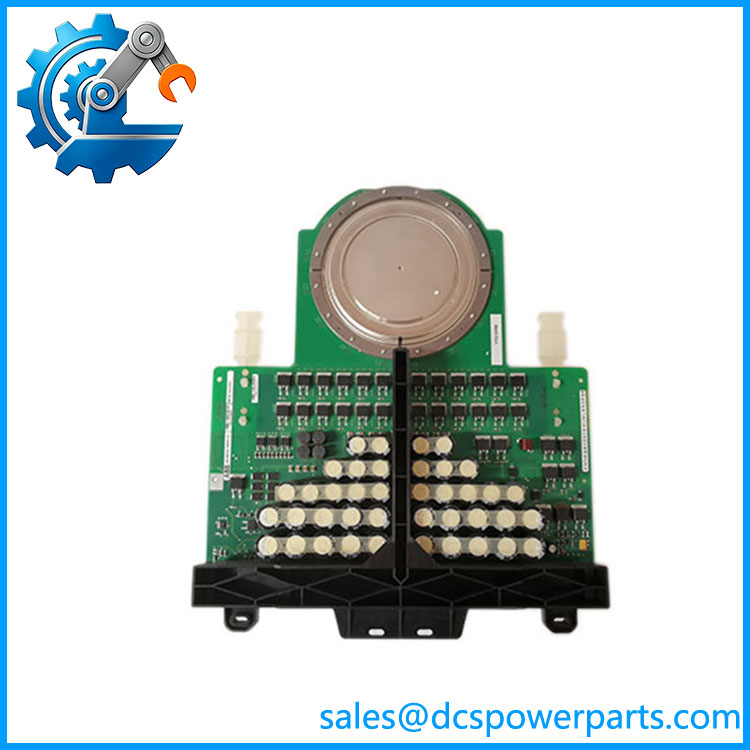

ABB 5SHX2645L0004 3BHL000389P0104 Product Introduction
ABB 5SHX2645L0004 3BHL000389P0104 is a high-power IGCT semiconductor module designed for ABB medium-voltage power conversion equipment. The device is part of ABB’s IGCT technology platform, providing high-speed switching capability for converter and inverter applications where high voltage and high current control are required.
The ABB 5SHX2645L0004 3BHL000389P0104 is commonly installed in ACS6000 drive systems and related power electronic assemblies. It works together with gate control units such as ABB GVC707AE01 and associated interface components to control switching operations inside the converter power stage.
The device is not a standalone control module. Replacement requires verification of the complete power stack design, including gate driver compatibility, cooling arrangement, mounting pressure, snubber components, and protection circuits.
5SHX2645L0004 3BHL000389P0104 3BHB003154R0101 5SXE04-0150/GVC707AE01
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A medium-voltage drive trips during acceleration or heavy load operation. Diagnostic information points toward converter cell faults, but the actual failure may involve the IGCT device, gate unit, cooling system, or DC-link conditions.
Power semiconductor failures are rarely isolated events. An IGCT replacement without checking the surrounding converter circuit can result in repeated failures.
Typical Applications
- Metallurgy Industry
Medium-voltage drives for rolling mills, crushers, and large production equipment. - Power Generation
Pump drives, fan drives, and auxiliary motor control systems. - Oil & Gas
Compressor and high-power motor applications requiring controlled acceleration and energy management. - Marine and Industrial Propulsion
High-power converter systems using medium-voltage motor drives.
Technical Pitfalls to Avoid
1. Verify Complete IGCT Assembly Compatibility
The 5SHX2645L0004 must match the installed gate unit, mechanical mounting arrangement, and converter design. Similar-looking IGCT devices are not always electrically interchangeable.
2. Inspect Gate Drive Circuits
A damaged gate unit such as the related GVC707AE01 assembly can destroy a replacement IGCT during startup. Always test gate pulses and protection circuits before energizing.
3. Check Cooling and Mechanical Installation
IGCT devices depend heavily on correct thermal transfer. Incorrect clamping force, contaminated cooling surfaces, or poor airflow can cause overheating and early failure.
4. Investigate Root Cause Before Replacement
Common causes include:
- DC-link overvoltage
- Cooling system failure
- Gate driver malfunction
- Snubber circuit degradation
- Excessive switching stress
Related Products
- ABB 3BHB003154R0101 / 5SXE04-0150 / GVC707AE01
Gate unit assembly associated with ABB IGCT power stacks. Provides the triggering and control interface required for IGCT switching operation. - ABB 5SHX1445H0001
Lower-voltage IGCT module used in ABB converter applications. - ABB 5SHY4045L0006
Higher-power IGCT-related device used in large ABB converter systems. - ABB 5SHY3545L0014
IGCT semiconductor component used in ABB medium-voltage drive power assemblies. - ABB GVC736BE101
Related ABB gate control assembly used in IGCT converter systems. - ABB ACS6000 Medium Voltage Drive System
Converter platform using IGCT power modules for large motor control applications. - ABB PCS6000 Power Conversion System
Power electronic platform using IGCT-based converter technology. - ABB 3BHL Series IGCT Components
Family of semiconductor devices and accessories used in ABB high-power converter equipment.
