Description
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | 500SCM01 |
| Ordering Number | 1MRE450004R1 |
| Product Type | Star Coupler Module |
| Application | REB500 / REB500sys |
| Main Function | Electrical-to-optical process-bus conversion |
| Optical Interfaces | 5 transmit/receive pairs |
| Connected Units | Up to 5 bay units per module |
| Transmission Medium | Optical fiber |
| Electrical Interface | REB500 process bus |
| Status Indication | Individual transmitter/receiver LEDs |
| Installation | REB500 central unit |
| Primary Application | Busbar protection |
| Power Supply | System-dependent; verify against ABB hardware documentation |
ABB’s REB500 manual specifically describes the 500SCM01 as a star coupler that converts electrical process-bus signals to optical signals and vice versa. It provides five optical transmit/receive pairs for connection to five bay units.
Product Introduction

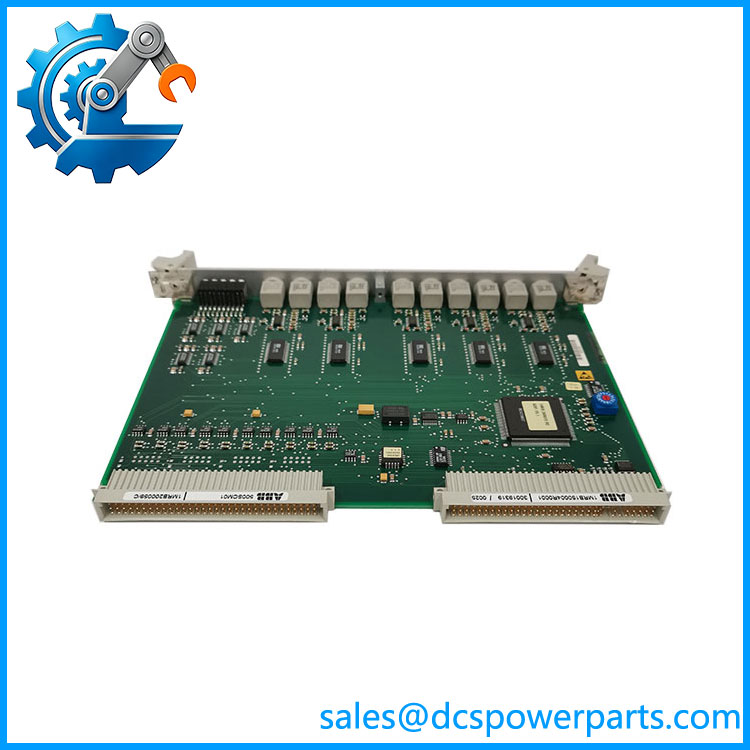

The ABB 500SCM01 1MRE450004R1 is a star coupler module used in ABB REB500 and related busbar protection architectures. Its job is to provide the optical communication interface between the central unit and distributed bay units, allowing process-bus information to travel over fiber-optic connections. ABB documentation identifies the 500SCM01 specifically as the Star Coupler Module.
The ABB 500SCM01 converts the electrical process-bus signals from the central protection system into optical signals for transmission to the bay units, and performs the reverse conversion for signals returning from the field-side protection equipment. This architecture separates the protection communication paths from conventional copper wiring and allows the bay units to be connected through dedicated fiber-optic links.
500SCM01 1MRE450004R1
The ABB 1MRE450004R1 version provides five optical transmit/receive pairs. ABB’s REB500 documentation states that these pairs are connected to five bay units by optical-fiber cables. Each transmitter and receiver has an associated yellow LED, allowing technicians to observe communication activity during commissioning and troubleshooting.
The 500SCM01 is therefore a communication infrastructure component rather than a general-purpose PLC communication card. Its compatibility should be evaluated specifically against the system architecture, bay-unit configuration, fiber type, and installed hardware revision.
Main Features & Field Considerations
Optical process-bus conversion
The primary function is electrical/optical conversion for the process bus. This makes the module an important communication point between the central unit and distributed protection bay units.
Five optical connections
Each 500SCM01 provides five optical transmit/receive pairs. The number of connected bay units should therefore be checked against the actual project configuration before replacement.
Communication diagnostics
The individual transmitter and receiver LEDs are useful during troubleshooting. ABB states that both corresponding indicators should illuminate when the protection system is operating correctly.
Fiber-optic troubleshooting
A communication fault should not automatically be attributed to the SCM01. Check:
- Fiber connector cleanliness
- Fiber continuity
- Correct TX/RX routing
- Optical cable damage
- Bay-unit communication status
- SCM01 LED indications
- Central-unit configuration
Replacement checks
Before replacing an ABB 500SCM01 1MRE450004R1, verify:
- Complete part number
- 1MRE450004R1 marking
- Hardware revision
- Number of connected bay units
- Fiber-optic connector arrangement
- Fiber type and routing
- Central-unit configuration
- Bay-unit configuration
- Existing LED status
Typical Applications
The ABB 500SCM01 is primarily associated with:
- busbar protection
- REB500sys protection systems
- High-voltage substations
- Medium/high-voltage switchgear protection
- Distributed bay-unit architectures
- Fiber-optic protection communication
Procurement Note
For ABB 500SCM01 1MRE450004R1, the exact ordering number should be matched rather than substituting another 500SCM01 variant. ABB documentation also lists another SCM01 identification, 1MRB150004R0001 / 1MRB200059/C, as a Star Coupler Module, so the suffix and complete ordering number matter.
For a live installation, record the fiber connections, bay-unit assignments, and LED status before removing the existing module. This provides a useful baseline when commissioning the replacement.
