Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | GFD233A103 |
| Order Number | 3BH022294R0103 / 3BHE022294R0103 |
| Product Type | Excitation Interface / Control Module |
| Platform | ABB UNITROL 6000 / AC800PEC |
| Application | Static excitation and power control systems |
| Main Function | Control communication and system interface |
| Communication Interface | System-dependent industrial communication interface |
| Fiber Interface | Available on A103 configuration variants |
| Installation | ABB excitation cabinet / PBA control rack |
| Mounting Type | Plug-in control module |
| Power Supply | Supplied through host control system |
| Operating Environment | Industrial control cabinet environment |
| Typical Application | Generator excitation, converter control, power electronics systems |
Product Introduction
ABB GFD233A103 3BH022294R0103 Overview
The ABB GFD233A103 3BH022294R0103 is an interface and communication control module used in ABB high-power excitation and power electronics control systems. It belongs to the ABB UNITROL 6000 and AC800PEC control ecosystem, where dedicated electronic modules manage generator excitation, system communication, and real-time control coordination.
The ABB GFD233A103 is designed to support communication between the excitation control hardware and external automation systems. In a typical UNITROL 6000 installation, excitation regulation functions are distributed among several specialized modules, with interface modules such as the GFD233A103 responsible for transferring operational data, diagnostics, and control information between system layers.
The ABB GFD233A103 3BH022294R0103 is commonly installed in power generation applications where reliable communication between excitation equipment and plant control systems is required. These applications include hydroelectric generators, thermal power plants, gas turbine generator packages, and large industrial synchronous machines.
The ABB 3BHE022294R0103 identification is associated with the same hardware family and should be checked carefully against the installed cabinet documentation. ABB excitation systems often contain multiple similar-looking boards, and replacement compatibility depends on the exact UNITROL version, firmware configuration, rack position, and communication architecture.
The is a system-specific component rather than a general-purpose PLC communication module. Before replacement, engineers should confirm the excitation controller type, connected control modules, network configuration, parameter backup, and commissioning records.
For long-service excitation systems, maintaining the original hardware configuration is often preferred because excitation parameters, protection settings, and generator operating characteristics are closely linked to the installed controller platform.

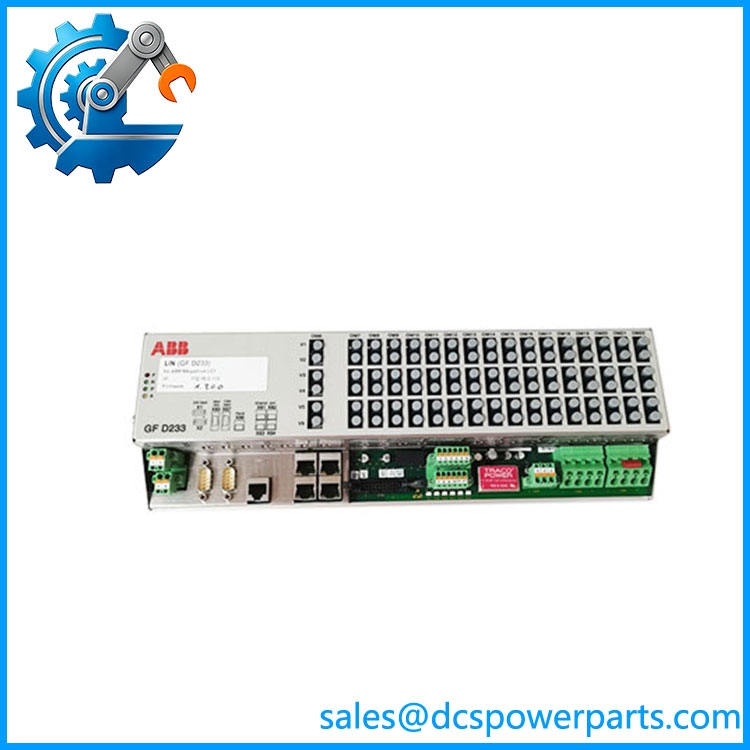

GFD233A103 3BH022294R0103
Application Scenarios & Field Considerations
Engineering Pain Point
Typical issues related to excitation interface modules include:
- Loss of communication with plant DCS
- Missing excitation status data
- Interface communication alarms
- Generator control system warnings
- Remote monitoring failures
The may be involved, but engineers should also inspect:
- Fiber optic connections
- Communication settings
- Controller power supply
- Related AC800PEC modules
- Network hardware
Recommended troubleshooting steps:
- Check module diagnostic LEDs
- Verify communication link status
- Inspect fiber connectors and cables
- Confirm controller configuration
- Compare replacement module revision
- Restore stored system parameters
The operates as part of a complete excitation control architecture. Correct diagnosis requires checking the complete communication and control chain.
Typical Applications
Generator Excitation Systems
Used for:
- Automatic voltage regulation systems
- Reactive power control
- Excitation monitoring
- Generator protection coordination
Hydroelectric Power Plants
Applied for:
- Large synchronous generator excitation
- Grid voltage support
- Long-term generator control systems
Thermal and Gas Power Plants
Used for:
- Turbine generator excitation
- Power factor regulation
- Electrical system stability
Industrial Power Conversion Systems
Applied for:
- High-power rectifier systems
- Converter control platforms
- Specialized power electronics applications
Technical Pitfalls to Avoid
1. Confirm Exact Hardware Identification
Verify:
- model
- 3BH022294R0103 / 3BHE022294R0103 number
- Hardware revision
- UNITROL system version
Similar ABB excitation boards may not be interchangeable.
2. Check Communication Configuration
Confirm:
- Fiber interface type
- Network parameters
- DCS communication settings
- Controller addressing
3. Review Related Modules
Inspect:
- Excitation controller modules
- AC800PEC processor units
- Power converter interfaces
- Communication adapters
A communication fault may originate from another module.
4. Preserve Existing Settings
Before replacement:
- Backup parameters
- Record module configuration
- Document wiring and fiber connections
- Verify commissioning data
