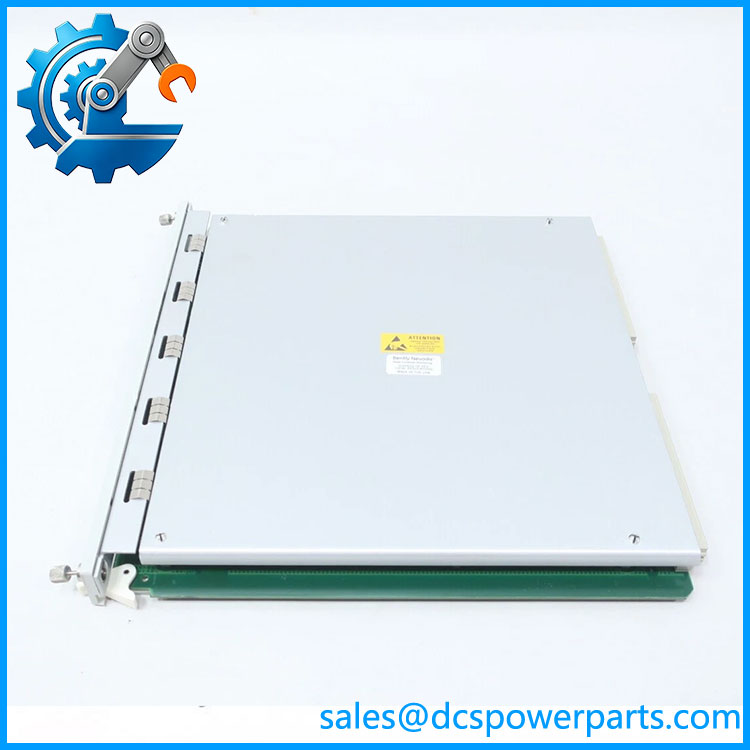

Bently Nevada 3500/62 163179-03 + 136294-01
Product Introduction
When a rotating machine protection rack needs continuous supervision of pressure, flow, temperature, level, or another transmitter-derived process value, the input architecture matters as much as the monitor itself. The Bently Nevada 3500/62 163179-03 provides six-channel process-variable monitoring within the 3500 machinery protection platform, while the 136294-01 supplies the isolated +4–20 mA input interface with internal terminations.
This combination is particularly relevant when maintaining an installed 3500 rack where the existing field wiring and internal termination arrangement must remain unchanged. The isolated I/O option provides 500 V isolation for the isolated current-input architecture, with 50 Ω input impedance. For procurement, do not order only by the generic “3500/62” designation: confirm the exact I/O option, monitor part number, firmware/configuration and termination arrangement against the installed rack.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Series | 3500 Machinery Protection System |
| Monitor Model | 3500/62 |
| Monitor Part Number | 163179-03 |
| I/O Module | 136294-01 |
| Configured Model | 3500/62-03-00 |
| Product Type | Process Variable Monitor |
| Number of Channels | 6 |
| I/O Type | Isolated +4–20 mA with internal terminations |
| Current Input | +4–20 mA DC |
| Voltage Input Capability | Proportional voltage input architecture supports -10 to +10 VDC, depending on installed I/O configuration |
| Isolated I/O Impedance | 50 Ω |
| Isolated I/O Isolation | 500 V |
| Typical Power Consumption | 7.0 W |
| Accuracy | ±0.33% of full scale typical; ±1% maximum |
| Full-Scale Range | Up to 20,000 configurable units |
| Alarm Setpoints | User-configurable Alert and Danger, including under/over alarm functionality |
| Alert Delay | 1–60 seconds, 1-second increments |
| Danger Delay | 1–60 seconds, 0.5-second increments |
| Operating Temperature | -30°C to +65°C with internal/external termination I/O |
| Front Indicators | OK, TX/RX and Bypass LEDs |
| Installation | 3500 Series rack |
| Configuration | 3500 Configuration Software |
The core electrical specifications above are taken from the published 3500/62 documentation. The monitor supports several I/O variants, so the voltage-input capability should not be interpreted as meaning that every 3500/62 contains the same I/O board. The 136294-01 specifically denotes the isolated +4–20 mA internal-termination configuration.
Major Features / Advantages
Six-Channel Process Variable Monitoring
The 3500/62 is designed as a six-channel monitor for process parameters that are important to rotating machinery operation but are not necessarily direct vibration measurements. Typical inputs include pressure, flow, temperature and level transmitters. This makes the module useful alongside dedicated vibration, position, speed and temperature monitoring cards in a complete 3500 rack.
350062
136294-01 Isolated Current Input Architecture
The 136294-01 is not simply a generic analog input board. It is specifically identified as the Isolated +4–20 mA I/O Module with internal terminations. The isolated version has 500 V isolation and a 50 Ω input impedance. That distinction is important when replacing a failed card because substituting an external-termination or non-isolated version can change the field-wiring arrangement and electrical behavior.
Software-Defined Process Ranges and Alarms
The 3500/62 allows the full-scale range for each channel to be established through 3500 Configuration Software. Alert and Danger setpoints can be configured around the measured process value, with both under-limit and over-limit alarm functions available. Alarm delays are also configurable, allowing the protection strategy to distinguish a genuine process excursion from a short transient.
Internal Terminations Simplify Like-for-Like Replacement
The internal-termination configuration is significant during maintenance. A technician replacing an existing 136294-01 should not assume that any 3500/62 I/O card can be substituted without checking the termination arrangement. Bently Nevada lists 136595-01 and 136603-01 as external termination blocks for configurations that use external terminations, while 136294-01 is explicitly the internal-termination option.
Useful Rack-Level Diagnostics
The front panel provides OK, TX/RX and Bypass indicators. OK provides an operating-status indication, TX/RX indicates communication with other modules in the 3500 rack, and Bypass identifies the process variable monitoring bypass state. These indicators are useful during commissioning and fault isolation because they provide immediate rack-level status without depending entirely on higher-level software.
Practical Procurement Advantage
For a maintenance department, the important purchasing identifier is not simply “3500/62.” The monitor and I/O configuration need to match the existing installation. 163179-03 + 136294-01 gives a much more useful procurement reference because it identifies both the monitor spare and the specific isolated internal-termination I/O architecture. This reduces the risk of receiving a visually similar 3500/62 assembly with a different I/O option.
Application Scenarios & Pain Points
Compressor and Process Skid Monitoring
Compressor packages often use 4–20 mA transmitters for pressure, differential pressure, temperature and flow. The 3500/62 can process these proportional signals and compare them with configured alarm thresholds. The practical issue is usually not the monitor itself—it is confirming that the replacement retains the same I/O configuration and transmitter loop arrangement.
Steam and Gas Turbine Auxiliary Monitoring
Pressure, lube-oil conditions, hydraulic pressure and other process variables can complement dedicated turbine vibration and speed measurements. The 3500/62 is suited to this role because it handles process-variable inputs rather than replacing dedicated dynamic machinery monitors.
Pump and Fan Systems
Where transmitter outputs are already standardized at 4–20 mA, the 136294-01 provides a direct interface for six isolated current-input channels. This can be useful for pumps, fans and balance-of-plant equipment where pressure, flow or temperature excursions need to generate machinery protection alarms.
Legacy 3500 Rack Maintenance
This is where exact part-number discipline becomes important. If the installed system uses 3500/62-03-00 with 136294-01, replacing it with a different 3500/62 I/O option is not automatically equivalent. Check the rack configuration, field wiring, monitor identification and installed firmware before returning the equipment to service.
Related Products
- 3500/62-03-00 — Configured 3500/62 process-variable monitoring arrangement associated with the 136294-01 isolated internal-termination I/O option.
- 136491-01 — -10 to +10 VDC I/O module with internal terminations; different signal architecture from 136294-01.
- 136499-01 — -10 to +10 VDC I/O module with external terminations.
- 136483-01 — Isolated +4–20 mA I/O module with external terminations; electrically related but physically different termination arrangement.
- 137110-01 — 4–20 mA barrier I/O module with internal terminations; intended for a different input architecture.
- 136595-01 — 3500/62 external termination block with terminal-strip connectors.
- 136603-01 — 3500/62 external termination block with Euro-style connectors.
- 3500/65 — 16-channel temperature monitoring module in the same 3500 family, but it is not a substitute for the 3500/62 process-variable monitor.
- 3500/92 — 3500 Series communication gateway; complementary rack-level communications hardware rather than a process-variable input module.
Engineer’s Guide: Field Pitfalls to Avoid
1. Do not confuse the monitor number with the complete configuration.
“3500/62” identifies the monitor family, but the I/O option determines how the field signal is interfaced. For this configuration, verify 163179-03 + 136294-01 rather than purchasing an unspecified 3500/62.
2. Do not substitute external-termination hardware without checking the wiring.
136294-01 is an internal-termination I/O module. Bently Nevada separately lists 136483-01 for isolated 4–20 mA with external terminations. Those are not merely cosmetic variations.
3. Do not connect a raw sensor directly just because the input is called a process-variable channel.
The 136294-01 is intended for isolated 4–20 mA current inputs. If the original transmitter, signal conditioner or loop wiring has changed, verify the actual signal before installing the replacement.
4. Check configuration before commissioning.
The full-scale range and alarm thresholds are software-configured. A replacement module can power up normally while still having an incorrect engineering range or alarm configuration. The monitor’s documented signal-conditioning accuracy is based on the configured full-scale range.
5. Do not assume all 3500/62 environmental figures apply to every I/O option.
The published operating limit is -30°C to +65°C for the internal/external termination configurations, while the internal barrier configuration has a different lower limit. Verify the exact installed I/O type before applying environmental specifications to a cabinet or field enclosure.
6. Verify firmware and rack configuration after replacement.
The datasheet lists 136590-01 as the firmware IC associated with the 3500/62. For a legacy rack, record the existing configuration before removing the failed monitor. Do not treat a visually identical spare as automatically equivalent.
7. Test the complete signal path—not just the card.
For a maintenance replacement, a sensible check is transmitter/loop source → 136294-01 input → 3500/62 displayed process value → configured Alert/Danger status → rack communication. This catches wiring and configuration problems that a simple module power-up test will miss.
FAQ
Is 163179-03 the same thing as 136294-01?
No. 163179-03 is the 3500/62 monitor, while 136294-01 is the isolated +4–20 mA I/O module with internal terminations. Bently Nevada lists them separately in the 3500/62 spare-parts information.
What does the combination 3500/62 + 163179-03 + 136294-01 represent?
For procurement purposes, this combination corresponds to the 3500/62-03-00 configuration: the 3500/62 process-variable monitor fitted with the isolated +4–20 mA internal-termination I/O option. Exact-part references from multiple industrial sources associate 3500/62-03-00 with 136294-01.
How many process variables can the 3500/62 monitor?
The 3500/62 is a six-channel process-variable monitor. It is intended for continuous monitoring of parameters such as pressure, flow, temperature and level.
Can 136294-01 be replaced by 136483-01?
They share the isolated +4–20 mA function, but they use different termination arrangements. 136294-01 has internal terminations, while 136483-01 has external terminations. They should therefore not be treated as interchangeable without checking the installed rack and field-wiring configuration.
What accuracy should I expect from the 3500/62?
The published signal-conditioning specification is within ±0.33% of full scale typical and ±1% maximum, with the specification stated at +25°C. Alarm accuracy is specified separately at within 0.13% of the desired value.
Does the 3500/62 require calibration after installation?
The published documentation states that the full-scale range is established through 3500 Configuration Software and that no calibration is required for the specified signal-conditioning function. That does not eliminate the need to verify the actual transmitter loop, engineering range and alarm configuration after replacement.
What should I verify before purchasing a replacement?
At minimum, verify 3500/62, 163179-03, 136294-01, the internal-termination arrangement, installed firmware/configuration, field signal type, rack position and actual inventory condition. For an installed protection system, a matching part number is only the first check; the replacement should also be functionally tested before being returned to service.
